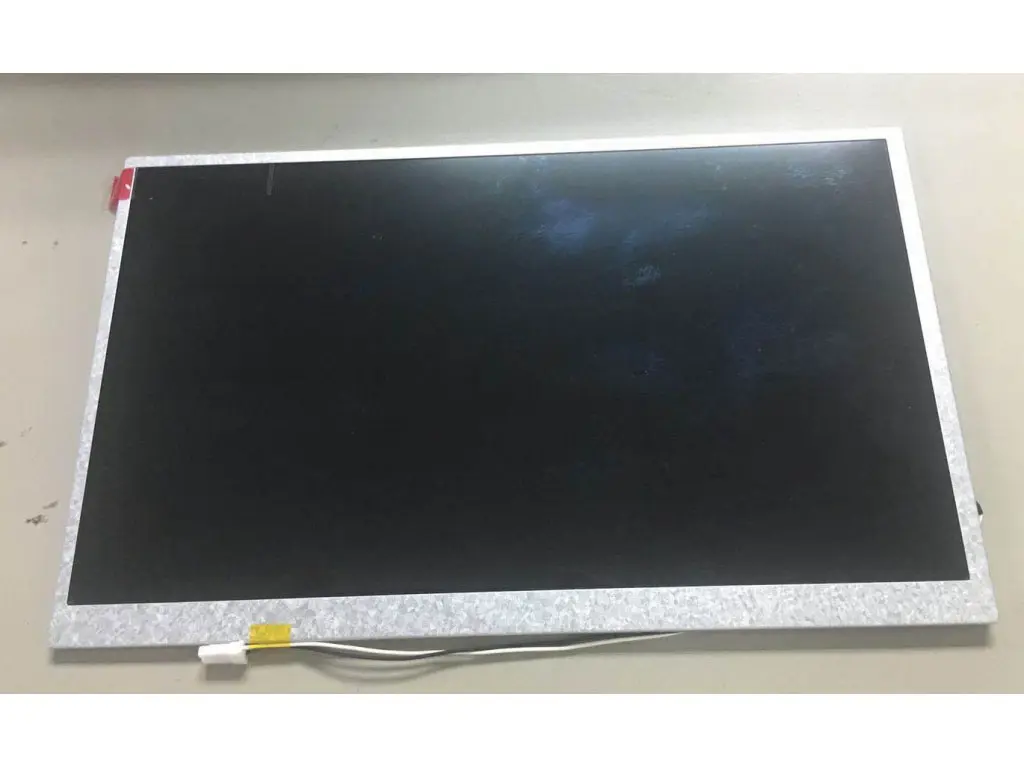

TM101JVHG32-016 TIANMA Original tft lcd module
TM101JVHG32-016 TIANMA Original tft lcd module
Tianma TM101JVHG32-016 is a high-performance 10.1-inch industrial TFT-LCD module engineered for applications requiring high-definition visual precision and long-term environmental stability. It features a native WXGA resolution (1280 x 800) and a 16:10 widescreen aspect ratio, providing a modern display format for data-intensive layouts. This module is distinguished by its SFT (Super Fine TFT) technology, which offers ultra-wide viewing angles (85°/85°/85°/85°) and minimizes color shifting, ensuring clear visibility from any position. With a high brightness of 500 cd/m² and a high contrast ratio, it delivers vivid and crisp imagery even in high-ambient light settings. Utilizing a standard LVDS (1 ch, 8-bit) interface, it supports 16.7 million colors and maintains a slim mechanical profile. Designed for 24/7 industrial use, it boasts an extended operating temperature range of -20°C to +70°C and a long-life LED backlight system, making it a premier solution for ruggedized systems and mission-critical displays.
| Parameter | Details |
| Manufacturer | Tianma Microelectronics |
| Model Name | TM101JVHG32-016 |
| Screen Size | 10.1 inch |
| Resolution | 1280 × 800 (WXGA) |
| Display Mode | SFT (IPS), Normally Black, Transmissive |
| Luminance | 1100 cd/m² (Typical) |
| Contrast Ratio | 800:1 (Typical) |
| Interface Type | LVDS (1 ch, 8-bit) |
| Viewing Angle | 85/85/85/85 (U/D/L/R) |
| Operating Temp | -30°C ~ 85°C |
| Storage Temp | -40°C ~ 90°C |
TM101JVHG32-016 TIANMA lcd display panel Highlights：
Sunlight Readable Display: With a massive 1100-nit luminance, this panel is fully legible under direct sunlight, making it ideal for outdoor applications.
Extreme Thermal Resilience: Boasts an expanded operating temperature range of -30°C to +85°C, ensuring performance in the harshest climates.
Wide-Angle IPS/SFT Technology: Provides consistent color and clarity from a full 170-degree range, crucial for multi-operator monitoring.
High Contrast & Definition: The WXGA resolution paired with an 800:1 contrast ratio ensures sharp, high-impact visuals for critical data.
Automotive-Grade Reliability: Engineered for high durability against vibration and mechanical stress, common in heavy machinery and transport.
TM101JVHG32-016 TIANMA lcd display panel Applications：
Construction & Agricultural Machinery Dashboards
Outdoor EV Charging Station Interfaces
Marine Navigation & Nautical Equipment
Outdoor Digital Signage & Wayfinding
Rugged Military & Field-Service Tablets
FAQ:
Q1:Is this TM101JVHG32-016 guaranteed to be a TIANMA original? Is it Grade A quality?
A1:We guarantee that every panel we provide is 100% original from TIANMA. The products meet Grade A standards with no dead pixels or scratches, and undergo strict quality inspections before leaving the factory.
Q2:What is the resolution of this 10.1-inch module? What interface does it use for connection?
A2:The module has a resolution of 1280×800 (WXGA) and utilizes an LVDS interface. It features high contrast and wide viewing angles, making it perfect for industrial-grade applications.
Related Product Links：TM0B0TDHG01-42 TIANMA ndustrial lcd panel
