TM070RDHG25-00 TIANMA 7 inch  800*480 lcd display screens
TM070RDHG25-00 TIANMA 7 inch 800*480 lcd display screens
Price: $125.00
$120.00/ piece
Add to cart

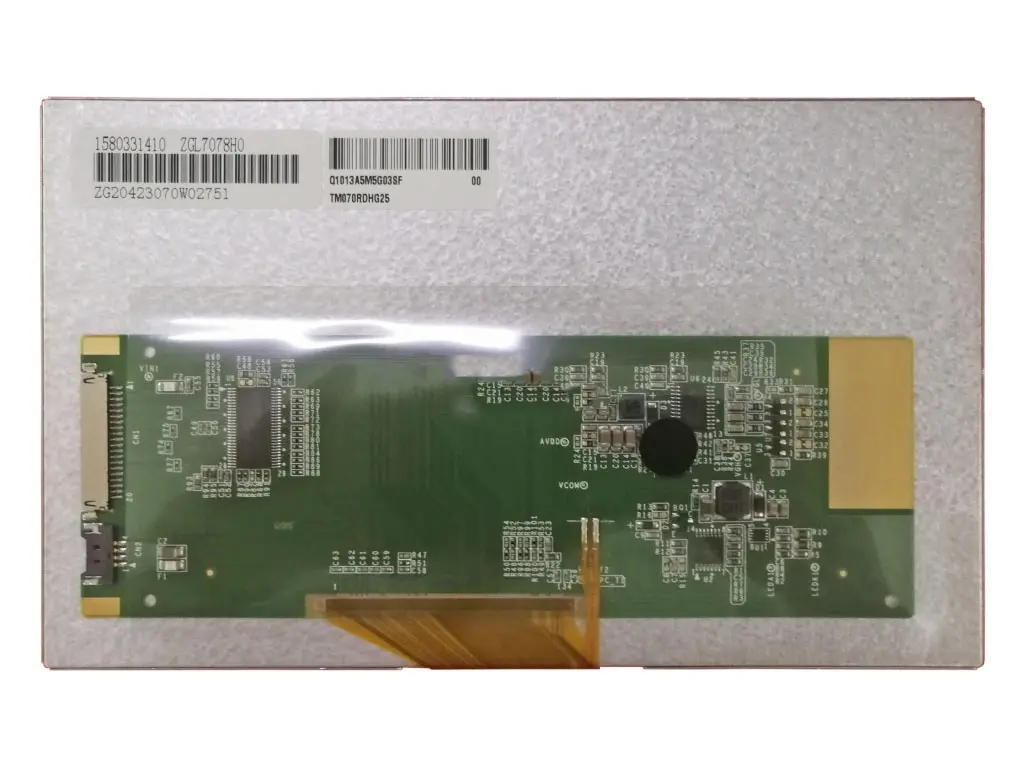

TM070RDHG25-00 TIANMA  lcd display screens

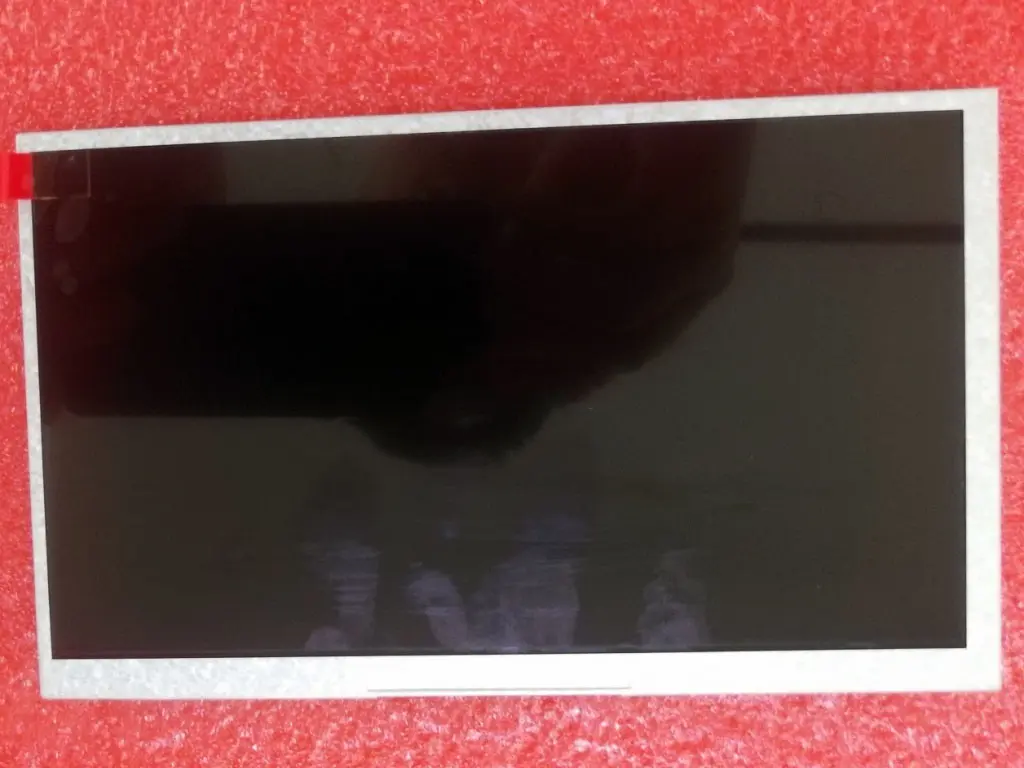

TM070RDHG25-00 TIANMA  lcd display screens
TM070RDHG25-00 TIANMA  lcd display screens
TM070RDHG25-00 TIANMA  lcd display screens

TM070RDHG25-00 TIANMA 7 inch 800*480 lcd display screens

Price: $125.00
$120.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

TM070RDHG25-00 TIANMA 7 inch 800*480 lcd display screens

Product Information Product Specifications
Model:
TM070RDHG25-00
Brand:
TIANMA
Application:
Industrial
Size:
7"
Resolution:
800(RGB)×480, 16:9, WVGA
Brightness:
450 cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
80/80/60/80 (Typ.)(CR≥10
Lamp Type:
3S8P WLED, 20K hrs, Without Driver
Signal Interface:
LVDS (1 ch, 6-bit), 20 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
154.08(W)×85.92(H) mm
Outline:
164.9(W)×100(H)×8.1(D) mm
Storage Temp:
-30 ~ 80 °C
Operating Temp:
-20 ~ 70 °C
Support Color:
262K, 50% NTSC
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
396
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

The TM070RDHG25-00 is a high-performance 7.0-inch a-Si TFT-LCD display module manufactured by TIANMA Microelectronics Co., Ltd., a leading global supplier of professional display solutions specializing in industrial and automotive applications. This LCM features a WVGA resolution of 800(RGB)×480 pixels with a 16:9 aspect ratio, delivering clear and stable visual performance for various embedded systems.


Equipped with a TN (Twisted Nematic) panel technology with anti-glare (AG) surface treatment, it provides a viewing angle of 80°(L)/80°(R)/60°(U)/80°(D) with an impressive 1000:1 contrast ratio, ensuring excellent readability even in moderately bright outdoor environments. The display supports 262K colors with 50% NTSC color gamut coverage, offering natural color reproduction for general-purpose applications.


With its integrated 3S8P WLED backlight system (without integrated driver), the TM070RDHG25-00 delivers a high typical brightness of 450 cd/m² and an extended backlight lifespan of 20,000 hours (minimum). It features a 20-pin FPC connector with 1-channel 6-bit LVDS interface, providing high-speed data transmission with low EMI. Designed for industrial use, it operates reliably in temperatures ranging from -20°C to 70°C, making it suitable for harsh operating environments.



TM070RDHG25-00 TIANMA  lcd display screens  Specification:

CategoryParameterValue
Basic InformationManufacturerTIANMA Microelectronics Co., Ltd.

Model NumberTM070RDHG25-00

AliasTM070RDHG25

Display Typea-Si TFT-LCD, LCM

Diagonal Size7.0 inches

RoHS ComplianceYes

Production StatusIn Mass Production
Pixel CharacteristicsResolution800(RGB)×480 (WVGA)

Pixel Density134 PPI

Pixel ConfigurationRGB Vertical Stripe

Aspect Ratio16:9

Dot Pitch0.0642×0.1790 (H×V) mm

Pixel Pitch0.1926×0.1790 (H×V) mm
Optical CharacteristicsBrightness450 cd/m² (Typ.)

Contrast Ratio1000:1 (Typ.) (Transmissive)

Viewing Angle80/80/60/80 (Typ.)(CR≥10) (L/R/U/D)

Best View Direction6 o'clock

Color Depth262K colors (6-bit)

Color Gamut50% NTSC (CIE1931)

Response Time15 (Typ.)(Tr+Td) ms

Refresh Rate60 Hz

Optical ModeTN, Normally White, Transmissive

Surface TreatmentAnti-Glare (AG)
Backlight SystemBacklight TypeWLED [3S8P]

Backlight DriverWithout integrated driver

Backlight Lifespan20,000 hours (Min.)

Backlight Voltage12V ±0.5V
Mechanical CharacteristicsActive Area154.08(W) × 85.92(H) mm

Bezel Window157.08(W) × 89.39(H) mm

Outline Dimensions164.9(W) × 100(H) × 5.7/8.1(D) mm (Typ./Max.)
Electrical CharacteristicsLogic Supply Voltage3.3V (Typ.)

Signal Interface20 pins, LVDS (1 ch, 6-bit)
Environmental CharacteristicsOperating Temperature-20°C ~ 70°C

Storage Temperature-30°C ~ 80°C

High Brightness Performance: 450 cd/m² typical brightness ensures excellent readability in semi-outdoor and bright indoor environments, making it suitable for applications exposed to direct or indirect sunlight.

High Contrast Ratio: 1000:1 typical contrast ratio delivers deep blacks and bright whites, enhancing image clarity and detail visibility for industrial monitoring and control applications.

LVDS High-Speed Interface: 20-pin 1-channel 6-bit LVDS interface provides high-speed data transmission with low electromagnetic interference, ideal for long-distance signal transmission in complex industrial environments.

Extended Backlight Lifespan: 20,000 hours minimum backlight lifespan provides long-term reliability for industrial and medical applications requiring 24/7 continuous operation.

Industrial-Grade Reliability: -20°C to 70°C operating temperature range and anti-glare surface treatment ensure stable performance in harsh industrial and outdoor environments.


TM070RDHG25-00 TIANMA  lcd display screens  Application:

Industrial Control Systems: HMI (Human-Machine Interface) panels, PLC displays, factory automation equipment, process control monitors, injection molding machine screens

Medical Devices: Portable patient monitors, diagnostic equipment interfaces, infusion pump displays, medical handheld terminals

Automotive Electronics: Car navigation systems, dashboard displays, rear-seat entertainment auxiliary screens, vehicle control panels

Outdoor Terminals: Outdoor information kiosks, parking lot displays, vending machine interfaces, public transportation displays

Test and Measurement Instruments: Portable oscilloscopes, multimeters, spectrum analyzers, field test equipment

Consumer Electronics: Portable media players, digital photo frames, smart home controllers


FAQ:

Q1: Is the TM070RDHG25-00 display still in production?A1: Yes, this model is currently in active mass production and widely available from authorized TIANMA distributors worldwide with large stock quantities.
Q2: Does this display come with a touch screen?A2: No, the standard TM070RDHG25-00 is a non-touch LCD module. Capacitive and resistive touch screen versions are available as custom bonded solutions.
Q3: What is the difference between TM070RDHG25-00 and other TM070RD series models?A3: The main differences are interface type, brightness levels and backlight configurations. TM070RDHG25-00 features a 20-pin LVDS interface, 450 cd/m² high brightness and 3S8P WLED backlight.
Q4: Can I use a 3.3V power supply for both the LCD and backlight?A4: No, the LCD logic circuit operates at 3.3V, but the WLED backlight requires a separate 12V power supply and an external LED driver.
Q5: What is the minimum order quantity (MOQ) for this display?A5: MOQ varies by distributor, but most suppliers offer sample quantities starting from 1 piece for evaluation and testing purposes.
