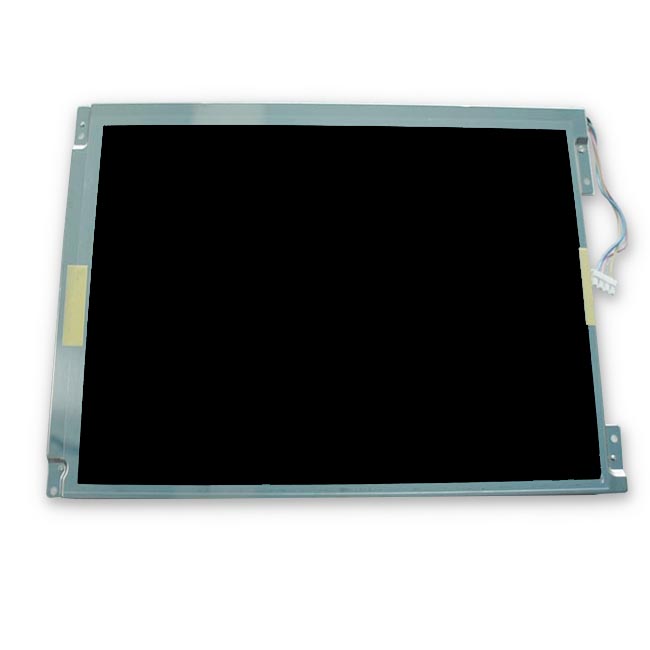

TCG121XGLPBPNN-AN40-S     12.1"   lcd   display   module   for    Mitsubishi
TCG121XGLPBPNN-AN40-S 12.1" lcd display module for Mitsubishi
Price: $255.00
$250.00/ piece
Add to cart
TCG121XGLPBPNN-AN40-S     12.1"   lcd   display   module   for    Mitsubishi
TCG121XGLPBPNN-AN40-S     12.1"   lcd   display   module   for    Mitsubishi
TCG121XGLPBPNN-AN40-S     12.1"   lcd   display   module   for    Mitsubishi
TCG121XGLPBPNN-AN40-S     12.1"   lcd   display   module   for    Mitsubishi

TCG121XGLPBPNN-AN40-S 12.1" lcd display module for Mitsubishi

Price: $255.00
$250.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

TCG121XGLPBPNN-AN40-S 12.1" lcd display module for Mitsubishi

Product Information Product Specifications
Model:
TCG121XGLPBPNN-AN40-S
Brand:
KYOCERA
Application:
Industrial
Size:
12.1"
Resolution:
1024(RGB)×768, XGA 105PPI
Brightness:
1200 cd/m² (Typ.)
Contrast Ratio:
750 : 1 (Typ.) (TM)
Viewing Angle:
85/85/85/85 (Typ.)(CR≥10)
Lamp Type:
WLED , 60K hours , With LED Driver
Signal Interface:
LVDS (1 ch, 6/8-bit) , Connector 20 pins
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

Product Introduction

The Kyocera TCG121XGLPBPNN-AN40-S is a 12.1-inch a-Si TFT-LCD display module designed for Mitsubishi-compatible industrial applications. Its XGA resolution of 1024 × 768, transmissive normally black display mode, wide 85/85/85/85 viewing angles, and 1,200-nit brightness support clear visual output across demanding operating environments. The module operates from -30°C to 80°C and features a WLED backlight rated for 60,000 hours.

Key Features

  • 1-inch a-Si TFT-LCD LCM with 1024 × 768 XGA resolution

  • 1200-nit brightness and 750:1 typical contrast ratio

  • Wide 85/85/85/85 viewing angles for broad visibility

  • Transmissive, normally black AWV display mode

  • Wide operating temperature range of -30°C to 80°C

  • WLED backlight with a typical service life of 60,000 hours

  • LVDS interface with 1 channel and 6/8-bit color input

  • 2M color depth using 6-bit + FRC

  • 80Hz refresh rate and 18/12 ms typical response time

  • Compact 260.5 × 203 mm outline with a 245.76 × 184.32 mm active area

  • Low-voltage power input of 12.0 ± 1.2V

Technical Specifications

Panel ModelTCG121XGLPBPNN-AN40-S
Panel Typea-Si TFT-LCD, LCM
Display Size12.1
Resolution1024(RGB)×768 [XGA]
Pixel Pitch0.080×0.240 mm
Operating Temperature-30 ~ 80 °C
Storage Temperature-30 ~ 80 °C
Brightness1200
Contrast Ratio750 : 1 (Typ.) (Transmissive)
Response Time18/12 (Typ.)(Tr/Td) (ms)
Viewing Angle85/85/85/85 (Typ.)(CR≥10)
Color Depth262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6043K
Display ModeAWV, Normally Black, Transmissive
Refresh Rate80Hz
sRGB Coverage71% coverage (CIE 1931)
Outline Dimension260.5(W)×203(H) mm
Active Area245.76(W)×184.32(H) mm
Weight555g
Voltage12.0±1.2V
Backlight TypeWLED
Backlight Lifetime60K (Typ.) hrs
InterfaceLVDS (1 ch, 6/8-bit)

Applications

  • Industrial HMI and operator-control panels

  • Mitsubishi-compatible industrial equipment and control systems

  • Factory automation and process-control displays

  • Machine monitoring and diagnostic interfaces

  • Test, measurement, and laboratory equipment

  • Commercial and information systems requiring a rugged 12.1-inch LCD module

Frequently Asked Questions

Q1: What display size and resolution does the TCG121XGLPBPNN-AN40-S provide?

A: The module provides a 12.1-inch display with 1024 × 768 RGB XGA resolution.

Q2: What is the operating temperature range?

A: Both the operating and storage temperature ranges are -30°C to 80°C.

Q3: Which display and backlight technologies are used?

A: It uses an a-Si TFT-LCD LCM with a transmissive, normally black AWV mode and a WLED backlight rated for 60,000 typical hours.

Q4: What interface is supported?

A: The module supports a single-channel LVDS interface with 6-bit or 8-bit color input.

Q5: What are the brightness, contrast ratio, and viewing angles?

A: The display has 1200-nit brightness, a typical contrast ratio of 750:1, and typical viewing angles of 85/85/85/85.

Q6: What are the module's outline and active-area dimensions?

A: The outline dimensions are 260.5 mm wide by 203 mm high, while the active area measures 245.76 mm by 184.32 mm.
