Kyocera TCG104SVLPAAFA-AA20 10.4 Inch 800x600 SVGA TFT LCD Display
Kyocera TCG104SVLPAAFA-AA20 10.4 Inch 800x600 SVGA TFT LCD Display
Price: $240.00
$235.00/ piece
Add to cart

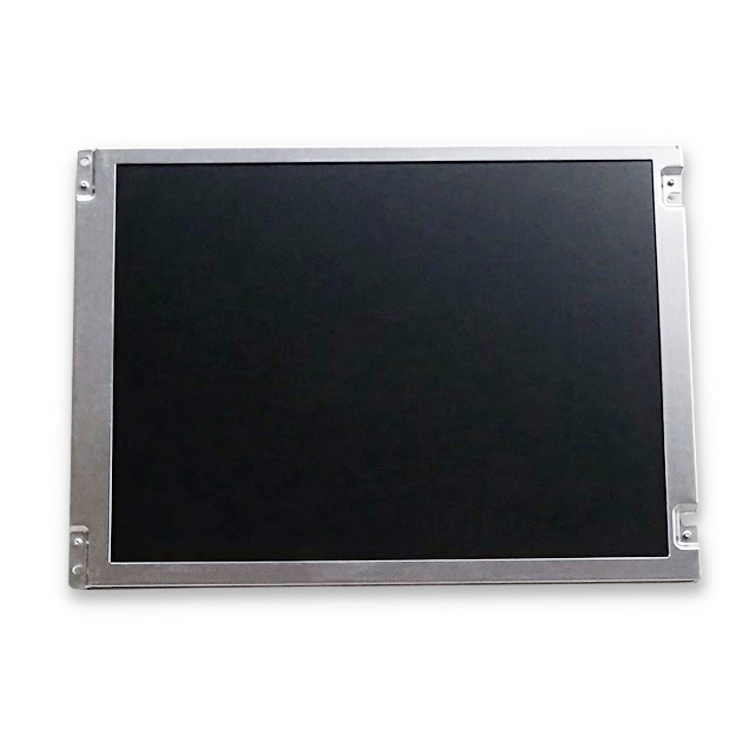

Kyocera TCG104SVLPAAFA-AA20 10.4 inch 800x600 SVGA TFT LCD display module front view
Back side of Kyocera TCG104SVLPAAFA-AA20 10.4 inch industrial LCD panel showing LED connector

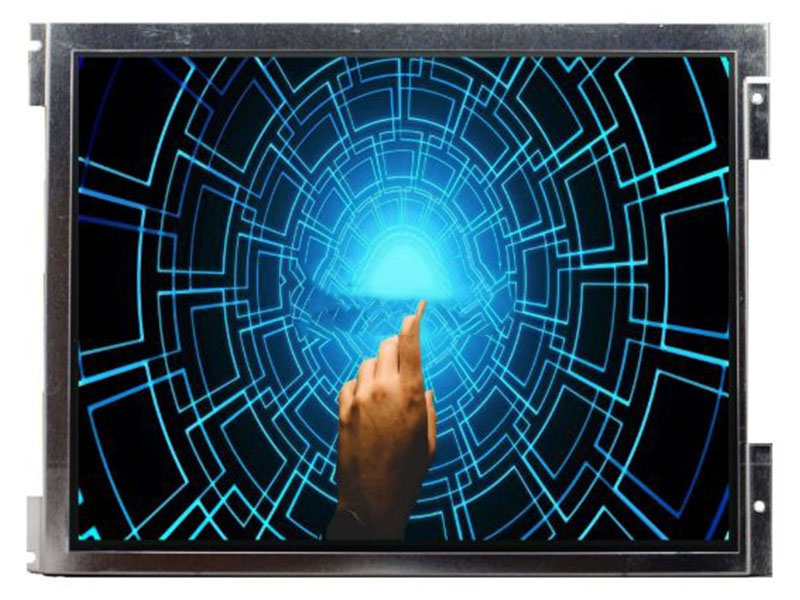

Kyocera TCG104SVLPAAFA-AA20 10.4 inch 800x600 SVGA TFT LCD display module front view
Back side of Kyocera TCG104SVLPAAFA-AA20 10.4 inch industrial LCD panel showing LED connector

Kyocera TCG104SVLPAAFA-AA20 10.4 Inch 800x600 SVGA TFT LCD Display

Price: $240.00
$235.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Kyocera TCG104SVLPAAFA-AA20 10.4 Inch 800x600 SVGA TFT LCD Display

Product Information Product Specifications
Model:
TCG104SVLPAAFA-AA20
Brand:
KYOCERA
Application:
Industrial
Size:
10.4"
Resolution:
800(RGB)×600, SVGA 96PPI
Brightness:
360 cd/m² (Typ.)
Contrast Ratio:
500:1 (Typ.) (TM)
Viewing Angle:
80/80/80/60 (Typ.)(CR≥10)
Lamp Type:
WLED , 100K hours , With LED Driver
Signal Interface:
LVDS (1 ch, 8-bit) , 30 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

Product Introduction

The Kyocera TCG104SVLPAAFA-AA20 is a premium-grade 10.4-inch SVGA (800×600) TFT LCD display engineered for mission-critical industrial applications. Unlike standard 640×480 panels, this 10.4" display delivers exceptional pixel density and ultra-sharp image rendering, making it the preferred choice for high-end semiconductor equipment, precision medical devices, and advanced CNC machinery. Manufactured by Kyocera, a global leader in industrial displays, it features an LED backlight system, wide viewing angles, and rugged durability. Available now at ZY LCD Shop with guaranteed original A-grade quality, strict zero-dead-pixel testing, and fast global shipping to minimize your equipment downtime.

Product Features of Kyocera TCG104SVLPAAFA-AA20

  • Original Kyocera Quality: 100% authentic, brand-new A-grade Kyocera 10.4 inch LCD panel ensuring maximum reliability in critical machinery.

  • High-Resolution SVGA: Native 800(RGB)×600 resolution provides significantly more screen real estate and sharper text than standard VGA panels.

  • Energy-Efficient LED Backlight: Equipped with a long-life WLED backlight system, offering superior brightness uniformity and lower power consumption compared to older CCFL models.

  • Wide Viewing Angles: Advanced optical technology ensures consistent color and contrast from multiple viewing positions on the factory floor.

  • Rugged Industrial Build: Designed to withstand harsh environments, including temperature fluctuations, vibrations, and continuous 24/7 operation.

  • Drop-in Replacement: Standard mechanical dimensions make it a direct, hassle-free replacement for aging or damaged TCG104 series screens.

Technical Specifications

Kyocera TCG104SVLPAAFA-AA20 LCD Panel Specs
ManufacturerKyocera
Model NumberTCG104SVLPAAFA-AA20
Screen Size10.4 inch (Diagonal)
Resolution800(RGB)×600, SVGA
Display ModeTFT, Normally White, Transmissive
Active Area211.2(W) × 158.4(H) mm
Outline Dimensions243.0(W) × 185.1(H) × 9.5(D) mm (Typical)
Interface TypeLVDS (1 ch, 6/8-bit) / Parallel RGB
Backlight TypeWLED (White LED)
Brightness360 cd/m² (Typ.)
Contrast Ratio500:1 (Typ.)
Operating Temperature-20°C to +70°C (Wide Temp Industrial Grade)

*Note: Please verify the exact interface type (LVDS or RGB) and pin configuration with our technical team before installation to ensure motherboard compatibility.

Applications for 10.4 Inch SVGA Industrial TFT LCD

Thanks to its high-resolution SVGA clarity and rugged build, the Kyocera TCG104SVLPAAFA-AA20 10.4 inch LCD display is widely deployed in mission-critical sectors:

  • Semiconductor Manufacturing: Perfect for wafer inspection machines, lithography equipment, and cleanroom control panels requiring high detail.

  • Advanced CNC & Machine Tools: Ideal for high-end 5-axis milling machines and laser cutting systems where precise graphical rendering is essential.

  • Medical & Diagnostic Equipment: Used in ultrasound machines, CT/MRI consoles, and patient monitoring systems demanding accurate color reproduction.

  • Industrial Automation (HMI): Excellent for complex SCADA systems, PLC interfaces, and factory data visualization terminals.

  • Transportation & Marine: Withstands vibration and extreme temperatures in railway control dashboards and maritime navigation systems.

Why Buy Kyocera LCD Panels from ZY LCD Shop?

Sourcing high-end industrial panels like the TCG104SVLPAAFA-AA20 requires a highly trusted partner. Here is why engineers choose ZY LCD Shop:

  • Authentic Kyocera Panels: We guarantee 100% original, brand-new A-grade Kyocera displays. No refurbished, no B-grade, no counterfeit screens.

  • Zero Dead Pixel Guarantee: Every 10.4" SVGA screen undergoes rigorous power-on, backlight uniformity, and pixel testing before dispatch.

  • Hard-to-Find Inventory: We specialize in sourcing specific high-resolution industrial LCD modules that are difficult to find on the open market.

  • Secure Anti-Static Packaging: Custom foam and ESD shielding ensure your fragile, high-value LCD arrives in pristine condition globally.

  • Engineering Support: Need a datasheet or cross-reference? Our tech team is ready to assist with integration and pinout queries.

Frequently Asked Questions (FAQ)

What is the advantage of the 800x600 SVGA resolution over standard 640x480?

The 800x600 SVGA resolution provides approximately 56% more pixels than standard 640x480 VGA. This allows operators to view more complex data, detailed schematics, and finer text on the 10.4-inch screen without needing to scroll or zoom.

Is the TCG104SVLPAAFA-AA20 compatible with my old Kyocera 10.4" screen?

While the mechanical dimensions are standard for 10.4-inch panels, you must verify two things: 1) Your motherboard supports 800x600 SVGA resolution, and 2) The interface type (LVDS or RGB) and pin count match your original cable. Contact us for cross-reference support.

Does this Kyocera panel use LED or CCFL backlighting?

The TCG104SVLPAAFA-AA20 utilizes a modern WLED (White LED) backlight system. This provides longer lifespan, better brightness uniformity, and eliminates the need for high-voltage CCFL inverters.

Do you provide the datasheet for the TCG104SVLPAAFA-AA20?

Yes, we provide complete PDF datasheets including mechanical drawings, pin definitions, timing charts, and electrical characteristics. Please contact our support team via email or live chat to request the file.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
Kyocera TCG104SVLPAAFA-AA20 10.4 Inch 800x600 SVGA TFT LCD Display

Kyocera TCG104SVLPAAFA-AA20 10.4 Inch 800x600 SVGA TFT LCD Display

TCG104SVLPAAFA-AA20

10.4"
800(RGB)×600, SVGA 96PPI
360 cd/m² (Typ.)
500:1 (Typ.) (TM)
80/80/80/60 (Typ.)(CR≥10)
WLED , 100K hours , With LED Driver
LVDS (1 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
TCG104VGLPEANN-AN60 Kyocera 10.4 inch 640*480 lcd display screens

TCG104VGLPEANN-AN60 Kyocera 10.4 inch 640*480 lcd display screens

TCG104VGLPEANN-AN60

10.4"
640(RGB)×480, 4:3, VGA
480 cd/m² (Typ.)
480 cd/m² (Typ.)
70/70/60/70 (Typ.)(CR≥10)
WLED, 50K hrs, With LED Driver
LVDS (1 ch, 8-bit), 30 pins Connector
a-Si TFT-LCD, LCM
TCG104XGLPAPNN-AN40-TA kyocera  10.4 inch  tft screen

TCG104XGLPAPNN-AN40-TA kyocera 10.4 inch tft screen

TCG104XGLPAPNN-AN40-TA

10.4"
1024*768
1300
700:1
85/85/85/85
WLED
20 pins
a-Si TFT-LCD, LCM
TCG104SVLPAAFA-AA20 is a 10.4" a-Si TFT-LCD, LCM Display screen Product from KYOCERA.According to KYOCERA's product specification sheet,TCG104SVLPAAFA-AA20 display has a resolution of 800(RGB)×600, SVGA 96PPI, Contrast Ratio is 500:1 (Typ.) (TM),Viewing Angle is 80/80/80/60 (Typ.)(CR≥10),Lamp Type is WLED , 100K hours , With LED Driver,Signal Interface is LVDS (1 ch, 8-bit) , 30 pins Connector,Brightness is 360 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of TCG104SVLPAAFA-AA20 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
