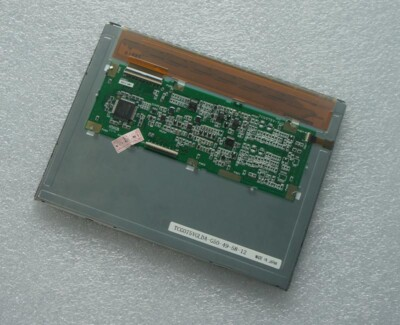

TCG075VGLDA-H50 Kyocera 7.5" 640×480 tft display
TCG075VGLDA-H50 is Kyocera classic long-lifecycle 7.5-inch VGA industrial TFT display, designed for 24/7 continuous heavy-duty factory automation equipment.
400 cd/m² high brightness ensures clear readable coordinate data, production curves, multi-row parameter tables and alarm prompts under strong workshop overhead lighting and window natural light, no external shading hood required. Standard 640×480 4:3 VGA resolution is the universal mainstream standard for legacy industrial controllers, perfectly matching original CNC, injection molding, textile machinery UI layout without picture cropping or stretching.
| Category | Parameter | Standard Typical Value |
|---|---|---|
| Basic Info | Full Model | TCG075VGLDA-H50 |
| Manufacturer | Kyocera (Japan) | |
| Screen Size | 7.5 inch, landscape 4:3 aspect ratio | |
| Native Resolution | 640(RGB) × 480 VGA, 107 PPI | |
| Panel Tech | a-Si TN TFT-LCD, Transmissive Normally White | |
| Pixel Arrangement | RGB vertical stripe | |
| Optical Performance | Pixel Pitch | 0.079(W) × 0.237(H) mm |
| Active AA Area | 151.68(W) × 113.76(H) mm | |
| Typical Brightness | 400 cd/m² industrial high brightness | |
| Contrast Ratio | 500:1 @ 25℃ ambient | |
| Color Depth | 6-bit per RGB channel, total 262K display colors, 52% NTSC gamut | |
| Viewing Angle (CR≥10) | L/R/U/D:80°/80°/80°/80° symmetrical wide view | |
| Response Time (Tr/Td) | 15ms / 20ms, total 35ms typical | |
| Mechanical Spec | Overall Outline Dimension | 173(W) × 133(H) × 4.4(D) mm ultra-thin |
| Net Weight | ~205g lightweight industrial module | |
| Surface Polarizer | Gloss transparent hard coat; matte AG anti-glare film optional | |
| Electrical Interface | Connector | 40Pin 0.5mm pitch FPC single-channel parallel RGB TTL |
| Logic Supply Voltage | DC 3.3V (3.0V ~ 3.6V tolerance, low power for embedded MCU) | |
| Backlight System | Light Source | Edge side 4 strings WLED array |
| WLED Spec | Typical 27.5V / 13.5mA; no onboard constant current IC | |
| WLED Rated Lifespan | 50,000 hours to half brightness | |
| Onboard Drive Circuit | No built-in LED constant current driver; external dedicated LED driver required | |
| Environmental Rating | Operating Temperature | -20 ℃ ~ +70 ℃ industrial wide grade |
| Storage Temperature | -30 ℃ ~ +80 ℃ | |
| Operating Humidity | 10% ~ 90% RH non-condensing | |
| Quality & Stock | Quality Grade | New Original A+: zero bright/dark dot, no horizontal/vertical line defect, uniform backlight without light leakage & color cast |
| Stock Status | In-Stock, full 4-hour temperature cycling aging + full pixel scan + long-time signal stability test, complete inspection report attached per unit | |
| Compliance | Certification | EU RoHS Lead-Free Certified, mercury-free WLED backlight |
| Touch Matching | Touch Option | Bare LCD only; separate 7.5-inch 4-wire resistive touch digitizer for optical bonding |
-20℃ ~ +70℃ ultra-wide industrial temperature: stable cold startup and non-stop long-hour operation in unheated cold workshops and high-temperature closed control cabinets
Kyocera long industrial lifecycle supply, stable quality, low failure rate for equipment maintenance & new industrial equipment mass production
400 cd/m² high industrial brightness, readable under strong indoor factory ambient light without anti-glare hood
500:1 high contrast ratio, clear text & waveform display for long-term static industrial parameter monitoring
Mercury-free long-life WLED backlight (50,000hrs), low maintenance frequency for 24/7 continuous production equipment
Standard 3.3V parallel RGB TTL interface, wide compatibility with mainstream industrial MCU/ARM/FPGA control hardware
Ultra-thin 4.4mm slim body, lightweight 205g, save embedded cabinet internal space
Warehouse sufficient spot stock with fast delivery, each unit attached complete pre-shipment pixel aging test report
CNC lathe / milling machine, injection molding machine main PLC touch HMI replacement screen
Packaging, printing, textile machinery multi-parameter monitoring control panel
Portable industrial pipeline, electrical fault diagnostic testing instruments main display
Portable medical analytical equipment, bedside mini auxiliary monitoring screen
Fixed environmental temperature/pressure data logger industrial terminal
Old factory automation embedded control cabinet spare replacement display
Replacement spare panel for Kyocera TCG075VGLDA series 7.5-inch WLED VGA industrial TFT modules
