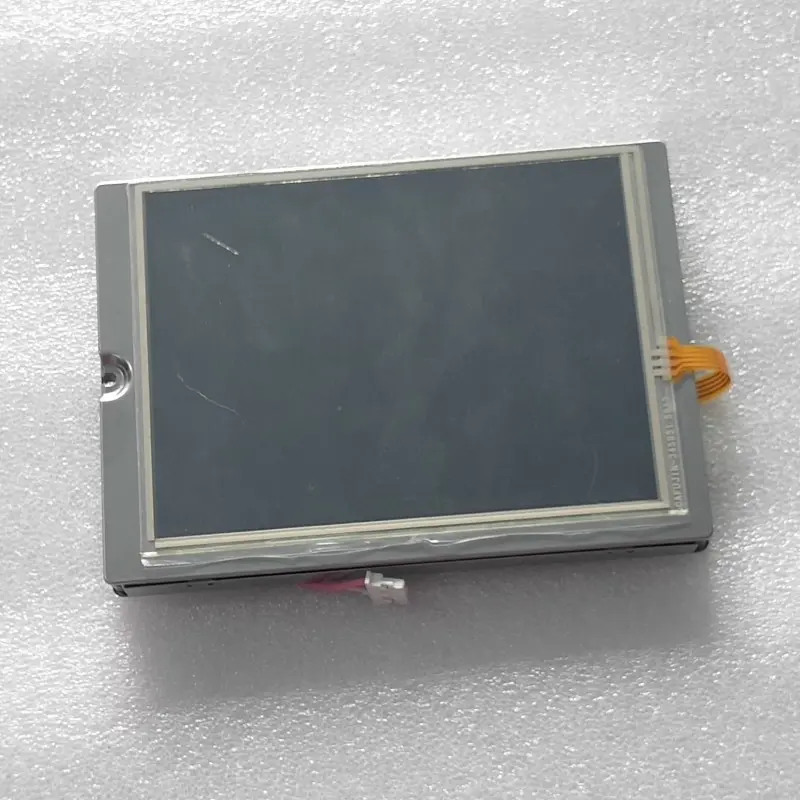

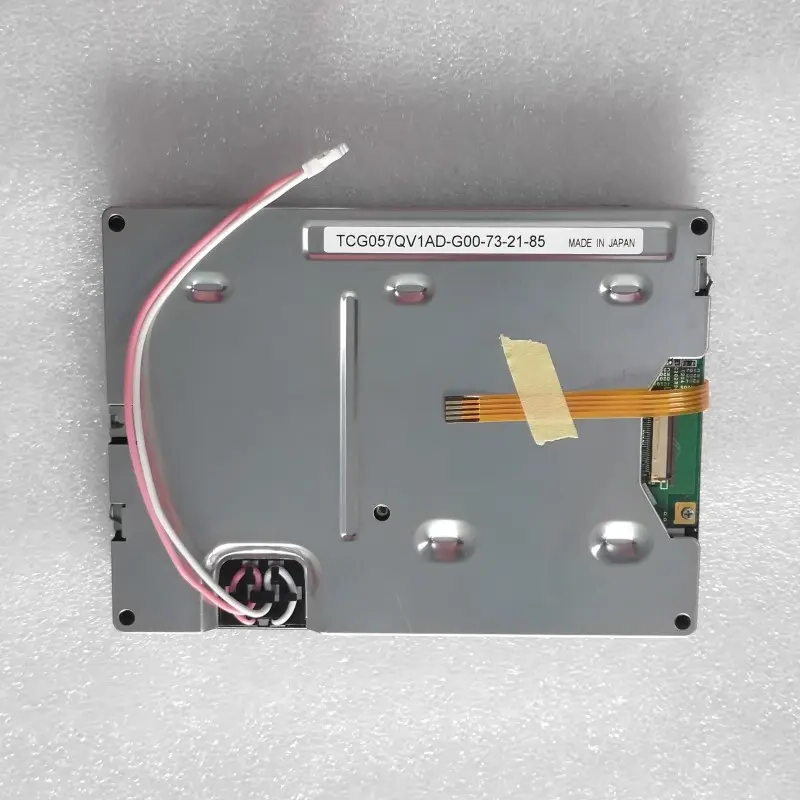

tcg057qv1ad-g00 Kyocera 5.7 inch tft display

Name: tcg057qv1ad-g00 Kyocera 5.7 inch tft display
Brand: KYOCERA
Price: 170.0 USD

Price: $175.00

$170.00/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Q&A Reviews

tcg057qv1ad-g00 Kyocera 5.7 inch tft display

Data sheets：

tcg057qv1ad-g00 Kyocera 5.7 inch tft display.pdf

Product Information Product Specifications

Model:

tcg057qv1ad-g00

Brand:

KYOCERA

Application:

Industrial

Size:

5.7"

Resolution:

320*240

Brightness:

370

Contrast Ratio:

450:1

Viewing Angle:

70/70/70/50

Lamp Type:

CCFL

Signal Interface:

33 pins

Panel Type:

a-Si TFT-LCD, LCM

Frame Rate:

60Hz

Active Area:

115.2×86.4

Outline:

144×104.8×15.6

Storage Temp:

-30 ~ 80 °C

Operating Temp:

-10 ~ 70 °C

Support Color:

262K

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

125

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

0.500 KG

Overview

tcg057qv1ad-g00 Kyocera 5.7 inch tft display

Discover exceptional display performance with the Kyocera TCG057QV1AD-G00, a premium 5.7-inch TFT LCD module engineered for professional applications. This high-quality display delivers outstanding image clarity with excellent color reproduction, wide viewing angles, and optimized contrast ratios, ensuring superior visual performance in various lighting conditions.

Designed specifically for demanding environments, this display is ideally suited for industrial automation systems, medical diagnostic equipment, test and measurement instruments, and other applications where reliability and visual precision are paramount. The module features robust construction that ensures consistent operation and extended service life, even in challenging operating conditions.

With its industry-standard interfaces and compact form factor, the TCG057QV1AD-G00 enables seamless integration into your existing systems while maintaining design flexibility. Kyocera's commitment to quality and technological excellence is embedded in every aspect of this display, providing you with a trusted solution that meets the stringent requirements of professional and industrial applications.

tcg057qv1ad-g00 is a 5.7" a-Si TFT-LCD, LCM Display screen Product from KYOCERA.According to KYOCERA's product specification sheet,tcg057qv1ad-g00 display has a resolution of 320*240, Contrast Ratio is 450:1,Viewing Angle is 70/70/70/50,Lamp Type is CCFL,Signal Interface is 33 pins,Brightness is 370.Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of tcg057qv1ad-g00 after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.

Questions & Answers

Ask a Question >

All (5) uncategorised (5) Package (0) Delivery (0) Payment (0) After Sale (0)

What are the typical applications for this display?

Due to its high brightness, wide operating temperature, and robust design, it is commonly used in industrial automation, Human-Machine Interfaces (HMI), medical equipment, test and measurement instruments, and outdoor devices.

What operating voltages are required for the display?

It typically requires two power supplies: 3.3V for the logic and interface, and a higher voltage (e.g., 15-20V) to drive the LED backlight, depending on the backlight configuration.

What is the backlight type and its lifetime?

It uses White LEDs as the backlight source, with a typical backlight lifetime of approximately 50,000 hours.

What type of interface does it use?

It uses a parallel RGB interface, specifically a 33-bit RGB LVDS (Low-Voltage Differential Signaling) interface.

What are the basic resolution and size of this display?

This display has a 5.7-inch screen size with a resolution of 320*240, which is the standard VGA resolution.
