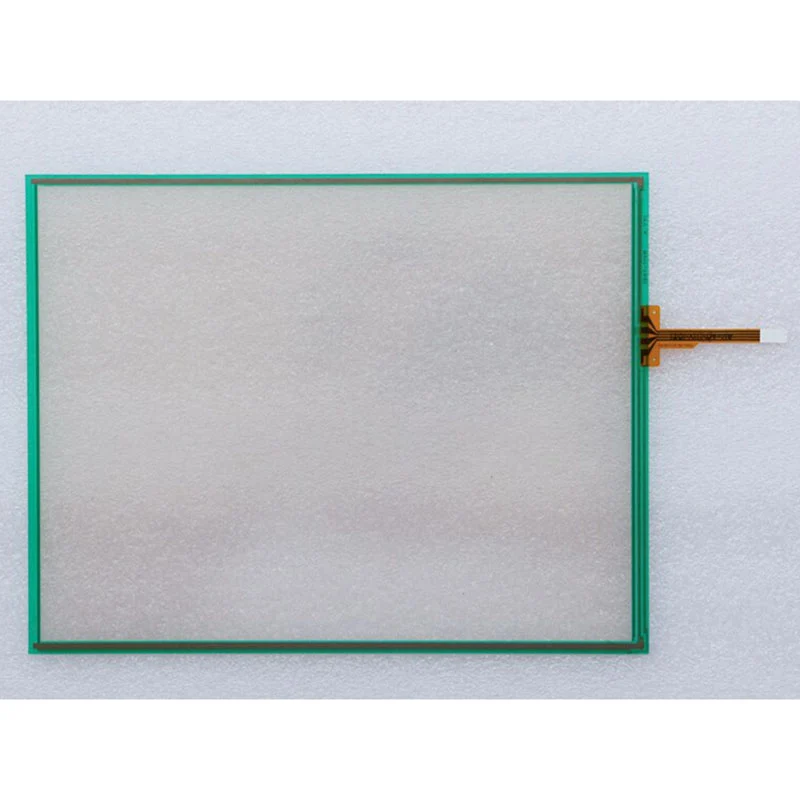

T010-1201-X111-04-NA Touch Glass Panel
T010-1201-X111-04-NA (also marked T010-1201-X111/04-NA) is an industrial 10.4-inch 4-wire analog resistive touch panel, widely matched with 10.4" 4:3 TFT LCD modules for industrial HMI, PLC operation panels and legacy automation equipment. It adopts Glass+Film resistive structure, flexible FPC connector, supports finger and stylus operation. This touch glass is commonly used as replacement spare part for imported industrial touch screens. All parameters refer to original industrial touch specification for equipment maintenance and screen retrofit matching.
| Parameter Item | Specification |
|---|---|
| Model Number | T010-1201-X111-04-NA |
| Touch Type | 4-Wire Analog Resistive Touch Panel |
| Diagonal Size | 10.4 Inch, 4:3 Landscape |
| Structure | Glass + PET Film Resistive Construction |
| Active Touch Area | 211.2 mm (W) × 158.4 mm (H) |
| Outline Dimension | 234.2 mm (W) × 174.4 mm (H) |
| FPC Connector | Standard 4Pin Flexible Cable |
| X Axis Resistance | 300 ~ 900 Ω |
| Y Axis Resistance | 200 ~ 800 Ω |
| Light Transmittance | ≥80% (Typ.) |
| Surface Hardness | 3H Hard Coating |
| Operating Force | ≤80g (Finger / Plastic Stylus) |
| Response Time | ≤10 ms |
| Linearity Error | ≤ ±2.0% |
| Insulation Resistance | ≥ 20 MΩ @ DC 25V |
| Lifespan | ≥ 1,000,000 touches |
| Operating Temperature | -10°C ~ +60°C |
| Storage Temperature | -20°C ~ +70°C |
| Humidity Condition | 0%~90% RH, Non-condensing |
| Surface Treatment | Glossy standard surface |
| Touch Support | Single touch only, stylus & finger operation |
| Production Status | Aftermarket replacement stock available |
| RoHS | RoHS Compliant |
Industrial Resistive Technology: Supports gloved hand, passive stylus and finger input, stable under complex workshop environment.
High Mechanical Durability: 3H hard coating, scratch resistant for long-term industrial operation.
Universal 4-Wire Interface: Compatible with mainstream resistive touch controller boards for industrial HMI.
Standard 10.4-inch 4:3 Outline: Perfect replacement for original touch glass of many classic industrial touch panels.
Stable Coordinate Performance: Low linearity error, no coordinate drift after long-time operation.
Wide Environmental Adaptability: Works normally in wide temperature and humidity range without dew.
Industrial HMI Touch Panel Repair & Replacement
PLC / CNC Machine Operation Touch Terminals
Factory Automation Control Equipment
Injection Molding Machine, Printing Machinery Control Panels
Test & Measurement Instrument Touch Displays
Legacy Imported Industrial Equipment Refurbishment
Medical Auxiliary Control Touch Terminals
