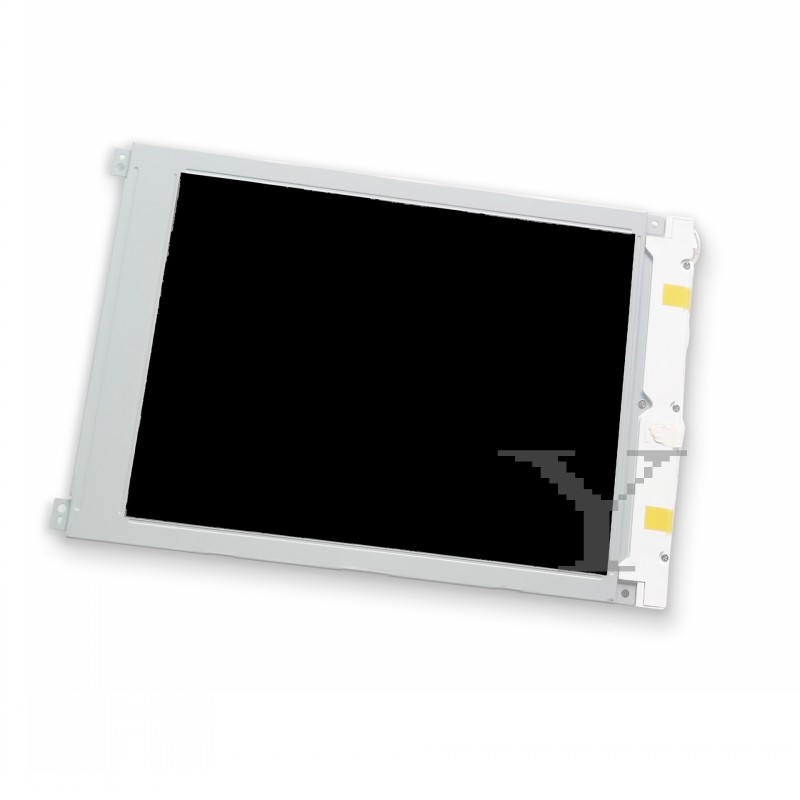

KOE SP14Q002-A1 5.7 inch QVGA 320x240 TFT LCD display front view
SP14Q002-A1 back panel showing CMOS connector and KOE Hitachi label
KOE SP14Q002-A1 5.7 inch QVGA 320x240 TFT LCD display front view
SP14Q002-A1 back panel showing CMOS connector and KOE Hitachi label

KOE SP14Q002-A1 5.7" QVGA 320×240 Industrial TFT LCD Display

Price: $135.00
$130.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

KOE SP14Q002-A1 5.7" QVGA 320×240 Industrial TFT LCD Display

Product Information Product Specifications
Model:
SP14Q002-A1
Brand:
KOE
Application:
Tablet
Size:
5.7"
Resolution:
320×240, QVGA 70PPI
Brightness:
140 cd/m² (Typ.)
Contrast Ratio:
25:1 (Typ.) (TM)
Viewing Angle:
40 (Typ.)(CR≥2, Φ2-Φ1)
Lamp Type:
1 pcs CCFL , Without Driver
Signal Interface:
Parallel Data (1ch, 4-bit) , 14 pins FPC
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview
KOE (Hitachi) SP14Q002-A1 – 5.7" QVGA Monochrome FSTN Industrial LCD
The SP14Q002-A1 is a legendary 5.7-inch industrial-grade LCD module originally manufactured by Hitachi (now KOE / Kyocera)
. Designed for extreme durability and long-term availability, this FSTN (Film Super Twisted Nematic) display is the gold standard for heavy machinery dashboards, legacy medical equipment, and CNC control panels.
Unlike modern color TFT screens, this module features a 320×240 (QVGA) monochrome (Black/White) resolution , providing ultra-high contrast text and line graphics that remain perfectly readable even in harsh industrial environments. It utilizes a traditional CCFL (Cold Cathode Fluorescent Lamp) backlight system, ensuring the exact optical characteristics required by legacy motherboards.
Key Specifications:
  • Screen Size: 5.7 Inches (Diagonal)

  • Resolution: 320(RGB) × 240 (QVGA)

  • Display Technology: FSTN-LCD, Monochrome

  • Backlight: CCFL (Requires compatible high-voltage inverter)

  • Signal Interface: Parallel Data, 14 Pins

  • Aspect Ratio: 4:3

  • Operating Temperature: Wide industrial temperature range (Typ. -10°C ~ 60°C)

Technical Specifications


SpecificationValue
Panel ModelSP14Q002-A1
BrandKOE
CompositionLCM
Size5.7"
Resolution320×240
Brightness140
Contrast Ratio1000:1
Viewing Angle89/89/89/89
Colors262K/16.7M
Backlightcell
InterfaceParallel Data (1ch, 4-bit), 14 pins 1.25mm FPC


 Industrial Applications & Equipment Compatibility
The KOE SP14Q002-A1 is widely used as a direct replacement HMI (Human-Machine Interface) screen in various legacy industrial systems. If your original Hitachi or Optrex screen has faded, developed dead lines, or the CCFL tube has burned out, this module is your exact OEM match.

Heavy Machinery & Excavators: Frequently used in the digital dashboard clusters and diagnostic monitors for Hitachi, Kobelco, and CAT excavators and bulldozer


  • CNC Machines & PLCs: Standard display for 1990s and 2000s era CNC milling machines, lathes, and industrial PLC control terminals.

  • Medical & Testing Equipment: Found in legacy ultrasound machines, ECG monitors, and laboratory oscilloscopes where high-contrast monochrome waveforms are required.

  • Cross-Reference / Compatible Models: This panel can often serve as a replacement for older Optrex or Hitachi 5.7" QVGA modules with identical 14-pin footprints. (Please verify your CCFL inverter voltage and pinout before ordering).

Applications

  • Industrial control panels and operator interface terminals

  • Factory automation equipment and process monitoring systems

  • Embedded HMI devices for machinery and production lines

  • Portable industrial instrumentation and measurement devices

  • Legacy equipment retrofit and display replacement projects

  • Manufacturing test equipment and diagnostic consoles

  • Building automation control interfaces and system monitors

  • Transportation and infrastructure monitoring equipment


Frequently Asked Questions

Q1: Is this a color TFT screen? Can it display video or colors?A: No. This is a Monochrome (Black/White) FSTN graphic display
topobogdi.ro
. It is designed specifically to display text, CAD line drawings, and diagnostic waveforms. It cannot display color images or video. Please do not order this if your application requires a color TFT panel.

Q2: My old screen is completely dark, but I can faintly see the text with a flashlight. Is my LCD broken?

A: This specific model uses a CCFL backlight tube  CCFL tubes have a limited lifespan (similar to fluorescent bulbs) and often burn out after 10+ years of use. If you can see the image with a flashlight, your LCD glass is fine, but your CCFL tube or the high-voltage inverter board has failed. Replacing this SP14Q002-A1 module (which includes a brand-new CCFL tube) will restore full brightness.

Q3: What interface does this use? Is it SPI or I2C?

A: No, it uses a legacy 14-pin Parallel Data interface  It requires a specific LCD controller on your motherboard to drive the 320x240 matrix. It is not compatible with modern Raspberry Pi/Arduino SPI setups without a specialized parallel-to-SPI bridge board.

Q4: Do you test the CCFL backlight before shipping?

A: Yes. Because CCFL tubes are fragile and require high voltage, our technicians test every single SP14Q002-A1 panel with a universal CCFL inverter before packing to ensure uniform brightness and zero flickering.

Q5: What type of product is the SP14Q002-A1?

A: The SP14Q002-A1 is produced by KOE, a brand known for supplying industrial flat panel display modules used in professional and embedded applications.

Q6: Which manufacturer produces the SP14Q002-A1?

A: This display module is typically used in industrial control systems, operator interface panels, automation equipment, and embedded instrumentation requiring a compact display solution.

Q7: Is the SP14Q002-A1 suitable for equipment replacement purposes?

A: Equipment manufacturers, system integrators, and industrial engineers typically integrate the SP14Q002-A1 into control panels, HMIs, and other professional industrial devices.

Q8: Who typically integrates the SP14Q002-A1 into their products?

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
KOE SP14Q002-A1 5.7" QVGA 320×240 Industrial TFT LCD Display

KOE SP14Q002-A1 5.7" QVGA 320×240 Industrial TFT LCD Display

SP14Q002-A1

5.7"
320×240, QVGA 70PPI
140 cd/m² (Typ.)
25:1 (Typ.) (TM)
40 (Typ.)(CR≥2, Φ2-Φ1)
1 pcs CCFL , Without Driver
Parallel Data (1ch, 4-bit) , 14 pins FPC
a-Si TFT-LCD, LCM
SP14Q002-C1     HITACHI      5.7    LCD

SP14Q002-C1 HITACHI 5.7 LCD

SP14Q002-C1

5.7"
320×240, QVGA 70PPI
140 cd/m² (Typ.)
25:1 (Typ.) (TM)
40 (Typ.)(CR≥2, Φ2-Φ1)
1 pcs CCFL , 50K hours , Without Driver
Parallel Data (1ch, 4-bit) , 14 pins FPC
FSTN-LCD, LCM
SP14Q002-T   HITACHI   5.7   LCD

SP14Q002-T HITACHI 5.7 LCD

SP14Q002-T

5.7"
320×240, QVGA 70PPI
60 cd/m² (Typ.)
5:1 (Typ.) (TM)
40 (Typ.)(CR≥2, Φ2-Φ1)
1 pcs CCFL , Without Driver
Parallel Data (1ch, 4-bit) , 14 pins FPC
FSTN-LCD, LCM
SP14Q002-B1 KOE 5.7" FSTN-LCD  LCM 320×240  QVGA  70PPI

SP14Q002-B1 KOE 5.7" FSTN-LCD LCM 320×240 QVGA 70PPI

SP14Q002-B1

5.7"
320×240, QVGA 70PPI
110 cd/m² (Typ.)
25:1 (Typ.) (TM)
BestViewon
1 pcs CCFL, Without Driver
ParallelData(1ch,4-bit),14pinsFPC
FSTN-LCD, LCM
SP14Q002-A1 is a 5.7" a-Si TFT-LCD, LCM Display screen Product from KOE.According to KOE's product specification sheet,SP14Q002-A1 display has a resolution of 320×240, QVGA 70PPI, Contrast Ratio is 25:1 (Typ.) (TM),Viewing Angle is 40 (Typ.)(CR≥2, Φ2-Φ1),Lamp Type is 1 pcs CCFL , Without Driver,Signal Interface is Parallel Data (1ch, 4-bit) , 14 pins FPC,Brightness is 140 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Tablet and other products.The weight of SP14Q002-A1 after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
verified

Original Factory-Sealed Panels

Every unit is sourced directly from display panel manufacturer through Zhiyan's first-hand supply channel. No refurbished, no B-grade. Factory seal intact.

100% Original | Factory Sealed
fact_check

100% Pre-Ship Testing & 6-Month RMA

Each panel passes through our six-step quality chain—incoming, display, appearance, interface, packaging, and tracking. Backed by a 6-month RMA.

Test OK Before Ship | RMA 6 Months
inventory_2

Huge Units In Stock · Ships in 1–3 Days

Stocked in our Shenzhen Longhua warehouse. Standard lead time 1–3 business days; quotations returned within 24 hours.

Huge In Stock | Lead Time 1-3 Days
local_shipping

Worldwide Shipping with Full Tracking

DHL, FedEx, UPS and TNT available. ESD-safe packaging. Typical door-to-door delivery: 5–7 business days globally.

DHL · FedEx · UPS · TNT | Worldwide

Quality issue? Return freight is on us. Damaged in transit? We cover it in full.

Why 1,000+ Engineers Trust Zhiyan Since 2013

factory 18 Years of Industrial LCD Supply Chain Expertise

  • warehouse 30,000+ m² ready-to-ship warehouse with tens of millions of dollars of LCD inventory on hand
  • category 100,000+ LCD models covered — from mainstream panels to discontinued & hard-to-find EOL models
  • groups 200+ staff, including a dedicated engineering team of 10+ for pre-sales matching and after-sales support
  • handshake Direct factory sourcing from Kyocera, KOE, and NANYA; long-standing supply partnerships across Taiwan and South Korea
  • sync One-stop service: sourcing → evaluation → testing → packaging → global logistics → technical support

fact_check 6-Step Inspection — No Panel Ships Untested

inventory_2 Incoming
monitor Display Test
visibility Appearance
settings_input_component Interface
view_in_ar Packaging
flight_takeoff Shipment
  • done_all Every panel is visually inspected, electrically powered-on tested, and interface-verified before packing
  • inventory_2 Anti-static, shock-proof professional packaging for international transit
  • verified What you see is what you get — product consistent with description, or return freight on us

verified_user Verified by Third Parties, Compliant in Your Market

Alibaba Verified Supplier Certificate
CITEO Membership Certificate
Der Grüne Punkt License
LUCID Registration Certificate
  • check TÜV Rheinland On-Site Verified Supplier (Alibaba.com Verified Supplier, Cert. No. 139632585_T) — factory audit covering production capacity, quality assurance & R&D
  • check EU Authorized Representative (EC REP) appointed — EUREPSTAR GmbH, Germany, valid 2025–2027, CE technical files maintained
  • check CITEO Registered (France, packaging EPR compliance, ID: FR293377_01SEXD)
  • check Der Grüne Punkt Licensed (Germany, VerpackG packaging compliance, Reg. No. DE4833497804557)
  • check All panels RoHS 2.0 compliant, lead-free, mercury-free WLED backlight
  • check Registered company: Shenzhen Zhiyan Optoelectronics Co., Ltd. — VAT/Reg. No. 91440300MA5GQNC36C

precision_manufacturing Trusted Across 13+ Industries Worldwide

Industrial Automation

HMI panels & factory control displays for automation integrators

Medical Devices

Auxiliary diagnostic & monitoring displays for medical device makers

POS/ATM

Replacement screens & bulk supply for POS/ATM manufacturers

Marine Electronics

Marine navigation display modules

Repair Market

EOL & obsolete panel sourcing for global repair centers

Embedded / OEM

Custom display solutions: touch bonding, brightness, cables, OEM labeling

Send us your LCD model number, application and quantity — our engineers will recommend a compatible solution within 24 hours.

local_shipping In Stock. Tested. Shipped in 1–3 Days.

timer

1–3 day lead time for in-stock items; same-day dispatch available in some cases

public

Worldwide shipping via express couriers, full tracking from warehouse to door

account_tree

Every order follows the same chain: Warehouse → QC → Packaging → Shipping → You

gpp_good

Transportation damage covered by us — zero risk on your side

What Buyers Say — 4.8/5 from Verified Orders

star star star star star_half

local_shipping On Delivery

"My package arrived at the expected date (6 days after the purchase) and in good condition."
— Verified Buyer, Nov 2025

"Fast shipping, good communication, goods as described, will buy again."
— Verified Buyer, Aug 2025

support_agent On Service

"The communication with customer service was very smooth, the logistics speed was also fast, the product was consistent with the description."
— Verified Buyer, Aug 2025

"Fast delivery, competitive price, excellent support."
— Verified Buyer, Aug 2025

inventory_2 On Hard-to-Find Models & Price

"Good price for things hard to find!"
— Verified Buyer, Aug 2025

"Excellent quality, affordable price, worth recommending."
— Verified Buyer, Nov 2024

Join engineers and buyers from industrial automation, medical and marine industries — get your quotation within 24 hours.

Questions & Answers
Ask a Question >
Q:
What are the viewable area and outline dimensions of this display?
A:
he viewable area of this 5.7-inch display is typically about 115.185(W)×86.385(H) mm. The overall outline dimensions can vary slightly depending on the bezel and connector design; please refer to the official datasheet for precise measurements, which are generally around167(H)×109(V) ×10(D) mm
Q:
What is required to drive the SP14Q002-A1 screen? Is technical documentation available?
A:
To drive this screen, you need: 1) A controller or mainboard capable of outputting an LVDS signal; 2) Matching LCD driving voltages (typically 3.3V or 5V, etc.); 3) A proper backlight driver. Technical documentation (like the datasheet) should be requested directly from the supplier or KOE company.
Q:
Where can I buy the SP14Q002-A1 display? Are there any alternative models recommended?
A:
Hi ! Thanks for reaching out. You can buy the SP14Q002-A1 directly from our online store here: https://www.zylcdshop.com/ (Just search the model number in the search bar). Regarding alternative models, we definitely have compatible options! To recommend the exact match, could you let me know if you need it for a specific temperature range or interface? You can drop your requirements here, or email us at service@zylcdshop.com. You can also click the "Contact Us" or "Live Chat" button on our website to talk to our engineers directly. Let me know if you need a quick quote for alternatives!
Q:
Can this screen directly replace other brands of 5.7-inch VGA screens?
A:
No, it cannot be directly replaced. The SP14Q002-A1 is specifically designed for or compatible with KOE. When replacing, in addition to size and resolution, you must confirm that the interface type (LVDS), pinout, voltage, and driving timings are fully compatible.
Q:
What is the resolution and interface type of the SP14Q002-A1 5.7-inch screen?
A:
The SP14Q002-A1 is a 5.7-inch LCD display with a resolution of 320x 240). It typically uses an LVDS interface for signal transmission.
Customer Reviews
Write a Review >
Comprehensive Score
4.8 out of 5
11 Reviews
5 star
81.8%
4 star
18.2%
3 star
0%
2 star
0%
1 star
0%
Review this Product Order
Share your thoughts with other customers
Write a Review
J***********t
Sep 14, 2026
(5/5)
Happy with the LM12S401 CSTN display. Exactly the 12.1" Sharp panel we needed to repair our factory control unit. Plugged in and powered up straight away. Fast shipping.
P************k
Nov 10, 2025
(5/5)
My package arrived at the expected date (6 days after the purchase) and in good condition
O***********E
Sep 29, 2025
(5/5)
Very nice and sharp in the choice
L***********A
Sep 12, 2025
(5/5)
ALL AS PLANNED OK
a****k
Aug 28, 2025
(5/5)
Fast delivery, Comptetive price Excellent support
R********a
Aug 25, 2025
(5/5)
Perfect and easy.
R************z
Aug 21, 2025
(5/5)
Fast shipping, good communication, goods as described, will buy again.
G*************i
Aug 15, 2025
(5/5)
Good price for things hard to find!
y****m
Aug 15, 2025
(5/5)
Product arrived earlier than expected. Price was also very reasonable.
H*******e
Aug 12, 2025
(4/5)
The communication with customer service was very smooth, the logistics speed was also fast, the product was consistent with the description, and it was a good shopping experience.
+8618820172049
service@zylcdshop.com
