SHARP LQ043T1DG29 4.3-Inch TFT LCD Panel 480×272  Industrial Display Module
SHARP LQ043T1DG29 4.3-Inch TFT LCD Panel 480×272 Industrial Display Module
Price: $40.00
$30.00/ piece
Add to cart
LQ043T1DG29
LQ043T1DG29
LQ043T1DG29
LQ043T1DG29

SHARP LQ043T1DG29 4.3-Inch TFT LCD Panel 480×272 Industrial Display Module

Price: $40.00
$30.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

SHARP LQ043T1DG29 4.3-Inch TFT LCD Panel 480×272 Industrial Display Module

Product Information Product Specifications
Model:
LQ043T1DG29
Brand:
SHARP
Application:
Industrial
Size:
4.3"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
98
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

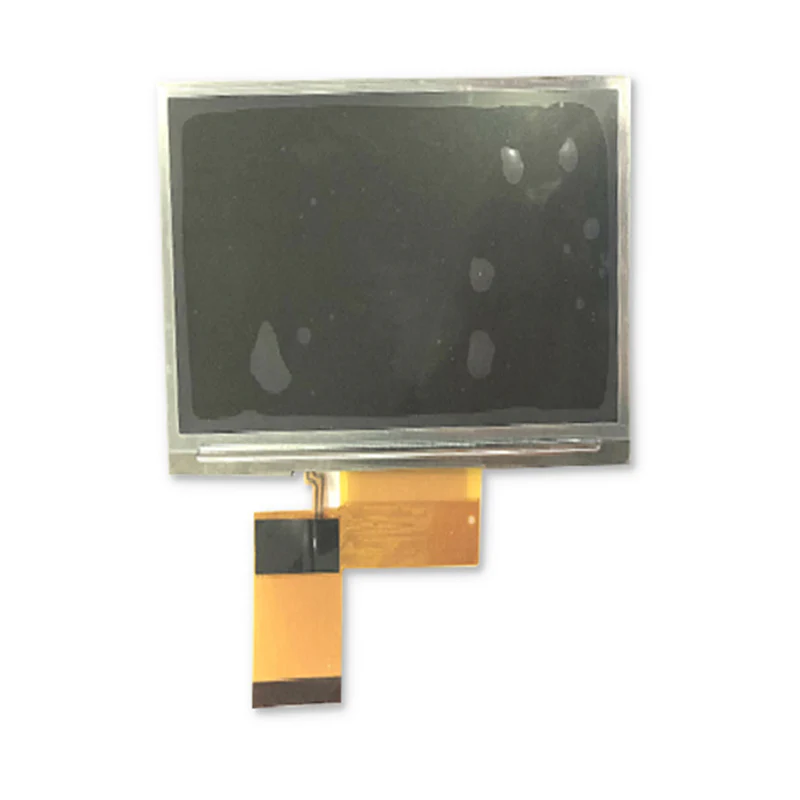

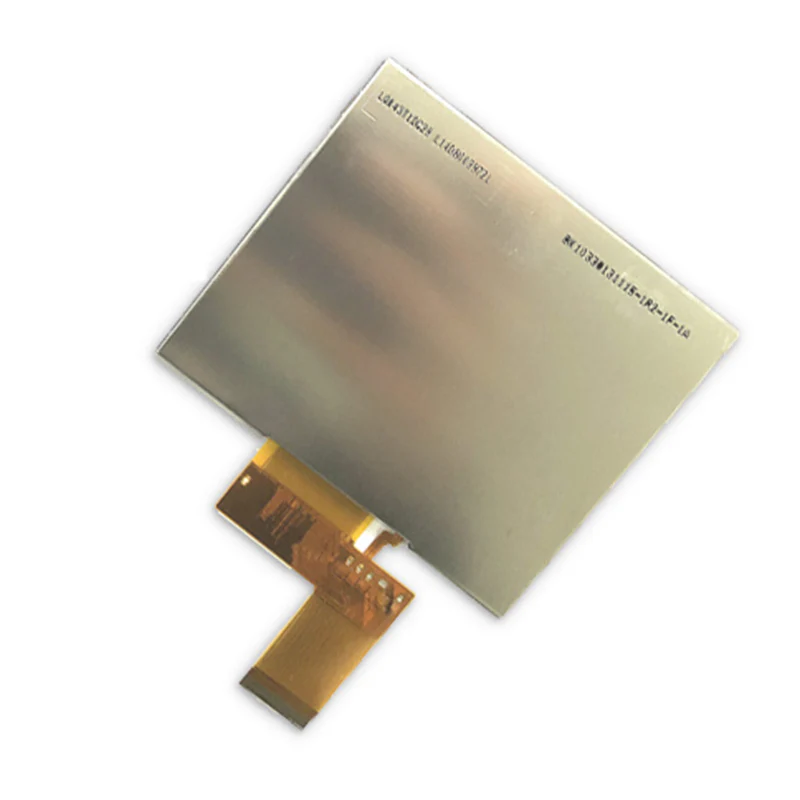

SHARP LQ043T1DG29 4.3-Inch Industrial TFT LCD Display Module


The SHARP LQ043T1DG29 is a 4.3-inch color TFT-LCD module designed for compact industrial equipment, handheld devices, portable terminals, and embedded display applications requiring stable performance and long-term reliability.

Featuring 480 × 272 WQVGA resolution, a-Si TFT active matrix technology, TN Normally White transmissive mode, parallel RGB + SPI interface, and a white LED backlight, the LQ043T1DG29 provides excellent image quality and easy integration for embedded systems and industrial display solutions.


Key Features

Original SHARP TFT LCD module

4.3-inch compact display size

Resolution: 480 × 272 pixels (WQVGA)

TN Normally White transmissive display technology

Parallel RGB 1-channel 6-bit interface + SPI

67-pin FPC connector

262K display colors

360 cd/m² brightness

White LED backlight

Anti-glare surface treatment

2H hard coating

Landscape display orientation

Suitable for handheld and embedded applications


Technical Specifications

SpecificationDetails
ModelLQ043T1DG29
ManufacturerSHARP
Display Size4.3 Inch
LCD Typea-Si TFT-LCD
Resolution480 × 272 pixels
Aspect Ratio16:9
Display ModeTN, Normally White, Transmissive
Display Colors262K
Active Area95.04 × 53.856 mm
Pixel ArrangementRGB Horizontal Stripe
Brightness360 cd/m² (Typ.)
Contrast Ratio500:1 (Typ.)
InterfaceParallel RGB (1 ch, 6-bit) + SPI
Connector67-pin FPC

Typical Applications

SHARP LQ043T1DG29 is suitable for:

Portable navigation devices

Handheld terminals

Industrial controllers

Embedded HMI systems

Medical handheld equipment

Portable measurement instruments

Vehicle display systems

Consumer and industrial multimedia devices

Legacy LCD replacement projects


Why Choose SHARP LQ043T1DG29?

Original SHARP LCD quality

Compact 4.3-inch display format

Reliable 480×272 WQVGA resolution

High brightness white LED backlight

Stable RGB + SPI interface

Lightweight and thin design

Suitable for long-term embedded applications

Easy replacement for discontinued LCD modules


Quality Assurance

Original SHARP LCD panel

100% display function testing

Pixel inspection before shipment

RGB signal verification

Backlight testing

FPC connector inspection

Anti-static protective packaging

Worldwide industrial LCD supply


FAQ

What is the resolution of SHARP LQ043T1DG29?

The LQ043T1DG29 features 480 × 272 WQVGA resolution.

What interface does LQ043T1DG29 use?

It uses a parallel RGB 1-channel 6-bit interface with SPI control signals through a 67-pin FPC connector.

What backlight does LQ043T1DG29 use?

The module uses a white LED (WLED) backlight without an integrated driver.

Is LQ043T1DG29 a touchscreen display?

No. The standard LQ043T1DG29 is an LCD display module only. A separate resistive or capacitive touch panel can be added.
