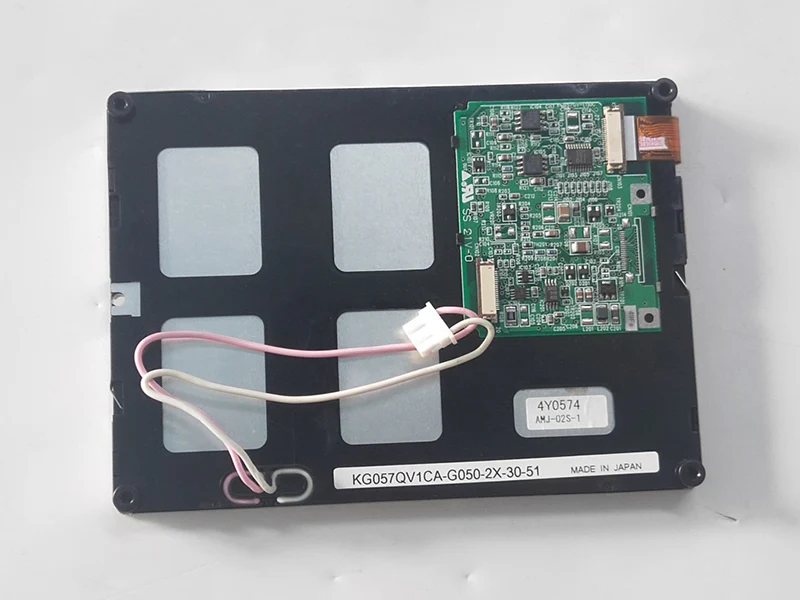

KG057QV1CA-G050 kyocera 5.7 inch lcd module 320*240 lcd display panel
KG057QV1CA-G050 kyocera 5.7 inch lcd module 320*240 lcd display panel
Price: $100.00
$94.00/ piece
Add to cart
KG057QV1CA-G050 kyocera
KG057QV1CA-G050 kyocera
KG057QV1CA-G050 kyocera
KG057QV1CA-G050 kyocera

KG057QV1CA-G050 kyocera 5.7 inch lcd module 320*240 lcd display panel

Price: $100.00
$94.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

KG057QV1CA-G050 kyocera 5.7 inch lcd module 320*240 lcd display panel

Product Information Product Specifications
Model:
KG057QV1CA-G050
Brand:
KYOCERA
Application:
Industrial
Size:
5.7"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
100
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

KG057QV1CA-G050 is mature Kyocera 5.7-inch QVGA monochrome FSTN industrial LCD module, mass pre-installed on small industrial control equipment, desktop POS cash registers, portable pipeline fault testers and early-generation handheld analytical instruments.

220 cd/m² moderate brightness meets indoor workshop, office and retail store lighting environments. Blue negative monochrome display provides high contrast text & curve reading effect, long-term viewing less eye fatigue, ideal for displaying multi-line industrial parameter tables, real-time equipment waveform curves and fault alarm text.

Full Technical Specification Table

CategoryParameterTypical Specification
Basic InfoFull Part NumberKG057QV1CA-G050

ManufacturerKyocera Display Japan

Screen Size5.7 inch, landscape 4:3
Display CoreNative Resolution320 × 240 QVGA monochrome graphic, 70 PPI

Panel TechFSTN Negative Transmissive LCD, black text on blue background

Pixel ArrangementRectangular graphic dot matrix
Optical PerformanceActive Display Area (AA)115.18(W) × 86.38(H) mm

Dot / Pixel Pitch0.360 × 0.360 mm

Typical Brightness220 cd/m² industrial standard brightness

Static Contrast Ratio40:1 @ 25℃ ambient

Display ColorMonochrome single blue scale (2 grayscale levels)

Viewing Angle (CR≥2)L/R:45°, U:30°, D:40°; Optimal viewing: 6 o’clock (bottom)

Total Response Time (Tr+Td)500ms typical

Native Refresh RateFixed 75Hz graphic timing
Mechanical SpecOverall Outline Dimension144.0(W) × 104.8(H) × 12.7(D) mm thin aluminum frame

Net Weight~175g lightweight industrial module

Surface TreatmentStandard glossy polarizer, 2H anti-scratch hard coat
Electrical InterfaceConnector31Pin 0.5mm pitch FPC single-channel 4-bit parallel MCU CMOS

Logic Supply VoltageDual support DC 3.3V / 5.0V (±0.3V tolerance)
Backlight SystemLight SourceSingle edge CCFL cold cathode fluorescent lamp (1 lamp)

Onboard CircuitNo built-in CCFL high-voltage boost IC; external single-lamp CCFL inverter mandatory

CCFL Rated Lifespan58,000 hours to half brightness
Environmental RatingOperating Temperature0 ℃ ~ +60 ℃ light industrial grade

Storage Temperature-20 ℃ ~ +70 ℃

Operating Humidity10% ~ 90% RH non-condensing
Quality & ComplianceQuality GradeBrand New Original Grade A: zero missing dot, no horizontal/vertical line mura, uniform backlight without light leakage

Stock StatusIn-Stock; full pixel scan + 4h temperature cycling aging test before shipment

CertificationRoHS compliant, CCFL contains trace mercury
Touch MatchingBare LCM only; separate 5.7" 4-wire resistive touch digitizer for optical bonding

Core Advantages

  1. Built-in dedicated graphic controller IC, no extra external drive chip required to simplify secondary control board design

  2. Classic 4:3 QVGA 320×240 monochrome resolution, ultra-high compatibility with vintage industrial & POS equipment firmware

  3. Blue negative FSTN high contrast display, clear text & waveform presentation for parameter monitoring

  4. Single-lamp CCFL backlight with 58,000hrs long service life, low maintenance frequency for 24h running equipment

  5. Dual 3.3V/5V logic voltage input, flexible matching different industrial mainboard power designs

  6. Compact lightweight 175g aluminum frame, convenient for handheld portable equipment assembly

  7. Standard 4-bit parallel MCU interface, abundant mature driver code resources for rapid development

  8. Ready brand-new original spot stock supports fast delivery for machinery & retail equipment repair orders

Typical Application Scenarios

  1. Replacement monochrome display for small CNC, injection molding auxiliary equipment operation panels

  2. Retail supermarket desktop POS cash register, ordering machine main parameter screen

  3. Portable industrial pipeline, electrical, environmental fault diagnostic tester waveform display terminal

  4. Mini laboratory analytical instrument, data recorder real-time curve monitoring screen

  5. Early-generation handheld medical blood analysis, ECG portable measuring equipment text display

  6. Spare replacement module for Kyocera KG057QV1CA series 5.7-inch single CCFL QVGA monochrome FSTN LCM

 FAQ

Q1: Does KG057QV1CA-G050 need an external CCFL inverter?

A1: Yes. There is no onboard single-lamp CCFL high voltage boost IC. A matched single-channel CCFL high voltage inverter is mandatory to light up the backlight; WLED constant current drivers cannot substitute without circuit refitting.

Q2: What controller IC is integrated inside this LCD module?

A2: Built-in dedicated monochrome graphic controller, supporting standard 4-bit parallel MCU read/write communication, rich mature industrial driver codes available.

Q3: What viewing direction is optimized for this FSTN blue-mode screen?

A3: Optimal viewing angle is 6 o’clock (bottom viewing), best read effect when viewed from below the screen.

Q4: Can KG057QV1CA-G00 directly replace KG057QV1CA-G050?

A4: Mechanical outline, mounting holes and 31Pin FPC pinout are fully consistent; verify CCFL electrical parameters and display timing before plug-and-play installation.

Q5: Does the LCM come with touch panel as standard?

A5: Bare LCD module only without touch sensor layer. Separate matched 5.7-inch 4-wire resistive touch digitizer needs optical bonding to form touch industrial HMI assembly.

Q6: Are panels available in stock and ready for shipment?

A6: Yes, brand new original Grade A Kyocera modules are in warehouse. Shipment within 1–3 working days after order confirmation, every unit completes full pixel and backlight uniformity inspection before delivery.


Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
KG057QV1CA-G050 kyocera 5.7 inch lcd module 320*240 lcd display panel

KG057QV1CA-G050 kyocera 5.7 inch lcd module 320*240 lcd display panel

KG057QV1CA-G050

5.7"
Kyocera KG057QVLCD-G400 5.7" Industrial LCD Display Panel 320×240 Color

Kyocera KG057QVLCD-G400 5.7" Industrial LCD Display Panel 320×240 Color

KG057QVLCD-G400

5.7"
320×240
190 cd/m²
10:1
45/45/20/40
GR-LED
Parallel Data
LCM
Kyocera KG057QVLCD-G310 5.7" Industrial LCD Display Panel 320×240 Color

Kyocera KG057QVLCD-G310 5.7" Industrial LCD Display Panel 320×240 Color

KG057QVLCD-G310

5.7"
320×240
230 cd/m²
4:1
45/45/20/40
WLED
Parallel Data
LCM
Kyocera KG057QVLCD-G060 5.7" Industrial LCD Display Panel 320×240 Color

Kyocera KG057QVLCD-G060 5.7" Industrial LCD Display Panel 320×240 Color

KG057QVLCD-G060

5.7"
320×240
150 cd/m²
3:1
35/35/20/35
WLED
Parallel Data
LCM
