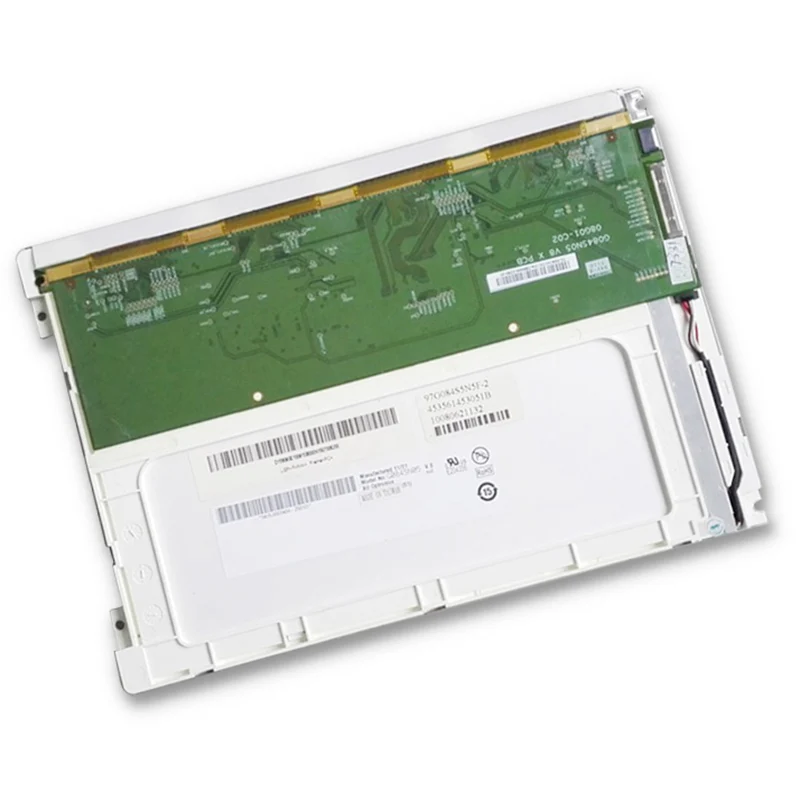

AUO G084SN05 V9 8.4" SVGA TFT LCD Panel Industrial LCD Module
AUO G084SN05 V9 8.4" SVGA TFT LCD Panel Industrial LCD Module
Price: $105.00
$100.00/ piece
Add to cart
G084SN05 V9
G084SN05 V9
G084SN05 V9
G084SN05 V9

AUO G084SN05 V9 8.4" SVGA TFT LCD Panel Industrial LCD Module

Price: $105.00
$100.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

AUO G084SN05 V9 8.4" SVGA TFT LCD Panel Industrial LCD Module

Product Information Product Specifications
Model:
G084SN05 V9
Brand:
AUO
Application:
Industrial
Size:
8.4"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
10
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

AUO G084SN05 V9 8.4-Inch Industrial TFT LCD Display Module


The AUO G084SN05 V9 is an 8.4-inch industrial TFT LCD display module designed for industrial PCs, factory automation equipment, HMI systems, medical devices, transportation displays, and long-life embedded applications.

Featuring 800 × 600 SVGA resolution, TN Normally White transmissive TFT technology, 1-channel LVDS interface, and an integrated LED backlight driver, the G084SN05 V9 provides stable image quality, high brightness, wide temperature operation, and reliable performance for demanding industrial environments.


Key Features

Original AUO industrial LCD panel

8.4-inch TFT LCD module

Resolution: 800 × 600 pixels

SVGA format

4:3 aspect ratio

a-Si TFT active matrix technology

TN Normally White transmissive mode

RGB vertical stripe pixel arrangement

262K (6-bit) / 16.2M (8-bit) colors

1-channel LVDS interface

20-pin LVDS connector

450 cd/m² high brightness

600:1 contrast ratio

Wide viewing angle design

WLED backlight with integrated LED driver

Anti-glare surface treatment

3H hard coating


Technical Specifications

SpecificationDetails
ModelG084SN05 V9
ManufacturerAUO (AU Optronics)
Display Size8.4 Inch
LCD Typea-Si TFT-LCD
Resolution800 × 600 pixels
Display FormatSVGA
Aspect Ratio4:3
Display ModeTN Normally White, Transmissive
Display Colors262K / 16.2M
Pixel ArrangementRGB Vertical Stripe
Active Area170.4 × 127.8 mm
Pixel Pitch0.213 × 0.213 mm
Brightness450 cd/m² (Typ.)
Contrast Ratio600:1 (Typ.)
Viewing Angle80/80/80/60
Response Time20/10 ms (Typ.)
Refresh Rate60Hz
InterfaceLVDS
Interface Type1 Channel 6/8-bit
Connector20-pin
Input Voltage3.3V
Backlight TypeWLED
LED DriverBuilt-in
Surface TreatmentAnti-glare + 3H Hard Coating

Typical Applications

AUO G084SN05 V9 is suitable for:

Industrial PC displays

Factory automation equipment

HMI operator panels

PLC control systems

CNC machine displays

Medical equipment monitors

Transportation control systems

Embedded industrial computers

Measurement instruments

Legacy LCD replacement projects


Why Choose AUO G084SN05 V9?

Original AUO industrial LCD quality

Classic 8.4-inch SVGA display format

High brightness 450 cd/m² output

Stable LVDS digital interface

Integrated LED driver design

Wide operating temperature capability

Long-life WLED backlight system

Suitable for harsh industrial environments

Ideal replacement solution for discontinued 8.4-inch LCD modules


Quality Assurance

Original AUO G084SN05 V9 LCD module

100% display function testing

Pixel defect inspection

Brightness measurement

LVDS signal verification

Backlight testing

Connector inspection

Anti-static protective packaging

Worldwide industrial LCD supply support


FAQ

What is the resolution of AUO G084SN05 V9?

AUO G084SN05 V9 features 800 × 600 SVGA resolution.

What interface does G084SN05 V9 use?

It uses a 1-channel LVDS interface with a 20-pin connector.

What backlight does G084SN05 V9 use?

It uses a WLED backlight with an integrated LED driver board.

Is G084SN05 V9 suitable for industrial applications?

Yes. It supports a wide operating temperature range of -30°C to +85°C, making it suitable for industrial environments.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
AUO G084SN05 V9 8.4" SVGA TFT LCD Panel Industrial LCD Module

AUO G084SN05 V9 8.4" SVGA TFT LCD Panel Industrial LCD Module

G084SN05 V9

8.4"
TCG084SVLPAANN-AN20-S   Kyocera  8.4 inch lcd panel

TCG084SVLPAANN-AN20-S Kyocera 8.4 inch lcd panel

TCG084SVLPAANN-AN20-S

8.4"
800*600
400
800 : 1
80/80/80/60
WLED
30 pins
a-Si TFT-LCD, LCM
TCG084SVLPAAFA-AA30-S kyocera  8.4 inch lcd display screens

TCG084SVLPAAFA-AA30-S kyocera 8.4 inch lcd display screens

TCG084SVLPAAFA-AA30-S

8.4"
800*600
600
800 : 1
80/80/80/60
WLED
30 pins
a-Si TFT-LCD, LCM
TCG084SVLBADNN-AN30 kyocera  8.4 inch lcd display screens

TCG084SVLBADNN-AN30 kyocera 8.4 inch lcd display screens

TCG084SVLBADNN-AN30

8.4"
800*600
750
800 : 1
80/80/80/60
WLED
30 pins
a-Si TFT-LCD, LCM
G084SN05 V9 is a 8.4" Display screen Product from AUO.According to AUO's product specification sheet,G084SN05 V9 display has a resolution of , Contrast Ratio is ,Viewing Angle is ,Lamp Type is ,Signal Interface is ,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G084SN05 V9 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
