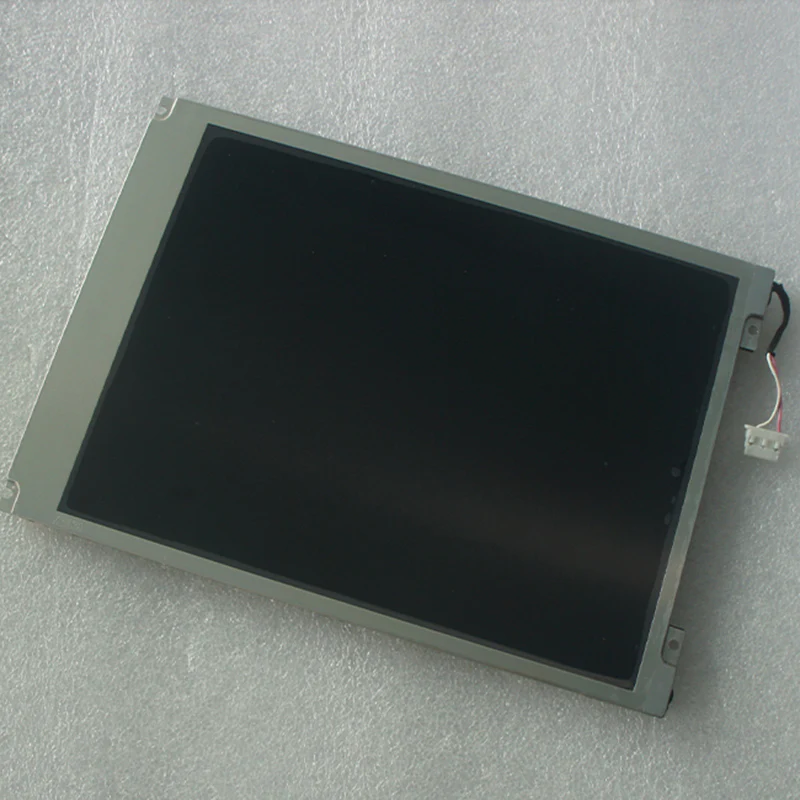

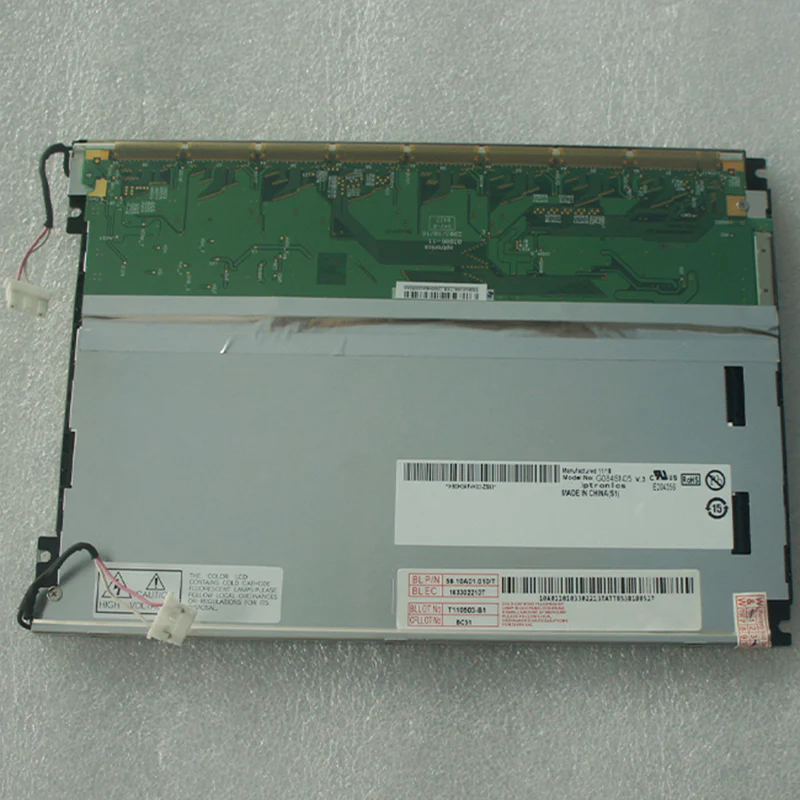

AUO 8.4 inch screen G084SN05 V.3 lcd module 800*600 lcd display panel
AUO 8.4 inch screen G084SN05 V.3 lcd module 800*600 lcd display panel
Price: $70.00
$65.00/ piece
Add to cart
G084SN05 V.3
G084SN05 V.3
G084SN05 V.3
G084SN05 V.3

AUO 8.4 inch screen G084SN05 V.3 lcd module 800*600 lcd display panel

Price: $70.00
$65.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

AUO 8.4 inch screen G084SN05 V.3 lcd module 800*600 lcd display panel

Product Information Product Specifications
Model:
G084SN05 V.3
Brand:
AUO
Application:
Industrial
Size:
8.4"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
15
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

G084SN05 V.3 is AUO mass-produced classic 8.4-inch SVGA industrial TFT module, widely pre-installed on early-generation machine tool and automation control equipment.

450 cd/m² high brightness enables clear reading of machining coordinates, PLC parameter menus, production curves and alarm messages under bright factory indoor lighting, no extra shading hood needed. Standard 800×600 SVGA resolution is fully compatible with massive legacy industrial control firmware, matching original UI layout without picture distortion.

CategoryParameterTypical Specification
Basic InfoFull ModelG084SN05 V.3
ManufacturerAU Optronics (AUO)
Screen Size8.4 inch, landscape 4:3
Native Resolution800(RGB) × 600 SVGA, 119 PPI
Panel Technologya-Si TN TFT-LCD, Transmissive Normally White
Pixel ArrangementRGB vertical stripe
Optical PerformanceActive Display Area (AA)170.4(W) × 127.8(H) mm
Typical Brightness450 cd/m²
Contrast Ratio500:1 @ 25℃ ambient temperature
Color Depth6-bit RGB, 262K display colors, 46% NTSC gamut
Viewing Angle (CR≥10)L/R:60°, U:40°, D:60°; Optimal viewing direction: 12 o’clock
Response Time (Tr/Td)10ms / 25ms, total 35ms typical
Refresh Rate60Hz native
Mechanical SpecOverall Outline Dimension203.0(W) × 142.5(H) × 8.3(D) mm metal frame
Net Weight260±10g
Surface TreatmentGloss hard coat; matte AG anti-glare polarizer optional
Electrical InterfaceConnector20Pin 0.5mm pitch FPC single-channel 6-bit LVDS
Logic Supply VoltageDC 3.3V (3.0V ~ 3.6V tolerance)
Backlight SystemLight SourceDual side edge CCFL cold cathode fluorescent lamps
Onboard CircuitNo built-in CCFL high-voltage boost IC; external dual-lamp CCFL inverter required
CCFL Rated Lifespan50,000 hours to half brightness
Environmental RatingOperating Temperature0 ℃ ~ +50 ℃ indoor industrial grade
Storage Temperature-20 ℃ ~ +60 ℃
Operating Humidity10% ~ 90% RH non-condensing
Vibration Resistance1.5G industrial standard
Quality & StockQuality GradeOriginal Grade A: zero bright/dark dot, no horizontal/vertical line defects, uniform backlight without light leakage
Stock StatusIn-Stock. Full pixel scan and continuous aging test before shipment
ComplianceRoHS compliant legacy industrial display, CCFL contains trace mercury
Touch MatchingBare LCD only; separate 8.4" 4-wire resistive touch digitizer available for optical bonding

Core Advantages

  1. AUO original mature industrial design, stable long-term static display performance for equipment maintenance replacement

  2. 450 cd/m² high brightness, readable under strong factory indoor ambient light

  3. Standard 800×600 SVGA resolution, highly compatible with vintage CNC and automation control programs

  4. Compact reinforced metal frame, suitable for embedded installation inside industrial control cabinet

  5. Classic 20Pin single-channel LVDS interface, abundant matching driver and controller resources

  6. Dual CCFL backlight delivers consistent brightness for 24/7 continuous running equipment

  7. Ready stock supports fast delivery for machine maintenance orders

  8. Optional matte anti-glare polarizer to reduce light reflection in workshop environment

Typical Application Scenarios

  1. Replacement display for vintage CNC lathe, milling machine and injection molding machine HMI

  2. Textile, printing and packaging machinery multi-parameter monitoring control panel

  3. Industrial laboratory analytical testing equipment and portable measuring instrument terminal

  4. Early-generation embedded industrial PC and factory automation secondary monitoring screen

  5. Spare replacement panel for AUO G084SN05 series 8.4-inch CCFL SVGA TFT modules

FAQ

Q1: Does G084SN05 V.3 need an external CCFL inverter?

A1: Yes. There is no onboard CCFL high voltage boost IC. A matched dual-lamp CCFL high voltage inverter is mandatory to light up the backlight; WLED constant current drivers cannot substitute.

Q2: Can this panel work with dual-channel LVDS driver board directly?

A2: No. The panel adopts single-channel 6-bit LVDS architecture. Timing parameter adjustment is required when using dual-channel driver boards.

Q3: What temperature environment is this panel suitable for?

A3: Operating temperature range 0℃ ~ +50℃, designed for indoor factory workshops and control rooms; not applicable for outdoor low-temperature field operation.

Q4: Can G084SN05 V9 directly replace G084SN05 V.3?

A4: They share identical mechanical dimension and pin layout. Driver timing and backlight parameters must be verified before direct replacement.

Q5: Does the module come with touch panel as standard?

A5: Bare LCD module only without touch sensor layer. Separate matched 8.4-inch 4-wire resistive touch digitizer needs optical bonding to form touch industrial HMI assembly.

Q6: Are panels available in stock and ready for shipment?

A6: Yes, tested Grade A original modules are in warehouse. Shipment within 1–3 working days after order confirmation. Every unit completes full pixel and backlight inspection before delivery.
If you need, I can provide complete detailed 20Pin full LVDS pin mapping document.










Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
AUO 8.4 inch screen G084SN05 V.3 lcd module 800*600 lcd display panel

AUO 8.4 inch screen G084SN05 V.3 lcd module 800*600 lcd display panel

G084SN05 V.3

8.4"
TCG084VGLACANN-AN00 kyocera  8.4 inch tft display

TCG084VGLACANN-AN00 kyocera 8.4 inch tft display

TCG084VGLACANN-AN00

8.4"
640*480
550
500:1
70/70/60/70
WLED
40 pins
a-Si TFT-LCD, LCM
TCG084VGLAAANN-AN00-S kyocera  8.4 inch tft display

TCG084VGLAAANN-AN00-S kyocera 8.4 inch tft display

TCG084VGLAAANN-AN00-S

8.4"
640*480
450
500:1
65/65/60/65
WLED
40 pins
a-Si TFT-LCD, LCM
TCG084VGLAAAFA-AA00  Kyocera  8.4 inch lcd display screens

TCG084VGLAAAFA-AA00 Kyocera 8.4 inch lcd display screens

TCG084VGLAAAFA-AA00

8.4"
640*480
360
500:1
65/65/60/65
WLED
40 pins
a-Si TFT-LCD, LCM
G084SN05 V.3 is a 8.4" Display screen Product from AUO.According to AUO's product specification sheet,G084SN05 V.3 display has a resolution of , Contrast Ratio is ,Viewing Angle is ,Lamp Type is ,Signal Interface is ,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G084SN05 V.3 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
