SCN-A5-FLT12.1-Z01-0H1-R NEW Touch Screen
SCN-A5-FLT12.1-Z01-0H1-R NEW Touch Screen
Price: $75.00
$68.00/ piece
Add to cart
SCN-A5-FLT12.1-Z01-0H1-R NEW Touch Screen
SCN-A5-FLT12.1-Z01-0H1-R NEW Touch Screen

SCN-A5-FLT12.1-Z01-0H1-R NEW Touch Screen

Price: $75.00
$68.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

SCN-A5-FLT12.1-Z01-0H1-R NEW Touch Screen

Product Information Product Specifications
Model:
SCN-A5-FLT12.1-Z01-0H1-R
Application:
Industrial
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
499
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

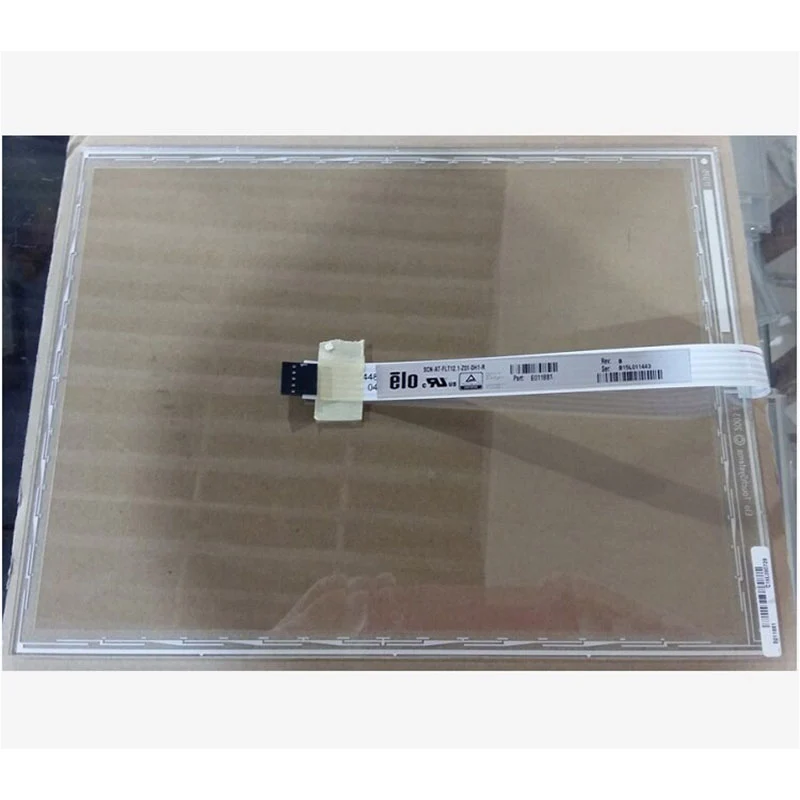

SCN-A5-FLT12.1-Z01-0H1-R is standard ELO original industrial 12.1-inch five-wire resistive touch glass, mass-matched with mainstream 12.1-inch 800×600 industrial control LCD panels, widely pre-installed on CNC machine operation panels, plastic molding machine HMI, supermarket POS payment terminals, environmental monitoring industrial touch all-in-one machines.

3H high-hardness front glass effectively resists workshop metal scrap, tool scratch damage; ≥82% high light transmittance will not reduce the original LCD brightness and display clarity, will not produce foggy reflection during long-time monitoring.

10g minimum trigger pressure supports wearing cotton/leather industrial gloves to operate without taking off gloves, greatly improving workshop operation efficiency; 10 million single-point touch service life adapts to 24-hour uninterrupted production line frequent tapping operation.

CategoryParameterTypical Specification
Basic InfoFull Part NumberSCN-A5-FLT12.1-Z01-0H1-R (ELO PN: E011881)

Standard Size12.1 inch, landscape 4:3 matching VGA 800×600 LCD
Touch Core TypeTouch Technology5-Wire Analog Resistive Touch Screen (Industrial Grade)

Touch Layer StructureGlass+PET composite double-layer conductive ITO film

Front Surface Hardness3H scratch-resistant hard coating
Optical PerformanceTransmittance≥82% high light transmittance, no screen darkening

Surface TreatmentGloss industrial anti-reflection coating, optional matte AG

Touch Active Area246.0(W) × 184.5(H) mm
Mechanical SpecOverall Glass Outline262.5(W) × 201.0(H) × 1.1(D) mm

FPC Cable5Pin flat flexible cable, 80mm cable length, right-side outlet

Net Weight~135g single touch glass
Touch Electrical ParametersOperating VoltageDC 5V standard ELO touch controller supply

Touch Response Time≤20ms fast response

Touch Precision±1.5mm coordinate accuracy, no coordinate drift after long use

Touch Pressure Range10g ~ 120g, support glove / stylus / finger touch

Endurance LifeSingle point touch ≥10 million taps
Environmental RatingOperating Temperature-10 ℃ ~ +60 ℃ industrial grade

Storage Temperature-30 ℃ ~ +70 ℃

Humidity10% ~ 90% RH non-condensing

Anti-Vibration2G vibration resistance for workshop equipment
Quality & ComplianceGradeBrand New Original, no scratch, no ITO layer breakage, full coordinate test passed

Stock StatusIn-Stock; full linear touch calibration + aging test before delivery

CertificationCE, RoHS compliant, compatible with all standard ELO USB/RS232 touch controllers
Matching DisplayApplicable LCDAll 12.1" 4:3 800×600 industrial TFT LCD (Samsung / Mitsubishi / Kyocera / AUO series)

Core Advantages

  1. Industrial 5-wire resistive architecture, long-term use without touch coordinate drift, more stable than ordinary 4-wire touch panels

  2. Support glove, stylus, finger multi-mode touch, adapt dust/oil workshop operation scenarios

  3. 3H hardened scratch-resistant front glass, anti-scratch for workshop metal debris collision

  4. ≥82% high light transmittance, will not affect LCD original display brightness and color performance

  5. ELO standard 5Pin FPC interface, universal matching all ELO original/alternative touch control boards

  6. 10 million times long touch service life, reduce frequent maintenance of 24-hour continuous production equipment

  7. Standard 12.1-inch 4:3 outline size, universal matching all brands 800×600 industrial LCD modules

  8. Brand new original spot stock, fast delivery for industrial equipment urgent maintenance orders

Typical Application Scenarios

  1. Replacement touch glass for 12.1-inch CNC lathe, injection molding, textile machinery HMI operation panels

  2. Supermarket, restaurant desktop POS cash register, ordering machine touch screen spare part

  3. Factory environmental, pipeline, electrical equipment real-time monitoring touch all-in-one machine

  4. Medium-sized laboratory analytical instrument, data recorder touch operation panel

  5. Construction machinery, agricultural machinery fixed cabinet touch control terminal

  6. Spare replacement touch glass for ELO SCN-A5-FLT12.1 series 12.1-inch five-wire resistive touch panels

 FAQ

Q1: Is this 4-wire or 5-wire resistive touch screen?

A1: It is 5-wire industrial resistive touch glass, must use a dedicated 5-wire ELO touch controller, cannot directly use 4-wire touch drive board.

Q2: Does this product include LCD display and touch control board?

A2: Only the outer touch sensor glass, without LCD panel and touch controller; LCD and drive board need to be purchased separately.

Q3: Can I wear work gloves to operate this touch screen?

A3: Yes, the minimum trigger pressure is only 10g, cotton, rubber, leather industrial gloves can trigger touch normally.

Q4: Can SCN-A5-FLT12.1-Z19-0H1-R directly replace this model?

A4: The overall glass size, active touch area and 5Pin FPC definition are completely consistent; just match the same ELO touch controller for plug-and-play replacement.

Q5: Will the touch coordinate drift after long-term use?

A5: Adopt five-wire separation induction structure, avoid the coordinate drift problem of four-wire screen caused by PET film aging, stable for long-term continuous use.

Q6: Are touch glasses in stock and ready for shipment?

A6: Yes, brand new original ELO touch glass are in warehouse. Shipment within 1–3 working days after order confirmation, each piece completes full-plane touch linear calibration test before delivery.


Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
SCN-A5-FLT12.1-Z01-0H1-R is a Display screen Product from .According to 's product specification sheet,SCN-A5-FLT12.1-Z01-0H1-R display has a resolution of , Contrast Ratio is ,Viewing Angle is ,Lamp Type is ,Signal Interface is ,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of SCN-A5-FLT12.1-Z01-0H1-R after packaging is 1.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
