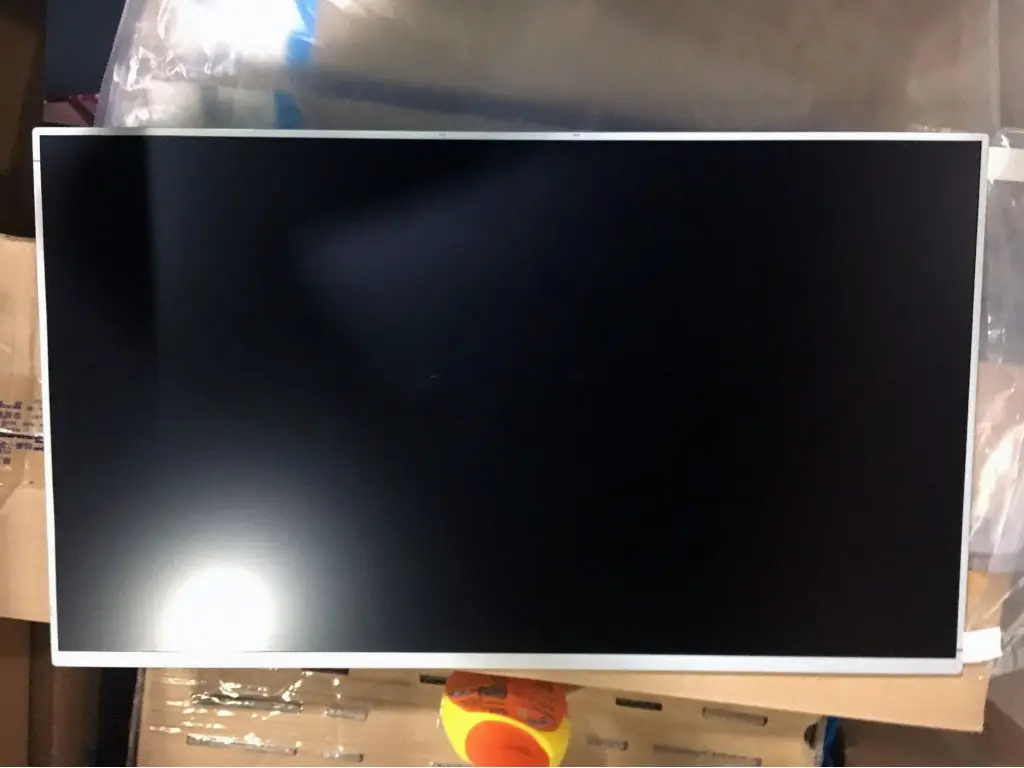

Samsung LTM270DL11-C01 27 inch  2560×1440 QHD TFT LCD Display Panel
Samsung LTM270DL11-C01 27 inch 2560×1440 QHD TFT LCD Display Panel
Price: $210.00
$200.00/ piece
Add to cart
Samsung LTM270DL11-C01 27 inch 2560×1440 QHD TFT LCD display panel
Samsung LTM270DL11-C01 27 inch 2560×1440 QHD TFT LCD display panel

Samsung LTM270DL11-C01 27 inch 2560×1440 QHD TFT LCD Display Panel

Price: $210.00
$200.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Samsung LTM270DL11-C01 27 inch 2560×1440 QHD TFT LCD Display Panel

Product Information Product Specifications
Model:
LTM270DL11-C01
Brand:
Samsung
Application:
Industrial
Size:
27"
Resolution:
2560(RGB)×1440, 16:9, Quad-HD
Brightness:
350 cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
300
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
4.500 KG
Overview
LTM270DL11-C01 is a high-resolution TFT LCD module developed by Samsung Display. Featuring advanced PLS wide viewing angle technology, 2560×1440 QHD resolution and stable WLED backlight system, this panel delivers consistent color reproduction from all directions, ideal for graphic work, office display and commercial visualization equipment.

Zylcdshop provides genuine brand-new A-grade Samsung LTM270DL11-C01 LCD panels. Every screen undergoes strict pre-shipment inspection to test dead pixels, brightness uniformity and signal stability. We serve monitor maintenance vendors, all-in-one computer manufacturers and commercial display integrators globally.

Technical Specifications

ItemParameter
ModelLTM270DL11-C01
BrandSamsung
Screen Size27.0 inch (Diagonal)
Panel Typea-Si TFT-LCD Display Panel
Aspect Ratio16:9
Native Resolution2560(RGB) × 1440 (QHD)
Pixel ArrangementRGB Vertical Stripe
Display ModePLS, Normally Black, Transmissive
Brightness (Typ.)350 cd/m²
Contrast Ratio (Typ.)1000:1
Viewing Angle (CR≥10)89°/89°/89°/89° (L/R/U/D)
Response Time (G to G, Typ.)12 ms
Display Color16.7M Colors, Wide Gamut
Refresh Rate60 Hz
BacklightWLED, Without Built-in Driver, Long Service Life
Signal Interface4 Channel LVDS, 8-bit, 61-pin Connector
Touch FunctionWithout Touch Panel
Operating Temperature0°C ~ +50°C
Storage Temperature-20°C ~ +60°C
other name
LTM270DL11 C01、LTM270DL11、LTM270-DL11-C01


Key Features

Authentic Samsung LTM270DL11-C01 TFT LCD panel

27 inch, 16:9 wide screen, 2560×1440 QHD resolution

PLS display technology, symmetrical ultra-wide viewing angle

Matte anti-glare surface with 3H hard coating, scratch and reflection resistant

4 Channel 8-bit LVDS, 61-pin connector, convenient driver matching

Long lifespan WLED backlight, stable for long-time continuous operation

Application Scenarios

Samsung LTM270DL11-C01 QHD LCD panel covers consumer and commercial display applications:

U2715H replacement panel LTM270DL11-C01

DELL U2717D LCD screen LTM270DL11-C01

27 inch QHD professional monitor LCD panel

27 inch PLS screen replacement for graphic monitor

27-inch QHD desktop monitor repair & screen replacement

All-in-one desktop PC built-in display screen

Office graphic design display terminal

Commercial multimedia advertising display

Simulation equipment and industrial auxiliary monitoring screen

Custom display assembly for retail and exhibition terminals

Contact our sales team if you need official datasheet, driver board compatibility consultation and competitive wholesale pricing

 FAQ

Q1: What devices use LTM270DL11-C01?A: Samsung LTM270DL11-C01 27" QHD panel is widely used for 27-inch desktop monitor replacement, all-in-one PC screens and commercial display terminals.
Q2: What interface does LTM270DL11-C01 adopt?A: This LCD panel uses 4-channel 8-bit LVDS 61-pin interface. Please confirm driver board compatibility before installation.

Q3: Can I order samples of LTM270DL11-C01?A: Yes. Zylcdshop supports sample testing and bulk wholesale for original Samsung LTM270DL11-C01 panels with reliable global shipping.

  • What is LTM270DL11-C01 panel?

  • LTM270DL11-C01 datasheet download

  • Is LTM270DL11-C01 compatible with DELL U2715H?

  • Where to buy original Samsung LTM270DL11-C01?
