P483IVN02.0   48.3"  lcd   panel  for   AUO
P483IVN02.0 48.3" lcd panel for AUO
Price: $310.00
$300.00/ piece
Add to cart
P483IVN02.0  48.3
P483IVN02.0  48.3

P483IVN02.0 48.3" lcd panel for AUO

Price: $310.00
$300.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

P483IVN02.0 48.3" lcd panel for AUO

Product Information Product Specifications
Model:
P483IVN02.0
Brand:
AUO
Application:
Outdoor High Brightness
Resolution:
1920(RGB)×320 40PPI
Brightness:
700 cd/m² (Typ.)
Contrast Ratio:
4000:1 (Typ.) (TM)
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10)
Lamp Type:
WLED , 50K hours , With LED Driver
Signal Interface:
LVDS (2 ch, 8-bit) , 51 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
5.500 KG
Overview

Product Introduction

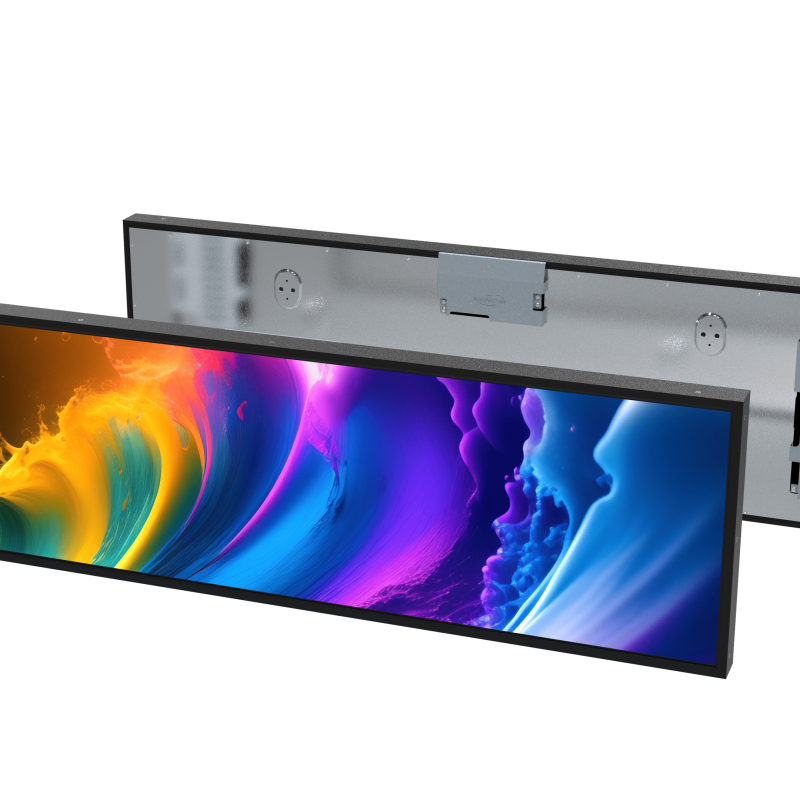

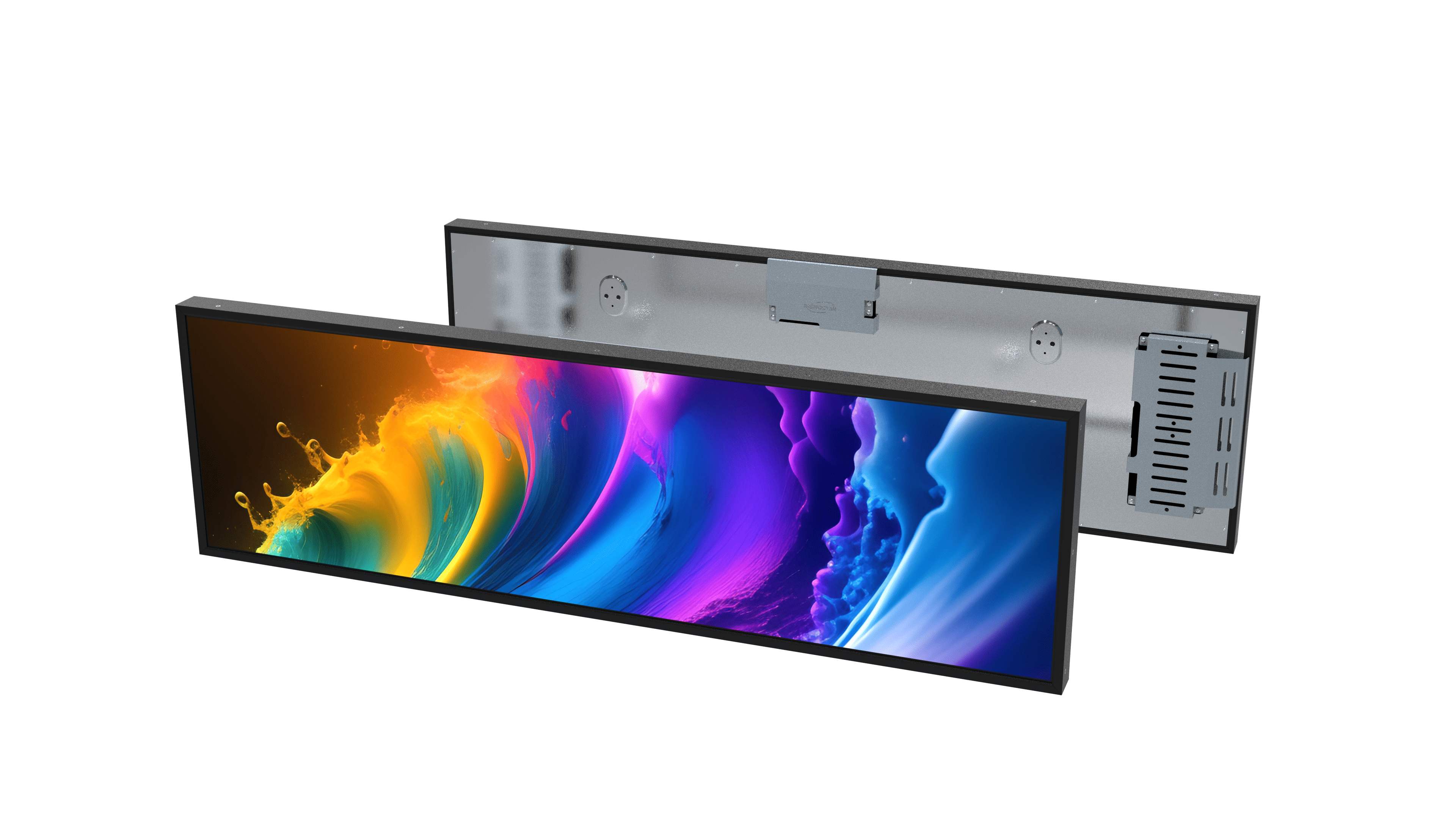

The AUO P483IVN02.0 is a 48.3-inch a-Si TFT-LCD LCM panel engineered for digital signage applications. It features a 1920 × 320 resolution, 700 nits brightness, 4000:1 typical contrast ratio, and AMVA3 normally black display mode. The panel operates from 24.0 ± 1.2V, consumes 42W typical power, and is built for commercial operating temperatures of -20°C to 60°C.

Key Features

  • 3-inch a-Si TFT-LCD LCM with a 1920 × 320 resolution

  • 700 nits brightness supports clear digital signage visibility

  • 4000:1 typical transmissive contrast ratio with AMVA3 normally black display mode

  • Wide 89° viewing angles in all four directions

  • 7M color depth using 8-bit color and 6485K color temperature

  • 60Hz refresh rate with 8ms typical gray-to-gray response time

  • WLED backlight rated for a minimum lifetime of 50,000 hours

  • Low typical power consumption of 42W, with a maximum of 50.4W

  • Operates on 24.0 ± 1.2V

  • Operating temperature range of -20°C to 60°C

  • Storage temperature range of -30°C to 60°C

  • 72% sRGB coverage based on CIE 1931

  • Compact 1232.4 × 229.4 mm outline dimensions with a 4.00 kg typical weight

Technical Specifications

Panel ModelP483IVN02.0
Panel Typea-Si TFT-LCD, LCM
Display Size48.3
Resolution1920(RGB)×320
Pixel Pitch0.21×0.63 mm (H×V)
Application FieldDigital Signage
Operating Temperature-20 ~ 60 °C
Storage Temperature-30 ~ 60 °C
Brightness700
Contrast Ratio4000:1 (Typ.) (Transmissive)
Response Time8 (Typ.)(G to G) (ms)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Color Depth16.7M (8-bit)
Color Temperature6485K
Display ModeAMVA3, Normally Black, Transmissive
Refresh Rate60Hz
sRGB Coverage72% coverage (CIE 1931)
Outline Dimension1232.4×229.4 mm (H×V)
Active Area1209.6×201.6 mm (H×V)
Voltage24.0±1.2V
Power Consumption42/50.4W (Typ./Max.)
Backlight TypeWLED
Backlight Lifetime50K (Min.) hrs

Applications

  • Digital signage displays

  • Commercial information displays

  • In-store promotional displays

  • Corporate and institutional information panels

  • Industrial information terminals

Frequently Asked Questions

Q1: What is the native resolution of the AUO P483IVN02.0?

A: The panel has a native resolution of 1920 × 320 RGB pixels.

Q2: What display technology and mode does the P483IVN02.0 use?

A: It is an a-Si TFT-LCD LCM using an AMVA3, normally black, transmissive display mode.

Q3: What is the brightness and contrast ratio of the panel?

A: The panel provides 700 nits brightness and a 4000:1 typical contrast ratio.

Q4: What are the viewing angles and response time?

A: Typical viewing angles are 89° in all four directions, and the typical gray-to-gray response time is 8ms.

Q5: What type of backlight is used?

A: The panel uses a WLED backlight rated for a minimum lifetime of 50,000 hours.

Q6: What is the panel's operating temperature range?

A: The operating temperature range is -20°C to 60°C. The storage temperature range is -30°C to 60°C.

Q7: How much power does the panel consume?

A: Typical power consumption is 42W, with a maximum consumption of 50.4W. The panel operates on 24.0 ± 1.2V.

Q8: What is the intended application for this panel?

A: The P483IVN02.0 is designed for digital signage applications.
