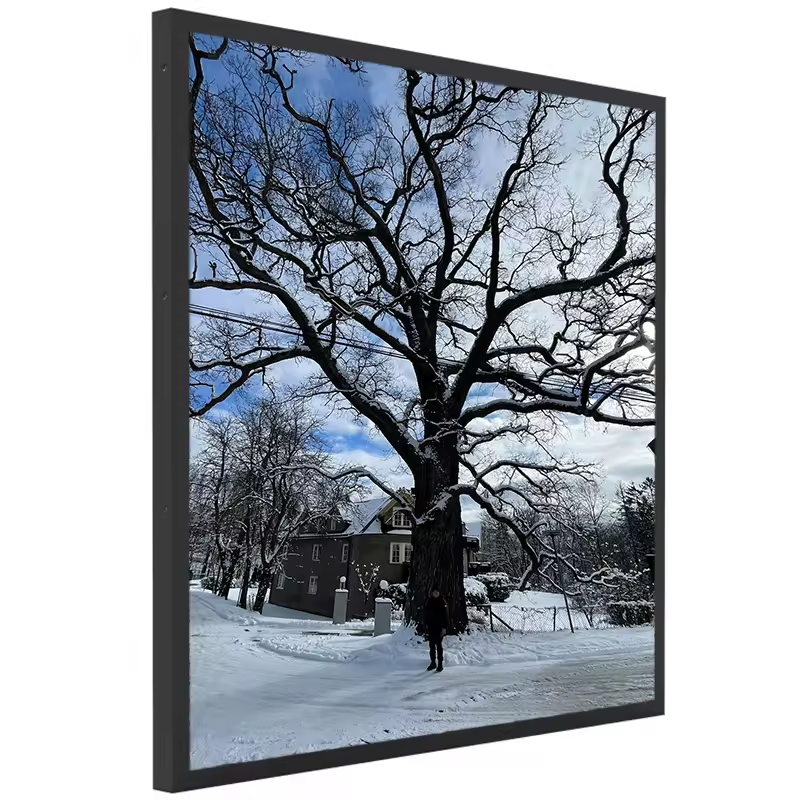

P281SVN01.0 28.1 inch display lcd for AUO
P281SVN01.0
800(RGB)×800 40PPI
700 cd/m² (Typ.)
4000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 51 pins Connector
a-Si TFT-LCD, LCM
P280HVN02.0 28inch tft lcd module for AUO
28"
1920(RGB)×360 69PPI
700 cd/m² (Typ.)
3000 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
19S4P WLED , 70K hours , No Driver
LVDS (2 ch, 8-bit) , 51 pins Connector
a-Si TFT-LCD, LCM
COM24H2P28XLC 2.4" lcd panel for Ortustech
2.4"
240(RGB)×320, QVGA 169PPI
300 cd/m² (Typ.)
400:1 (Typ.) (TM) 8.5:1 (Typ.) (RF)
80/80/80/80 (Min.)(CR≥10)
2S1P WLED , 50K hours , Without Driver
CPU , 39 pins FPC
a-Si TFT-LCD, LCM
