NV080WXM-N41 BOE 8 inch 800*1280 tft lcd module
NV080WXM-N41 BOE 8 inch 800*1280 tft lcd module
Price: $85.00
$80.00/ piece
Add to cart

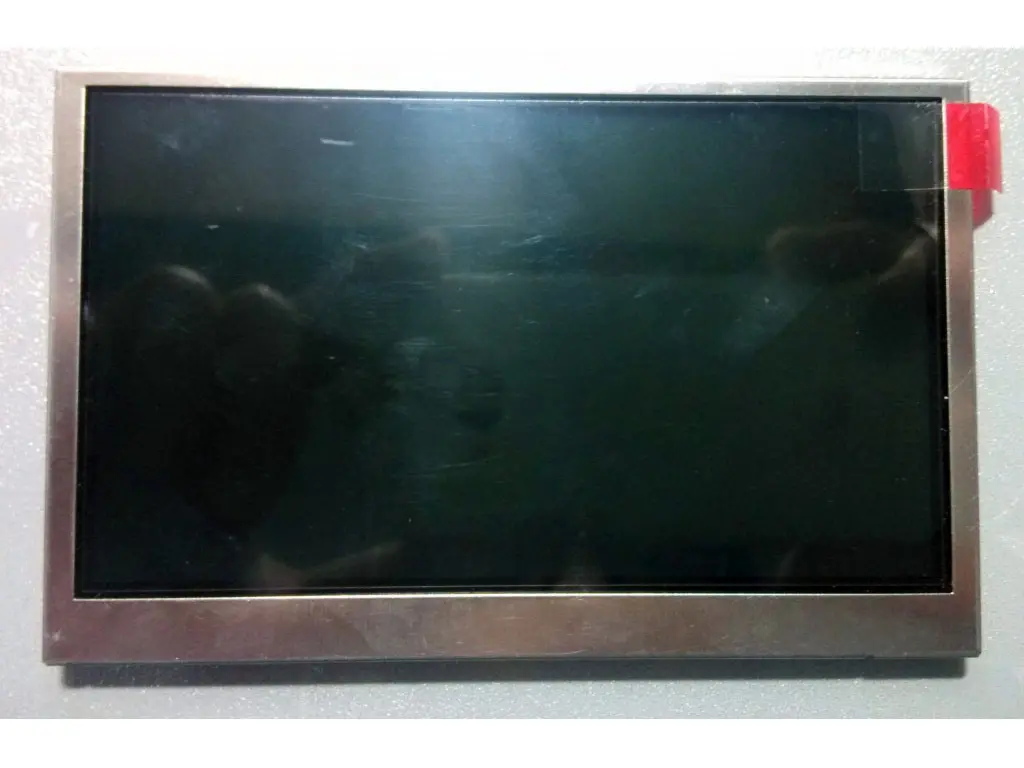

NV080WXM-N41 BOE
NV080WXM-N41 BOE

NV080WXM-N41 BOE 8 inch 800*1280 tft lcd module

Price: $85.00
$80.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

NV080WXM-N41 BOE 8 inch 800*1280 tft lcd module

Product Information Product Specifications
Model:
NV080WXM-N41
Brand:
BOE
Application:
Tablet
Size:
8"
Resolution:
800(RGB)×1280, WXGA, 10:16
Brightness:
350 cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
80/80/80/80 (Typ.)(CR≥10)
Lamp Type:
5S4P WLED, 15K hrs, Without Driver
Signal Interface:
MIPI (4 data lanes), 45 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
107.64(H)×172.224(V) mm
Outline:
113.72(H)×184.01(V)×4.43(D) mm
Storage Temp:
-30 ~ 70 °C
Operating Temp:
0 ~ 50 °C
Support Color:
16.7M, 60% NTSC
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
396
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

The NV080WXM-N41 is an 8-inch a-Si TFT-LCD display module developed by BOE specifically for consumer electronics and industrial handheld devices, featuring BOE's patented ADS-IPS wide-view technology. It is the mainstream cost-effective solution for 8-inch vertical displays.


This module delivers 800×1280 vertical resolution (188PPI), 350 cd/m² standard brightness, 1000:1 high static contrast ratio, 80° all-direction viewing angle without color shift, 16.7M (8-bit) true color display, and 60% NTSC standard color gamut, providing sharp visuals and natural color reproduction for daily office work, entertainment, and industrial operations. Equipped with MIPI DSI (1-channel/8-bit) 45-pin high-speed interface, direct-lit WLED backlight system (15,000-hour typical lifespan), and 60Hz standard refresh rate, it offers stable signal transmission and low power consumption, ideal for battery-powered mobile devices.


Only 2.5mm thick (typical), with a matte anti-glare surface treatment and RoHS compliant, it operates at 0~50°C and stores at -30~70°C, offering good environmental adaptability for various consumer electronics and light industrial applications.

NV080WXM-N41 BOE tft lcd module Highlights:

100% Genuine BOE Quality: All modules are sourced directly from BOE official channels with traceability certificates, no refurbished or used screens, stable mass production supply

Ultra-Thin Vertical Design: Only 2.5mm thick, 5:8 golden vertical ratio, perfectly adapted to various handheld devices and smart home panels

BOE Patented ADS-IPS Technology: 80° all-direction viewing angle without color shift, 1000:1 high contrast ratio, natural color reproduction, more comfortable for long-term use

MIPI High-Speed Low-Power Interface: Standard MIPI DSI 45-pin interface, stable signal transmission, low power consumption, extending battery life

Cost-Effective & Universal: As the mainstream standard solution for 8-inch vertical displays, it has strong compatibility and competitive pricing

Comprehensive Customization Services: Provides one-stop customization solutions including capacitive touch screens, driver boards, and backlight drivers


NV080WXM-N41 BOE tft lcd module Specifications:

CategorySpecification
Basic InfoBrand: BOE; Model: NV080WXM-N41; Type: a-Si TFT-LCD LCM; Production Status: In mass production
Display ParametersSize: 8.0 inches (diagonal); Resolution: 800(RGB)×1280 (WXGA Vertical); Pixel Density: 188PPI; Aspect Ratio: 5:8
Optical PerformanceTechnology: ADS-IPS (Normally Black, Transmissive); Brightness: 350 cd/m² (Typ.); Contrast: 1000:1 (Typ.); Viewing Angle: 80/80/80/80° (CR≥10); Color: 16.7M colors (8-bit); Gamut: 60% NTSC
Backlight SystemType: WLED; Configuration: 5S4P; Type: Direct-lit; Driver: External; Lifespan: 15,000 hours (Typ.)
InterfaceType: MIPI DSI 1.2; Lanes: 1-channel; Pins: 45-pin FPC; Data Bits: 8-bit
ElectricalInput Voltage: 3.3V (Typ.); Refresh Rate: 60Hz; Response Time: 25ms (Tr+Td); Power Consumption: ≤4.5W
MechanicalActive Area: 107.64×172.224mm; Outline: 113.72×184.01×2.5mm (Typ.); Surface: Matte (Anti-glare); Weight: ~120g
EnvironmentalOperating Temp: 0~50℃; Storage Temp: -30~70℃; Humidity: 5%~95% (non-condensing)
CertificationsRoHS compliant; Touch: No (capacitive touch customizable); Designed For: Consumer electronics, industrial handhelds



NV080WXM-N41 BOE tft lcd module  Applications:

Consumer Electronics: Tablets, e-book readers, portable media players, children's learning machines

Industrial Handheld Terminals: PDA data collectors, barcode scanners, logistics handhelds, inspection devices

Smart Home Control: Smart central control panels, smart speaker displays, smart door locks, video doorbells

Commercial & Retail: Portable POS systems, queue management machines, small digital signage

Medical & Health: Portable blood pressure monitors, glucose meters, health monitors, handheld medical terminals


FAQ:

Q1: Does NV080WXM-N41 have a built-in backlight driver?A1: No, the backlight driver of NV080WXM-N41 needs to be external. We can provide matching backlight driver boards and MIPI to HDMI/VGA driver boards for you to directly connect to computers or other devices.
Q2: Can this screen be customized with capacitive touch function?A2: Yes, we provide capacitive touch screen customization services with various structures such as G+G and G+F, which can be directly bonded with NV080WXM-N41 module to provide an integrated solution.
Q3: What is the lead time for bulk orders? Can you provide samples?A3: Regular bulk orders (100-1000 pieces) ship within 3-5 days. For large orders (over 1000 pieces), please consult 7 days in advance. We can provide 1-2 samples for testing, and the sample fee can be deducted from the bulk order.
