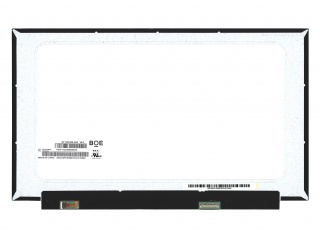

NT156WHM-N44 V8.0  15.6" lcd display screens  for  BOE
NT156WHM-N44 V8.0 15.6" lcd display screens for BOE
Price: $55.00
$51.00/ piece
Add to cart
NT156WHM-N44 V8.0  15.6
BOE NT156WHM-N44 V8.0  15.6
NT156WHM-N44 V8.0  15.6
BOE NT156WHM-N44 V8.0  15.6

NT156WHM-N44 V8.0 15.6" lcd display screens for BOE

Price: $55.00
$51.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

NT156WHM-N44 V8.0 15.6" lcd display screens for BOE

Product Information Product Specifications
Model:
NT156WHM-N44 V8.0
Brand:
BOE
Application:
Tablet
Size:
15.6"
Resolution:
1366(RGB)×768, WXGA 100PPI
Brightness:
220 cd/m² (Typ.)
Contrast Ratio:
400:1 (Typ.) (TM)
Viewing Angle:
6 o'clock
Lamp Type:
a-Si TFT-LCD, LCM
Signal Interface:
eDP (1 Lane) , eDP1.2 , RBR (1.62G/lane) , 30 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
105
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.500 KG
Overview

Product Introduction

The BOE NT156WHM-N44 V8.0 is a 15.6-inch a-Si TFT-LCD LCM display designed for laptop applications. It features a WXGA resolution of 1366 × 768, a transmissive normally white TN display mode, WLED backlighting, and an eDP interface. With a typical brightness of 220 cd/m², a 400:1 contrast ratio, and a maximum power consumption of 3.0 W, this panel is suitable for integration into compatible notebook computer and mobile computing systems.

Key Features

  • 6-inch a-Si TFT-LCD LCM with a 1366 (RGB) × 768 WXGA resolution

  • Transmissive, normally white TN display mode

  • Typical brightness of 220 cd/m² and 400:1 contrast ratio

  • 60 Hz refresh rate with a typical response time of 12 ms

  • WLED backlight with a minimum lifetime of 15,000 hours

  • eDP 1.2 interface with one lane and RBR 1.62 Gbps per lane

  • 262K color depth supporting 6-bit color

  • Operating temperature range of 0 to 50 °C

  • Maximum power consumption of 3.0 W

  • Compact outline dimensions of 350.68 × 216.24 mm

Technical Specifications

Panel ModelNT156WHM-N44 V8.0
Panel Typea-Si TFT-LCD, LCM
Display Size15.6
Resolution1366(RGB)×768, WXGA
Pixel Pitch0.084×0.252 mm (H×V)
Application FieldLaptop
Operating Temperature0 ~ 50 °C
Storage Temperature-20 ~ 60 °C
Brightness220
Contrast Ratio400:1 (Typ.) (Transmissive)
Response Time12 (Typ.)(Tr+Td) ms
Viewing Angle45/45/20/40 (Typ.)(CR≥10)
Color Depth262K (6-bit)
Color Temperature6485K
Display ModeTN, Normally White, Transmissive
Refresh Rate60Hz
sRGB Coverage63% coverage (CIE 1931)
Outline Dimension350.68×216.24 mm (H×V)
Active Area344.232×193.536 mm (H×V)
Weight360g (Max.)
Voltage27.0V (Max.)
Power Consumption3.0W (Max.)
Backlight TypeWLED
Backlight Lifetime15K (Min.) hrs
InterfaceeDP (1 Lane), eDP1.2, RBR (1.62G/lane) Logic Voltage -

Applications

  • Laptop computers

  • Notebook computer display assemblies

  • Portable computing systems

  • Business and commercial notebook upgrades

  • Mobile workstation display systems

Frequently Asked Questions

Q1: What display resolution does the NT156WHM-N44 V8.0 provide?

A: The panel provides a 1366 (RGB) × 768 WXGA resolution with a pixel pitch of 0.084 × 0.252 mm.

Q2: What interface is used by this display?

A: It uses an eDP interface compliant with eDP 1.2, featuring one lane with RBR operation at 1.62 Gbps per lane.

Q3: What is the backlight configuration?

A: The display uses a WLED backlight rated for a minimum lifetime of 15,000 hours.

Q4: What are the operating and storage temperature ranges?

A: The operating temperature range is 0 to 50 °C, while the storage temperature range is -20 to 60 °C.

Q5: Is this panel intended for laptop applications?

A: Yes. The NT156WHM-N44 V8.0 is specifically designed for laptop and compatible notebook computer display applications.
