NEC NL8060BC31-47E 12.1" 800x600 SVGA Industrial TFT LCD Panel
NEC NL8060BC31-47E 12.1" 800x600 SVGA Industrial TFT LCD Panel
Price: $118.00
$113.00/ piece
Add to cart

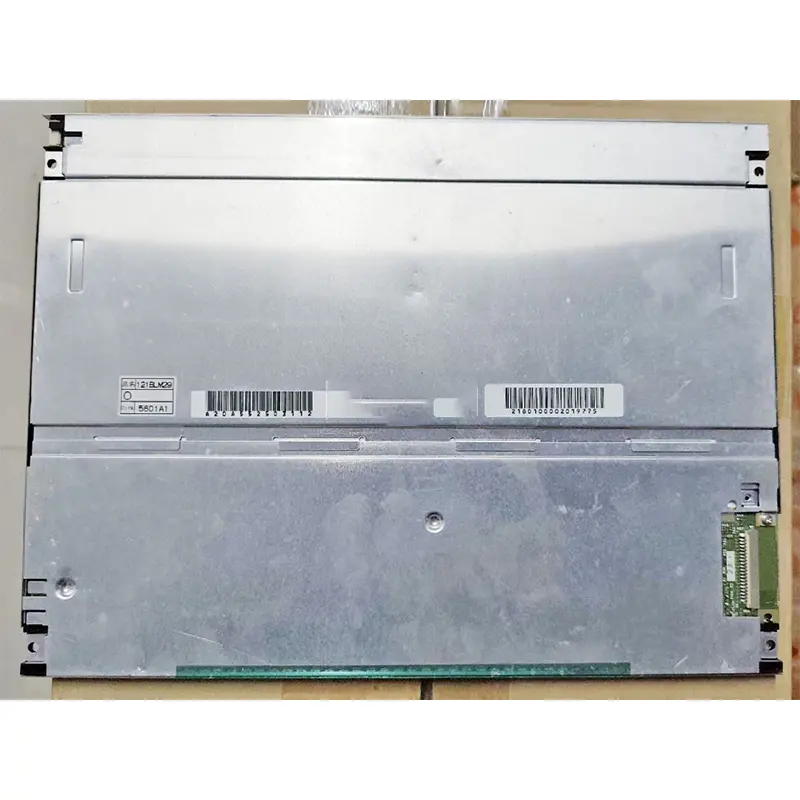

NEC NL8060BC31-47E 12.1 inch 800x600 SVGA industrial LCD panel front view
NEC NL8060BC31-47E 12.1 inch 800x600 SVGA industrial LCD panel front view

NEC NL8060BC31-47E 12.1" 800x600 SVGA Industrial TFT LCD Panel

Price: $118.00
$113.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

NEC NL8060BC31-47E 12.1" 800x600 SVGA Industrial TFT LCD Panel

Product Information Product Specifications
Model:
NL8060BC31-47E
Brand:
KOE/HITACHI
Application:
Industrial
Size:
12.1"
Resolution:
800(RGB)×600, SVGA 82PPI
Brightness:
-
Contrast Ratio:
600:1 (Typ.) (TM)
Viewing Angle:
80/80/80/60 (Typ.)(CR≥10)
Lamp Type:
TN, Normally White, Transmissive
Signal Interface:
LVDS (1 ch, 6/8-bit)
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
1
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.000 KG
Overview

Product Introduction

The NEC NL8060BC31-47E (manufactured by NEC, now operating under NLT Technologies) is a rugged 12.1-inch TFT LCD panel engineered specifically for mission-critical industrial environments. Delivering a sharp 800x600 (SVGA) resolution in a classic 4:3 aspect ratio, this display provides the expansive viewing area required for complex Human Machine Interfaces (HMI), CNC machining centers, and marine navigation systems. Unlike standard commercial monitors that fail under extreme conditions, the NL8060BC31-47E features an extended wide-temperature range and superior vibration resistance, ensuring uninterrupted operation on factory floors, offshore rigs, and agricultural machinery. As original NEC 12.1-inch panels become increasingly scarce, sourcing genuine replacements is vital to avoid costly system redesigns. At ZY LCD Shop, every NL8060BC31-47E unit undergoes rigorous testing for pixel perfection, backlight uniformity, and signal integrity. Restore your heavy-duty equipment today with our guaranteed authentic, drop-in replacement modules.

Core Product Features

  • Heavy-Duty Industrial Reliability: Engineered by NEC/NLT to withstand continuous 24/7 operation, severe mechanical vibration, and electromagnetic interference (EMI) in harsh factory settings.

  • Expansive 12.1" SVGA Canvas: 800x600 resolution across a 12.1-inch diagonal allows operators to view complex PLC ladder logic, detailed CAD drawings, and multi-window dashboards without excessive scrolling.

  • Extended Wide-Temperature Range: Optimized liquid crystals and thermal management prevent "blackening" or sluggish response times in unheated warehouses, outdoor enclosures, or high-heat processing plants.

  • High-Contrast Optical Performance: Advanced polarizer films ensure deep blacks and vibrant colors, maintaining readability even under intense overhead industrial lighting or direct ambient glare.

  • Standardized Interface Compatibility: Utilizes robust LVDS/CMOS signaling, ensuring seamless integration with legacy industrial motherboards, embedded PCs, and proprietary controller cards.

  • Direct Drop-In Replacement: Maintains exact mechanical dimensions, mounting hole patterns, and bezel thickness for hassle-free installation into existing operator consoles.

Technical Specifications

ParameterSpecification Details
Part NumberNL8060BC31-47E
ManufacturerNEC / NLT Technologies
Diagonal Size12.1 Inch
Native Resolution800 x 600 (SVGA)
Aspect Ratio4:3
Panel Technologya-Si TFT-LCD
Active Area246.0(W) x 184.5(H) mm
Signal InterfaceLVDS / CMOS (Verify Pinout)
Backlight TypeWLED / CCFL (Verify specific revision)
Operating Temperature-20°C to +70°C (Wide Temp Industrial Grade)
Target ApplicationCNC Machines, Marine Navigation, Heavy Machinery HMI

Typical Applications

  • CNC Machining Centers & Lathe Operator Consoles

  • Marine Chartplotters, Radar Displays & Ship Bridge Systems

  • Heavy Construction Equipment & Agricultural Tractor Monitors

  • Factory Automation, PLC Control Cabinets & SCADA Systems

  • Medical Diagnostic Carts & Mobile Nursing Workstations

Why Source from ZY LCD Shop?

  • Legacy Industrial Specialists: We maintain climate-controlled inventory of rare, discontinued NEC/NLT 12.1-inch panels that are critical for repairing expensive heavy machinery.

  • Strict Environmental Testing: Every NL8060BC31-47E is tested for backlight aging, contrast degradation, and signal stability to guarantee performance in demanding industrial environments.

  • Heavy-Duty Transit Packaging: Large-format 12.1-inch glass substrates require specialized protection. We use custom EPE foam, anti-static bags, and reinforced cartons to prevent transit damage.

  • Cross-Reference Engineering Support: Upgrading your control cabinet? Our team can help verify mechanical dimensions, mounting hole patterns, and signal interface compatibility against your original broken screen.

FAQ (Frequently Asked Questions)

Can I use the NL8060BC31-47E to replace an older NEC 12.1" screen?

Yes, absolutely. The NL8060BC31-47E is designed as a direct, backward-compatible replacement for earlier revisions in the NEC 12.1-inch SVGA lineup. It shares the same mechanical footprint and electrical characteristics, making it a seamless drop-in upgrade for aging control panels.

What is the difference between NEC and NLT Technologies for this panel?

NEC's LCD division was spun off and renamed NLT Technologies. The NL8060BC31-47E may feature either an NEC or NLT logo depending on the manufacturing year, but both are the exact same genuine OEM product with identical specifications and quality standards.

Is this 12.1" panel suitable for outdoor or unheated environments?

Yes. The NL8060BC31-47E is an industrial-grade panel featuring an extended operating temperature range (typically -20°C to +70°C). This prevents the liquid crystals from freezing or sluggish response in cold environments, and avoids isotropic blackening in high-heat conditions.

Where can I download the NL8060BC31-47E datasheet and pinout definition?

We provide the official NEC/NLT PDF datasheet, including precise mechanical outlines, active area dimensions, and LVDS/CMOS pin configurations, to verified buyers. Please contact our technical support department directly via email or phone to request your copy.

Does this panel come with a touchscreen digitizer attached?

The NL8060BC31-47E is supplied as a raw LCD panel module. It does not include a resistive or capacitive touch overlay. If your application requires touch functionality, you will need to source a compatible 12.1-inch 4:3 touch frame or optically bond a touch glass to the surface.

Do you offer bulk pricing for CNC manufacturers and fleet maintenance teams?

Absolutely. We actively support B2B wholesale orders for heavy equipment manufacturers, automation integrators, and industrial repair depots. Reach out to our sales department for custom tiered pricing based on your project's volume requirements.

    Product Comparison
    Model:
    Size:
    Resolution:
    Brightness:
    Contrast Ratio:
    Viewing Angle:
    Lamp Type:
    Signal Interface:
    Panel Type:
    NEC NL8060BC31-47E 12.1" 800x600 SVGA Industrial TFT LCD Panel

    NEC NL8060BC31-47E 12.1" 800x600 SVGA Industrial TFT LCD Panel

    NL8060BC31-47E

    12.1"
    800(RGB)×600, SVGA 82PPI
    -
    600:1 (Typ.) (TM)
    80/80/80/60 (Typ.)(CR≥10)
    TN, Normally White, Transmissive
    LVDS (1 ch, 6/8-bit)
    a-Si TFT-LCD, LCM
    NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module

    NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module

    NL8060BC31-51C

    12.1"
    800(RGB)×600, 4:3, SVGA
    900 cd/m² (Typ.)
    1000:1 (Typ.) (TM)
    80/80/80/80 (Typ.)(CR≥10)
    5 strings WLED, 70K hrs, No Driver
    LVDS (1 ch, 6/8-bit), 20 pins Connector
    a-Si TFT-LCD, LCM
    NL8060BC31-41C NEC 12.1 inch 800*600 lcd display screens

    NL8060BC31-41C NEC 12.1 inch 800*600 lcd display screens

    NL8060BC31-41C

    12.1"
    800(RGB)×600, SVGA, 4:3
    550 cd/m² (Typ.)
    600:1 (Typ.) (TM)
    80/80/80/60 (Typ.)(CR≥10)
    2 pcs CCFL, Without Driver
    LVDS (1 ch, 6/8-bit), 20 pins Connector
    a-Si TFT-LCD, LCM
    NL8060BC31-47E is a 12.1" a-Si TFT-LCD, LCM Display screen Product from KOE/HITACHI.According to KOE/HITACHI's product specification sheet,NL8060BC31-47E display has a resolution of 800(RGB)×600, SVGA 82PPI, Contrast Ratio is 600:1 (Typ.) (TM),Viewing Angle is 80/80/80/60 (Typ.)(CR≥10),Lamp Type is TN, Normally White, Transmissive,Signal Interface is LVDS (1 ch, 6/8-bit),Brightness is -.Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of NL8060BC31-47E after packaging is 2.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
