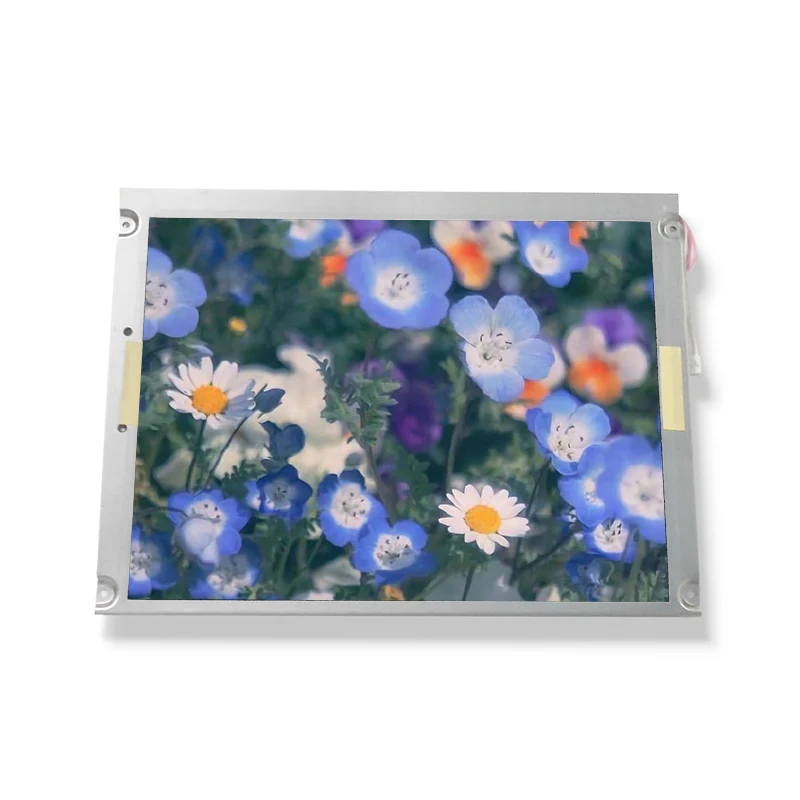

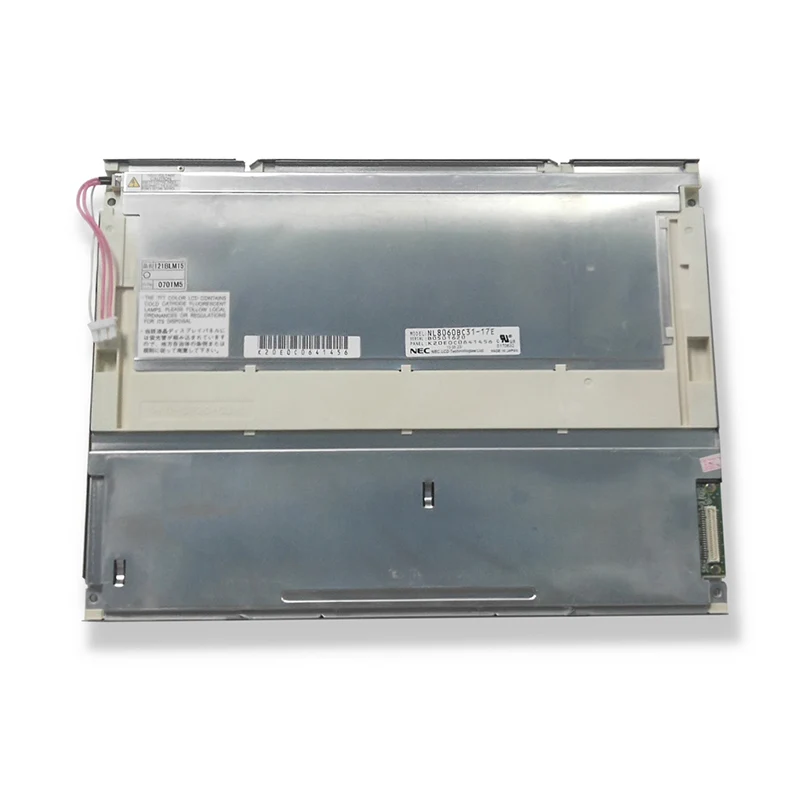

NEC NL8060BC31-17E 12.1-Inch TFT LCD Panel 800×600 Industrial Display Module
NEC NL8060BC31-17E 12.1-Inch TFT LCD Panel 800×600 Industrial Display Module
Price: $105.00
$100.00/ piece
Add to cart
NL8060BC31-17E
NL8060BC31-17E
NL8060BC31-17E
NL8060BC31-17E

NEC NL8060BC31-17E 12.1-Inch TFT LCD Panel 800×600 Industrial Display Module

Price: $105.00
$100.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

NEC NL8060BC31-17E 12.1-Inch TFT LCD Panel 800×600 Industrial Display Module

Product Information Product Specifications
Model:
NL8060BC31-17E
Brand:
NEC
Application:
Industrial
Size:
12.1"
Resolution:
800(RGB)×600, SVGA 82PPI
Brightness:
400 cd/m2 (Typ.)
Contrast Ratio:
350 : 1 (Typ.) (TM)
Viewing Angle:
55/55/40/50 (Typ.)(CR≥10)
Lamp Type:
2 pcs CCFL , No Driver
Signal Interface:
CMOS (1 ch, 6-bit) , 41 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
598
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

NEC NL8060BC31-17E 12.1-Inch Industrial TFT LCD Display Module


The NEC NL8060BC31-17E is a 12.1-inch industrial TFT LCD display module designed for industrial computers, factory automation equipment, HMI systems, medical devices, measurement instruments, and legacy LCD replacement applications.

Featuring 800 × 600 SVGA resolution, TN Normally White transmissive TFT technology, CMOS 6-bit RGB interface, and a dual CCFL backlight system, the NL8060BC31-17E provides stable image quality and reliable long-term operation for industrial environments.


Key Features

Original NEC industrial TFT LCD panel

12.1-inch display size

Resolution: 800 × 600 pixels

SVGA display format

4:3 aspect ratio

a-Si TFT active matrix technology

TN Normally White transmissive mode

262K display colors

RGB vertical stripe pixel arrangement

CMOS 1-channel 6-bit RGB interface

41-pin connector

400 cd/m² brightness

350:1 contrast ratio

Dual CCFL backlight system


Technical Specifications

SpecificationDetails
ModelNL8060BC31-17E
ManufacturerNEC
Display Size12.1 Inch
LCD Typea-Si TFT-LCD
Resolution800 × 600 pixels
Display FormatSVGA
Aspect Ratio4:3
Display ModeTN Normally White Transmissive
Display Colors262K
Pixel ArrangementRGB Vertical Stripe
Active Area246.0 × 184.5 mm
Pixel Pitch0.3075 × 0.3075 mm
Brightness400 cd/m² (Typ.)
Contrast Ratio350:1 (Typ.)
Viewing Angle55/55/40/50 (L/R/U/D)
Response Time15/55 ms (Typ.)
Refresh Rate60Hz
InterfaceCMOS RGB
Interface Type1 Channel 6-bit
Connector41-pin
Input Voltage3.3V / 5.0V
Backlight TypeCCFL
Backlight Quantity2 Lamps
InverterExternal
Surface TreatmentClear + 3H Hard Coating

Typical Applications

NEC NL8060BC31-17E is suitable for:

Industrial PC displays

Factory automation systems

PLC control panels

HMI operator interfaces

CNC machine displays

Medical equipment

Measurement instruments

Embedded industrial computers

Transportation control systems

Legacy equipment repair projects


Why Choose NEC NL8060BC31-17E?

Original NEC industrial LCD quality

Classic 12.1-inch SVGA display format

Stable CMOS RGB interface

High brightness 400 cd/m² output

Reliable CCFL backlight structure

Suitable for long-life industrial equipment

Excellent replacement solution for discontinued LCD modules

Supports industrial maintenance and repair projects


Quality Assurance

Original NEC NL8060BC31-17E LCD module

100% display function testing

Pixel defect inspection

Brightness testing

RGB signal verification

CCFL backlight inspection

Connector inspection

Anti-static protective packaging

Global industrial LCD supply support


FAQ

What is the resolution of NEC NL8060BC31-17E?

NEC NL8060BC31-17E features 800 × 600 SVGA resolution.

What interface does NL8060BC31-17E use?

It uses a CMOS RGB 1-channel 6-bit interface with a 41-pin connector.

What backlight does NL8060BC31-17E use?

It uses a dual CCFL backlight system without built-in inverter.

Is NL8060BC31-17E suitable for industrial applications?

Yes. It was designed for industrial PC and embedded industrial display applications.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
NEC NL8060BC31-17E 12.1-Inch TFT LCD Panel 800×600 Industrial Display Module

NEC NL8060BC31-17E 12.1-Inch TFT LCD Panel 800×600 Industrial Display Module

NL8060BC31-17E

12.1"
800(RGB)×600, SVGA 82PPI
400 cd/m2 (Typ.)
350 : 1 (Typ.) (TM)
55/55/40/50 (Typ.)(CR≥10)
2 pcs CCFL , No Driver
CMOS (1 ch, 6-bit) , 41 pins Connector
a-Si TFT-LCD, LCM
NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module

NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module

NL8060BC31-51C

12.1"
800(RGB)×600, 4:3, SVGA
900 cd/m² (Typ.)
1000:1 (Typ.) (TM)
80/80/80/80 (Typ.)(CR≥10)
5 strings WLED, 70K hrs, No Driver
LVDS (1 ch, 6/8-bit), 20 pins Connector
a-Si TFT-LCD, LCM
NL8060BC31-41C NEC 12.1 inch 800*600 lcd display screens

NL8060BC31-41C NEC 12.1 inch 800*600 lcd display screens

NL8060BC31-41C

12.1"
800(RGB)×600, SVGA, 4:3
550 cd/m² (Typ.)
600:1 (Typ.) (TM)
80/80/80/60 (Typ.)(CR≥10)
2 pcs CCFL, Without Driver
LVDS (1 ch, 6/8-bit), 20 pins Connector
a-Si TFT-LCD, LCM
NL8060BC31-17E is a 12.1" a-Si TFT-LCD, LCM Display screen Product from NEC.According to NEC's product specification sheet,NL8060BC31-17E display has a resolution of 800(RGB)×600, SVGA 82PPI, Contrast Ratio is 350 : 1 (Typ.) (TM),Viewing Angle is 55/55/40/50 (Typ.)(CR≥10),Lamp Type is 2 pcs CCFL , No Driver,Signal Interface is CMOS (1 ch, 6-bit) , 41 pins Connector,Brightness is 400 cd/m2 (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of NL8060BC31-17E after packaging is 1.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
