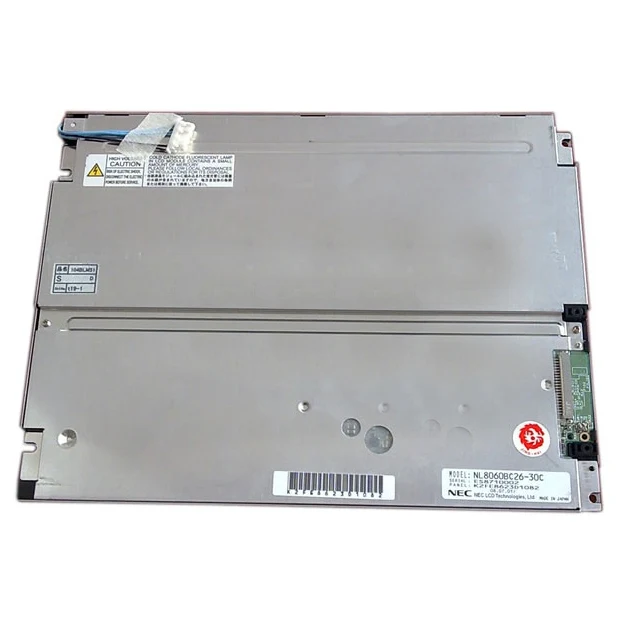

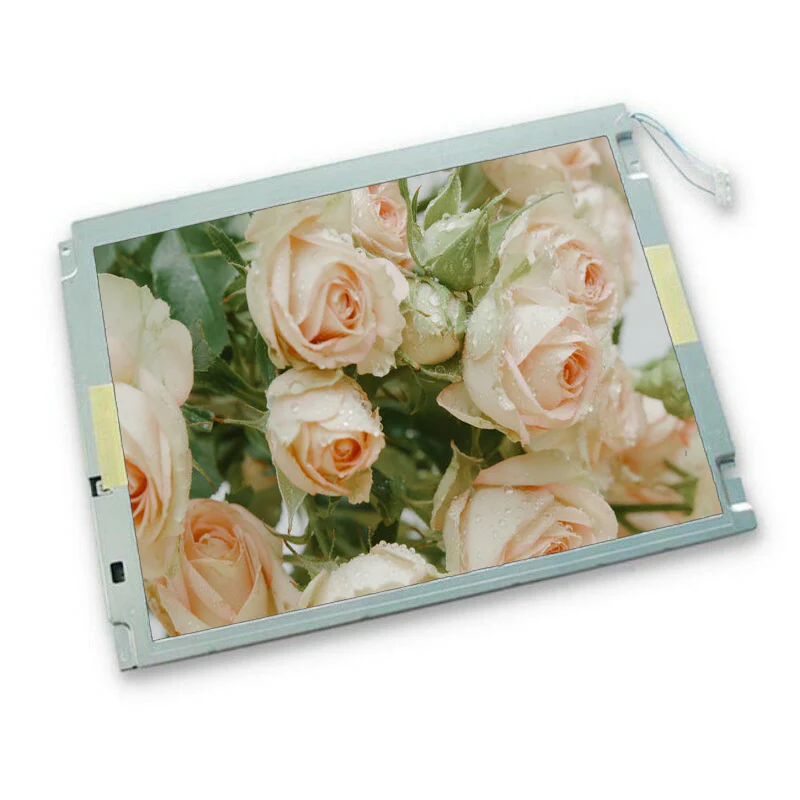

NEC NL8060BC26-30C 10.4-Inch 800×600 Industrial Display LCD Panel
NEC NL8060BC26-30C 10.4-Inch 800×600 Industrial Display LCD Panel
Price: $180.00
$160.00/ piece
Add to cart
NL8060BC26-30C
NL8060BC26-30C
NL8060BC26-30C
NL8060BC26-30C

NEC NL8060BC26-30C 10.4-Inch 800×600 Industrial Display LCD Panel

Price: $180.00
$160.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

NEC NL8060BC26-30C 10.4-Inch 800×600 Industrial Display LCD Panel

Product Information Product Specifications
Model:
NL8060BC26-30C
Brand:
NEC
Application:
Industrial
Size:
10.4"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
95
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

NEC NL8060BC26-30C 10.4-Inch Industrial TFT LCD Display Module


The NEC NL8060BC26-30C is a 10.4-inch industrial TFT-LCD module designed for industrial computers, HMI systems, factory automation equipment, medical devices, and professional display applications requiring long-term stable operation.

Featuring 800 × 600 SVGA resolution, TN Normally White transmissive technology, LVDS 1-channel interface, and a dual CCFL backlight system, the NL8060BC26-30C provides high brightness, wide viewing angle performance, and excellent reliability for industrial display replacement projects.


Key Features

Original NEC Display Solutions TFT LCD module

10.4-inch industrial display size

Resolution: 800 × 600 pixels (SVGA)

4:3 aspect ratio

a-Si TFT active matrix technology

TN Normally White transmissive mode

262K / 16.7M display colors

RGB vertical stripe pixel arrangement

LVDS 1-channel 6/8-bit interface

20-pin LVDS connector

550 cd/m² high brightness

900:1 contrast ratio

Wide viewing angle

Dual CCFL backlight

50,000-hour backlight lifetime

Anti-reflective surface treatment

2H hard coating

Landscape orientation

Wide temperature operation

Designed for industrial applications


Technical Specifications

SpecificationDetails
ModelNL8060BC26-30C
ManufacturerNEC
Display Size10.4 Inch
LCD Typea-Si TFT-LCD
Resolution800 × 600 pixels
Display FormatSVGA
Aspect Ratio4:3
Display ModeTN, Normally White, Transmissive
Display Colors262K / 16.7M
Pixel ArrangementRGB Vertical Stripe
Active Area211.2 × 158.4 mm
Pixel Pitch0.264 × 0.264 mm
Brightness550 cd/m² (Typ.)
Contrast Ratio900:1 (Typ.)
Viewing Angle80/80/80/80 (Typ.)
Response Time3/15 ms (Typ.)
Refresh Rate60Hz
InterfaceLVDS
Interface Type1 Channel 6/8-bit
Connector20-pin
Input Voltage3.3V
Backlight TypeCCFL

Typical Applications

NEC NL8060BC26-30C is suitable for:

Industrial HMI control panels

Factory automation systems

PLC operator interfaces

Industrial PCs

CNC machine displays

Medical equipment monitors

Measurement instruments

Transportation equipment

Embedded control systems

Legacy industrial LCD replacement projects


Why Choose NEC NL8060BC26-30C?

Original NEC industrial LCD quality

High brightness 550 cd/m² display

Standard 10.4-inch SVGA format

Stable LVDS digital interface

Wide operating temperature range

Long-life CCFL backlight design

Excellent replacement option for discontinued industrial LCD panels

Suitable for demanding industrial environments


Quality Assurance

Original NEC NL8060BC26-30C LCD module

100% display function testing

Pixel defect inspection

LVDS signal verification

Brightness testing

Backlight inspection

Connector inspection

Anti-static protective packaging

Worldwide industrial LCD supply


FAQ

What is the resolution of NEC NL8060BC26-30C?

The NL8060BC26-30C features 800 × 600 SVGA resolution.

What interface does NL8060BC26-30C use?

It uses a LVDS 1-channel 6/8-bit interface with a 20-pin connector.

What backlight does NL8060BC26-30C use?

The panel uses a dual CCFL backlight system with approximately 50,000-hour lifetime.

Is NL8060BC26-30C suitable for industrial equipment?

Yes. It is designed for industrial computers, automation systems, and professional display applications requiring high reliability.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
NEC NL8060BC26-30C 10.4-Inch 800×600 Industrial Display LCD Panel

NEC NL8060BC26-30C 10.4-Inch 800×600 Industrial Display LCD Panel

NL8060BC26-30C

10.4"
NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module

NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module

NL8060BC31-51C

12.1"
800(RGB)×600, 4:3, SVGA
900 cd/m² (Typ.)
1000:1 (Typ.) (TM)
80/80/80/80 (Typ.)(CR≥10)
5 strings WLED, 70K hrs, No Driver
LVDS (1 ch, 6/8-bit), 20 pins Connector
a-Si TFT-LCD, LCM
NL8060BC31-41C NEC 12.1 inch 800*600 lcd display screens

NL8060BC31-41C NEC 12.1 inch 800*600 lcd display screens

NL8060BC31-41C

12.1"
800(RGB)×600, SVGA, 4:3
550 cd/m² (Typ.)
600:1 (Typ.) (TM)
80/80/80/60 (Typ.)(CR≥10)
2 pcs CCFL, Without Driver
LVDS (1 ch, 6/8-bit), 20 pins Connector
a-Si TFT-LCD, LCM
NL8060BC26-30C is a 10.4" Display screen Product from NEC.According to NEC's product specification sheet,NL8060BC26-30C display has a resolution of , Contrast Ratio is ,Viewing Angle is ,Lamp Type is ,Signal Interface is ,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of NL8060BC26-30C after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
