NL2432HC22-40A NLT 3.5" a-Si TFT-LCD LCM 240(RGB)×320 QVGA 113PPI

NL2432HC22-40A NLT 3.5" a-Si TFT-LCD LCM 240(RGB)×320 QVGA 113PPI

Price: $50.00

$48.00/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

NL2432HC22-40A NLT 3.5" a-Si TFT-LCD LCM 240(RGB)×320 QVGA 113PPI

Product Information Product Specifications

Model:

NL2432HC22-40A

Brand:

NLT

Application:

Industrial

Size:

3.5"

Resolution:

240(RGB)×320, QVGA 113PPI

Brightness:

220 cd/m² (Typ.)

Contrast Ratio:

150:1 (Typ.) (TM)15:1 (Typ.) (RF)

Viewing Angle:

35/35/35/35(Typ.)(CR≥10)

Lamp Type:

WLED [6S1P], W/O Driver

Signal Interface:

CMOS(1ch,6-bit)+SPI,45pinsFPC

Panel Type:

a-Si TFT-LCD, LCM

Pixel Format:

RGB Vertical Stripe

Active Area:

53.64(W)×71.52(H) mm

Bezel Opening:

Outline size:

63.5(H)×85(V)×3.2(D) mm

Surface:

Clear,Hardcoating(3H)

Response Time:

Best View on:

12o'clock

Work Mode:

TN, Normally White, Transflective

Display Colors:

262K40%NTSC

Weight:

25.0/28.0g(Typ./Max.)

Frequency:

60Hz

Touchscreen:

Without

Signal Type:

CMOS(1ch,6-bit)+SPI,45pinsFPC

Voltage Supply:

3.0V(Typ.)

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

0.500 KG

Overview

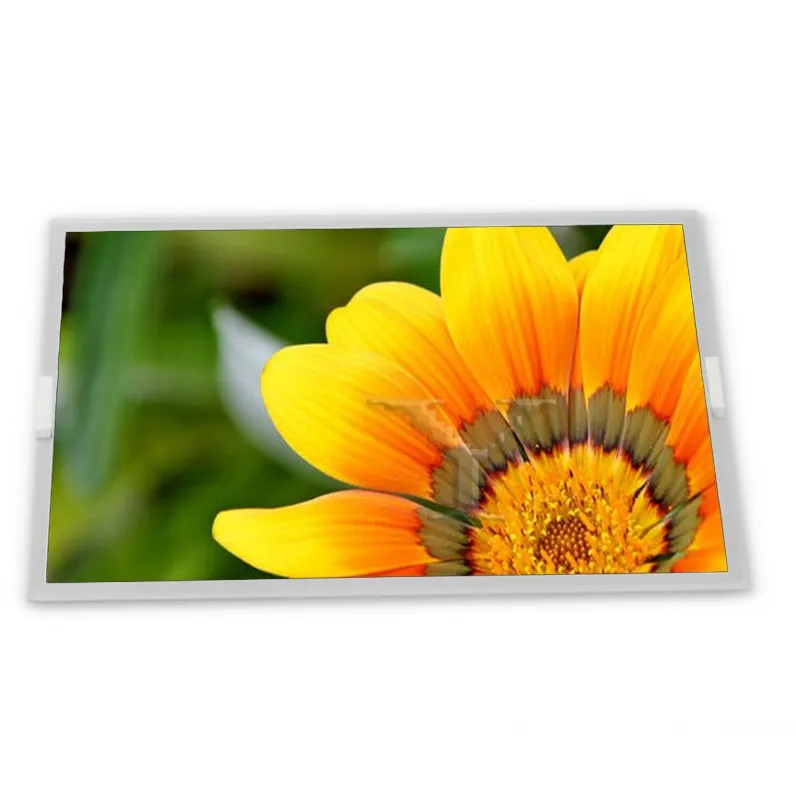

Product display

NL2432HC22-40A is a 3.5" a-Si TFT-LCD, LCM Display screen Product from NLT.According to NLT's product specification sheet,NL2432HC22-40A display has a resolution of 240(RGB)×320, QVGA 113PPI, Contrast Ratio is 150:1 (Typ.) (TM)15:1 (Typ.) (RF),Viewing Angle is 35/35/35/35(Typ.)(CR≥10),Lamp Type is WLED [6S1P], W/O Driver,Signal Interface is CMOS(1ch,6-bit)+SPI,45pinsFPC,Brightness is 220 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of NL2432HC22-40A after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
