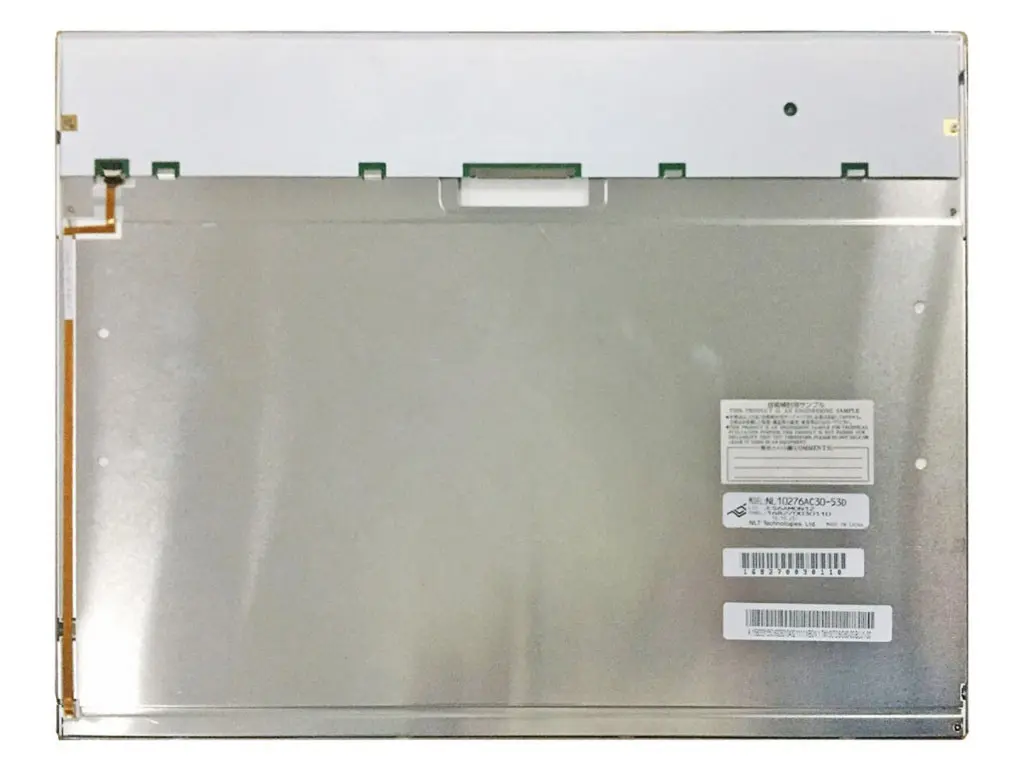

NL10276AC30-53D NLT 15inch 1024*768 lcd display panel
NL10276AC30-53D NLT 15inch 1024*768 lcd display panel
Price: $225.00
$220.00/ piece
Add to cart
NL10276AC30-53D
NL10276AC30-53D
NL10276AC30-53D
NL10276AC30-53D

NL10276AC30-53D NLT 15inch 1024*768 lcd display panel

Price: $225.00
$220.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

NL10276AC30-53D NLT 15inch 1024*768 lcd display panel

Product Information Product Specifications
Model:
NL10276AC30-53D
Brand:
NLT
Application:
Industrial
Size:
15"
Resolution:
1024(RGB)×768, XGA, 4:3
Brightness:
500 cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
80/80/80/80 (Typ.)(CR≥10
Lamp Type:
WLED, With LED Driver
Signal Interface:
LVDS (1 ch, 6/8-bit), 30 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
304.128(H)×228.096(V) mm
Outline:
326.5(H)×253.5(V)×6.8(D) mm
Storage Temp:
-20 ~ 70 °C
Operating Temp:
-20 ~ 70 °C
Support Color:
262K/16.2M, 60% NTSC
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
350
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.500 KG
Overview

NL10276AC30-53D NLT 15inch 1024*768 lcd display panel

NL10276AC30-53D features a standard XGA resolution (1024 × 768 pixels) with a traditional 4:3 aspect ratio, providing a familiar and functional canvas for industrial interfaces. Utilizing a TN (Twisted Nematic) display mode, it achieves a balance of quick response times and reliable color reproduction, supporting up to 16.7 million colors. This panel is specifically noted for its high-brightness output of 450 cd/m², which significantly improves readability in environments with high ambient light. It employs an LVDS (1 ch, 8-bit) signal interface for efficient data processing and features a wide operating temperature range to suit harsh industrial conditions.

NL10276AC30-53D NLT  lcd display panel Highlights:

Enhanced Visibility: Features a high luminance of 500 nits, ensuring the screen remains legible in bright factory or clinical environments.

Industrial-Grade Reliability: Designed for long-term availability and 24/7 continuous operation, making it a staple for medical diagnostics, CNC machinery, and high-end POS systems.

Optimized Contrast: Equipped with a 1000:1 contrast ratio, delivering deep blacks and sharp text clarity for critical data monitoring.

Robust Connectivity: Uses the industry-standard 20-pin LVDS interface, providing excellent EMI resistance and easy integration with existing industrial controllers.

Anti-Glare Treatment: The surface is finished with an Anti-glare (AG) coating to minimize distracting reflections and reduce eye strain for operators.


NL10276AC30-53D NLT  lcd display panel Specifications:

ParameterSpecification Details
ManufacturerNLT Technologies (Tianma Group)
Model NameNL10276AC30-53D
Screen Size15.0 inch
Resolution1024 × 768 (XGA)
Brightness500 cd/m² (Typical)
Contrast Ratio1000:1 (Typical)
Display ModeTN, Normally White, Transmissive
Viewing Angle80/80/80/80 (Typ.)(CR≥10
Interface TypeLVDS (1 ch, 6/8-bit), 30 pins Connector
Backlight TypeWLED, With LED Driver
Operating Temp.-20°C to +70°C
Weight640g (Approx. 50% lighter than legacy models)


NL10276AC30-53D NLT  lcd display panel  Applications:

Point-of-Sale (POS) Terminals

Automated Teller Machines (ATM)

Industrial Factory Automation HMIs

Self-Service Information Kiosks

Diagnostic Medical Imaging Monitors


FAQ:

Q1:Why is the label marked as NLT instead of NEC? Are they fully compatible?

A1:NLT is the company formed after NEC spun off its LCD business. The NL10276AC30-53D is perfectly compatible with the former NEC models, sharing identical dimensions, interfaces, and driving signals.

Q2:Is this screen readable under outdoor sunlight? What is its brightness level?

A2:This model typically features a brightness of 450 cd/m², which is ideal for bright indoor environments. For direct outdoor sunlight, we recommend adding an enhancement film or inquiring about high-brightness versions.

Q3:Our device will be in production for 5 years. Can you guarantee a stable long-term supply?

A3:This is an industrial-grade long-life panel. Even if the factory issues an EOL (End of Life) notice in the future, we will inform you in advance and provide alternative options or buffer stock.



Related Product Links:NL128102AC28-01  NEC   18.1  inch lcd display screens


Click here to learn more about NEC displays:NEC displays



NL10276AC30-53D is a 15" a-Si TFT-LCD, LCM Display screen Product from NLT.According to NLT's product specification sheet,NL10276AC30-53D display has a resolution of 1024(RGB)×768, XGA, 4:3, Contrast Ratio is 1000:1 (Typ.) (TM),Viewing Angle is 80/80/80/80 (Typ.)(CR≥10,Lamp Type is WLED, With LED Driver,Signal Interface is LVDS (1 ch, 6/8-bit), 30 pins Connector,Brightness is 500 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of NL10276AC30-53D after packaging is 2.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
