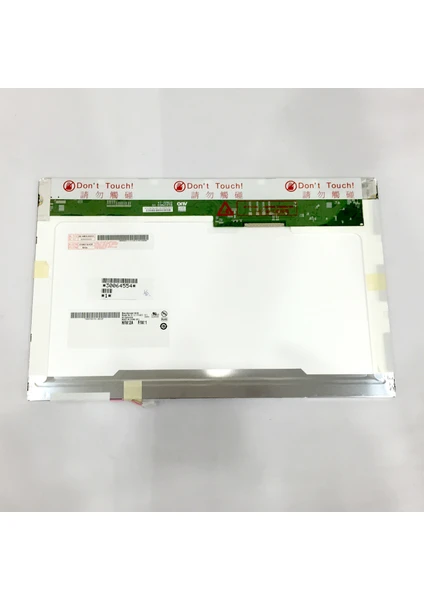

n141c3-l07 innolux 14.1 inch tft lcd module

Name: n141c3-l07 innolux 14.1 inch tft lcd module
Brand: INNOLUX
Price: 150.0 USD

Price: $155.00

$150.00/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Q&A Reviews

n141c3-l07 innolux 14.1 inch tft lcd module

Data sheets：

n141c3-l07 innolux 14.1 inch tft lcd module.pdf

Product Information Product Specifications

Model:

n141c3-l07

Brand:

INNOLUX

Application:

Tablet

Size:

14.1"

Resolution:

1440*900

Brightness:

220

Contrast Ratio:

450:1

Viewing Angle:

45/45/20/45

Lamp Type:

CCFL

Signal Interface:

30 pins

Panel Type:

a-Si TFT-LCD, LCM

Frame Rate:

60Hz

Active Area:

303.48×189.675

Outline:

319.5×205.5 ×5.5

Storage Temp:

-20 ~ 60 °C

Operating Temp:

0 ~ 50 °C

Support Color:

262K

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

115

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

2.000 KG

Overview

n141c3-l07 innolux 14.1 inch tft lcd module

The Innolux N141C3-L07 is a high-performance 14.1-inch TFT LCD module engineered to deliver exceptional visual clarity and reliable operation for embedded applications. It utilizes advanced display technology to produce vibrant colors, high contrast, and wide viewing angles, ensuring excellent readability. This module is designed for seamless integration into a diverse range of equipment, including industrial automation systems, medical devices, point-of-sale terminals, and transportation displays. Its robust construction guarantees consistent performance even in demanding operating environments. By incorporating the N141C3-L07, manufacturers gain a dependable, cost-effective display solution that enhances the user experience and value of their end products.

n141c3-l07 is a 14.1" a-Si TFT-LCD, LCM Display screen Product from INNOLUX.According to INNOLUX's product specification sheet,n141c3-l07 display has a resolution of 1440*900, Contrast Ratio is 450:1,Viewing Angle is 45/45/20/45,Lamp Type is CCFL,Signal Interface is 30 pins,Brightness is 220.Based on its characteristics, this model is recommended for application in Tablet and other products.The weight of n141c3-l07 after packaging is 2.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.

Questions & Answers

Ask a Question >

All (5) uncategorised (5) Package (0) Delivery (0) Payment (0) After Sale (0)

What is the backlight type and lifespan of this display?

The n141c3-l07 uses an LED backlight. This is a long-life backlight solution with a typical lifespan often reaching 30,000 to 50,000 hours or more, depending on the operating environment and brightness settings. LED backlights also offer the advantages of low power consumption and being environmentally friendly.

My device originally had the n141c3-l07 screen, and I want to replace it. What should I pay attention to? Are there any directly compatible models?

When replacing, focus on the following: 1. Physical dimensions and mounting holes; 2. The resolution must be the same (1440x900); 3. The interface type and pin definition must match exactly; 4. Backlight voltage and driving parameters. While there may be compatible screens from other brands or models, it is highly recommended to use the original model or consult a professional supplier to ensure 100% compatibility.

What types of devices is this screen typically used in?

With its 14.1-inch size, high 1440x900 resolution, and reliable performance, it is well-suited for industrial control systems, advanced HMI panels, test and measurement equipment, medical display units, and other professional fields that require high display precision.

What interface does the n141c3-l07 use? Is it the same as a standard HDMI interface?

No, it is not the same. The n141c3-l07 uses a single-channel LVDS (2*20 Pin) interface. This is a common internal interface in industrial, medical, and commercial display fields, used to connect the driver board and the mainboard. It is not plug-and-play like HDMI and requires a dedicated controller or driver board.

What are the main specifications and features of the Innolux n141c3-l07 display?

This is a 14.1-inch TFT LCD module that uses mainstream LED backlighting. Its key specifications include: a high WXGA+ (1440x900) resolution, a 16:10 aspect ratio, a brightness of220 cd/m², a high contrast ratio of 450:1, and an LVDS signal interface. The high resolution is its main feature.
