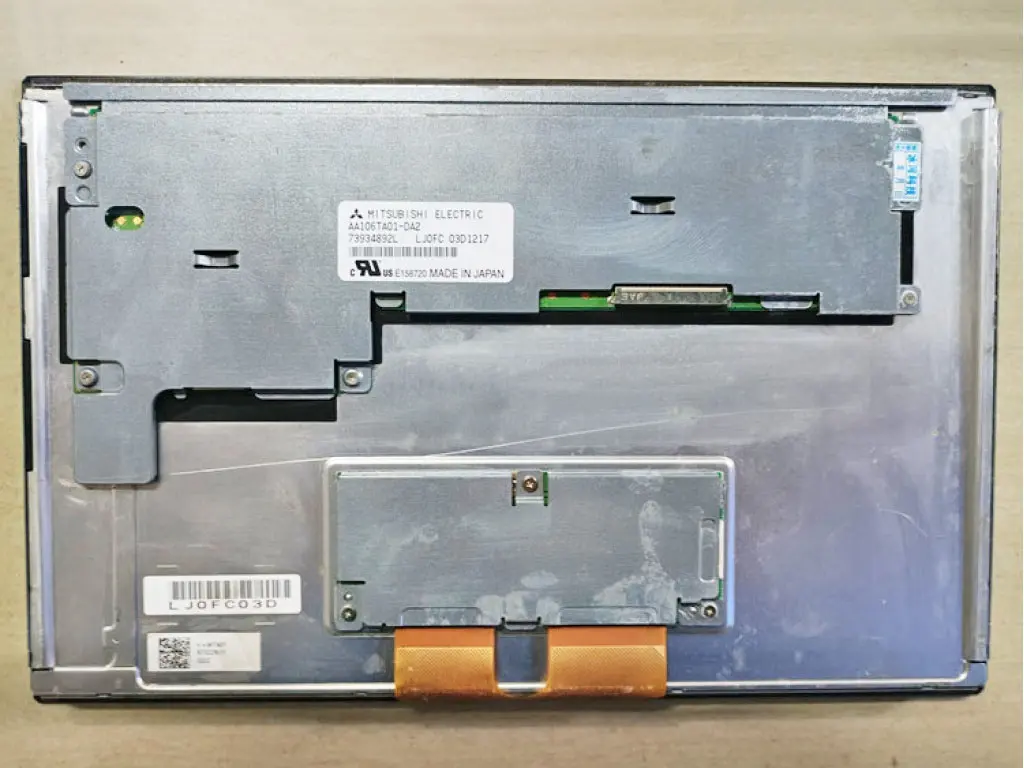

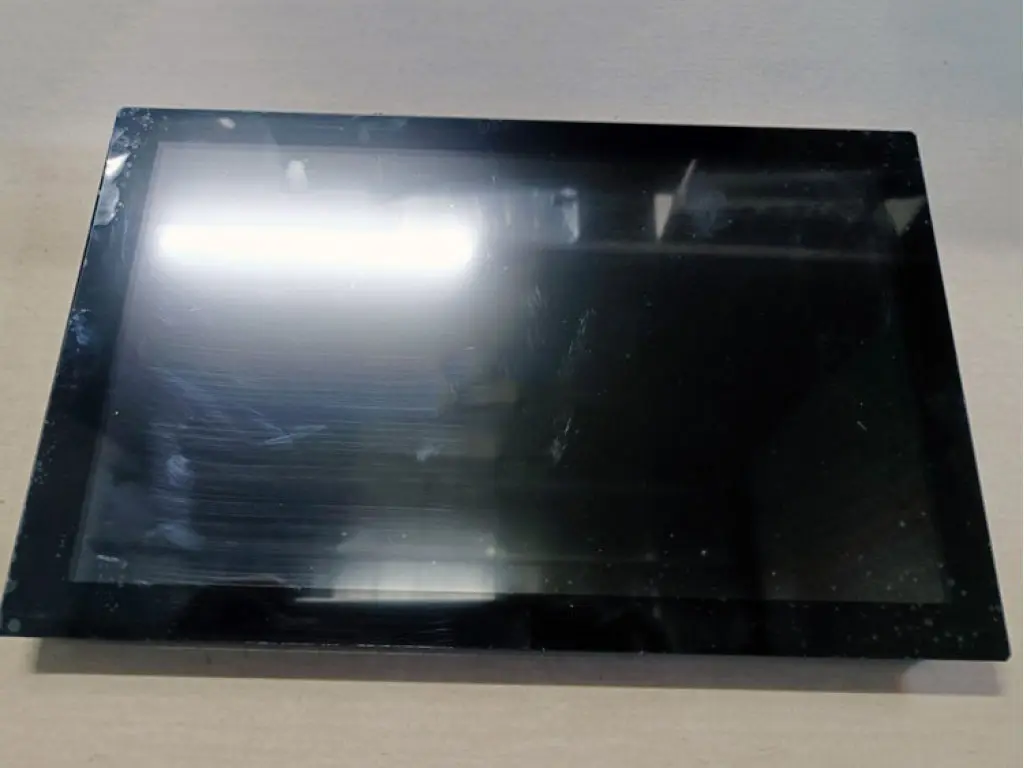

Mitsubishi AA106TA01-DA2 10.6"1280×768 Industrial LCD Display Panel

Product Overview

The AA106TA01-DA2 is a 10.6" industrial LCD display panel manufactured by Mitsubishi, featuring 240x400 resolution with WLED backlight and LVDS interface. With 150 cd/m² brightness and 80:1 contrast ratio, viewing angle 88/88/88/88, supporting 65K/262K/16.7M colors, designed for handheld devices and embedded display applications.

Specifications

Applications

Handheld devices

Embedded systems displays

Portable instruments

Wearable devices

Point-of-sale terminals

Small appliance displays

FAQ:

Q1: What are the core specifications of the Mitsubishi AA106TA01-DA2 LCD screen?
A1: This LCD screen features a 10.6-inch display size with a resolution of 1280×768, a 15:9 aspect ratio (widescreen), and typically uses an LVDS signal interface, making it suitable for industrial applications requiring widescreen displays.

Q2: What is the difference between the AA106TA01-DA2 and the previous DA1 or CA1 versions?
A2: Their core size and resolution (10.6-inch, 1280×768) are exactly the same. The suffix “DA2” represents a hardware revision by Mitsubishi, and the differences usually lie in minor adjustments to the backlight module (e.g., LED strip specification changes), brightness variations, or alterations to the LVDS connector pinout/bit-depth definitions. When repairing or replacing, you cannot assume 100% pin compatibility; you must verify the official datasheet for the DA2 version.

Q3: What are the advantages of the 1280×768 non-standard resolution in industrial displays?
A3: The 1280×768 (15:9 ratio) provides more horizontal display space than traditional 4:3 screens. In industrial HMIs, medical instruments, or portable test equipment, this widescreen ratio is highly suitable for displaying instrument data, waveforms, or operation menus side-by-side, thereby improving operational efficiency.
