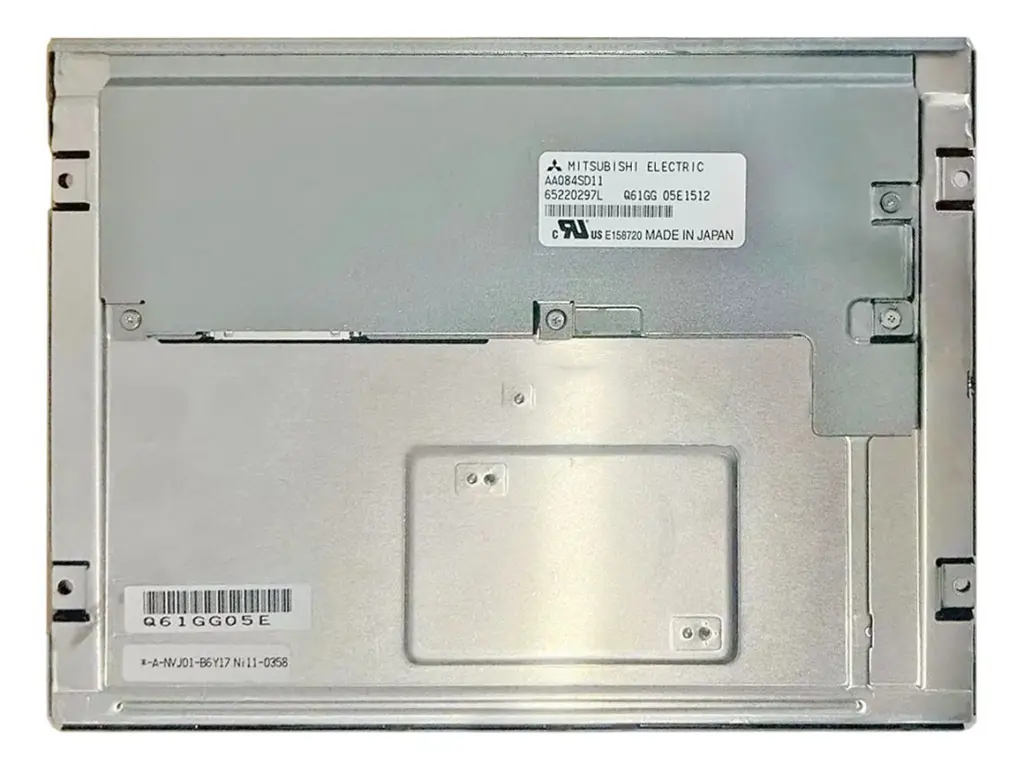

Mitsubishi AA084SD11 8.4" Industrial LCD Display Panel 800×600 LVDS

Product Overview

The AA084SD11 is a 8.4" industrial LCD display panel manufactured by Mitsubishi, featuring 240x400 resolution with WLED backlight and LVDS interface. With 150 cd/m² brightness and 80:1 contrast ratio, viewing angle 88/88/88/88, supporting 65K/262K/16.7M colors, designed for handheld devices and embedded display applications.

Specifications

Applications

Handheld devices

Embedded systems displays

Portable instruments

Wearable devices

Point-of-sale terminals

Small appliance displays

FAQ:

Q1: What are the core specifications of the Mitsubishi AA084SD11 LCD screen?

A1: This LCD screen features an 8.4-inch display size with a resolution of 800×600 (SVGA), a standard 4:3 aspect ratio, and uses an LVDS (Low Voltage Differential Signaling) interface.

Q2: What are the application advantages of an 8.4-inch 800×600 resolution in industrial equipment?
A2: 8.4 inches is a highly classic and popular small-size specification in the industrial sector. The 800×600 4:3 aspect ratio provides clear enough text, icons, and waveform displays within a compact physical space, making it ideal for space-constrained industrial handheld terminals, medical instruments, small PLC/HMI operation panels, and machine tool control modules.

Q3: What is the relationship between the base model AA084SD11 and suffixed versions (like DA2, CA-01)?
A3: AA084SD11 is the base series model, while the suffixes (like DA2, CA-01, DA-01) represent specific hardware revision batches or specification versions within that series. Screens with different suffixes share the same core display parameters but may have minor adjustments in the backlight module (e.g., LED optimizations), connector brand/model, or LVDS pin layouts. For repair replacements, you must verify the datasheet based on the exact suffix of the original unit.
