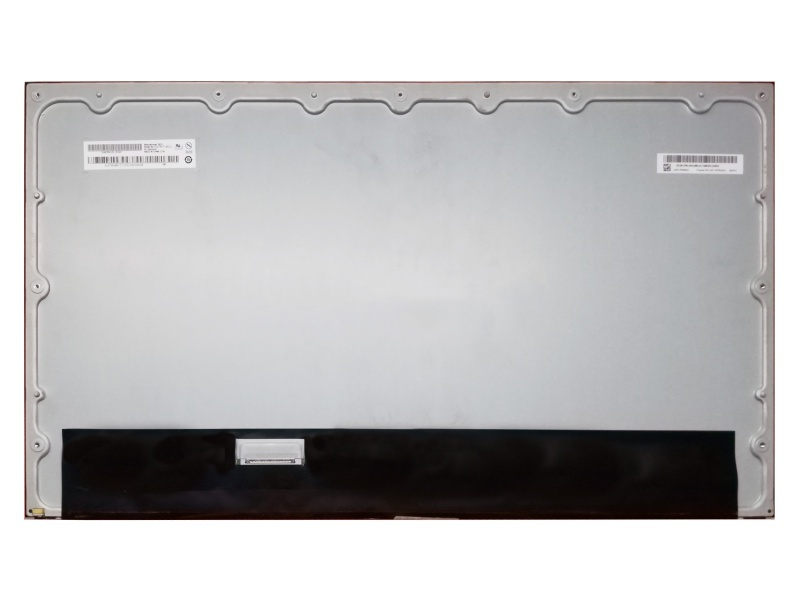

M270HTN02.8 27 inch panel lcd for AUO
M270HTN02.8
27"
1920(RGB)×1080, FHD 81PPI
400 cd/m² (Typ.)
1000:1 (Typ.) (TM)
85/85/80/80 (Typ.)(CR≥10)
18S4P WLED , 30K hours , Without Driver
LVDS (4 ch, 8-bit) , 70 pins Connector
a-Si TFT-LCD, LCM
M270HTN02.E 27 inch lcd display panel for AUO
27"
1920(RGB)×1080, FHD 81PPI
0 cd/m²
1000:1 (Typ.) (TM)
85/85/80/80 (Typ.)(CR≥10)
No B/L , W/O Driver
eDP (4 Lanes) , HBR2 (5.4G/lane) , 40 pins Connector
a-Si TFT-LCD, CELL , FOB
M270HTN02.1 27 inch display modules for AUO
27"
1920(RGB)×1080, FHD 81PPI
300 cd/m² (Typ.)
1000:1 (Typ.) (TM)
85/85/80/80 (Typ.)(CR≥10)
18S4P WLED , 30K hours , Without Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, CELL , FOB
M270HTN02.2 27 inch tft lcd module for AUO
27"
1920(RGB)×1080, FHD 81PPI
400 cd/m² (Typ.)
1000 : 1 (Typ.) (TM)
85/85/80/80 (Typ.)(CR≥10)
18S4P WLED , 30K hours , No Driver
V-by-One 8 lane , Connector 40 pins
a-Si TFT-LCD, LCM
