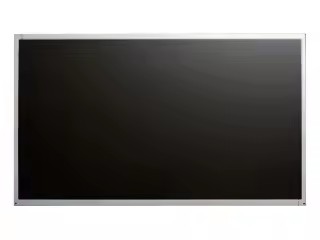

M215HTN01.1 21.5" lcd panel for AUO desktop displays and LCD screens
Price: $100.00
$98.00/ piece
Add to cart
M215HTN01.1   21.5
M215HTN01.1   21.5
M215HTN01.1   21.5
M215HTN01.1   21.5

M215HTN01.1 21.5" lcd panel for AUO desktop displays and LCD screens

Price: $100.00
$98.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

M215HTN01.1 21.5" lcd panel for AUO desktop displays and LCD screens

Product Information Product Specifications
Model:
M215HTN01.1
Brand:
AUO
Application:
Tablet
Size:
21.5"
Resolution:
1920(RGB)×1080, FHD 166PPI
Brightness:
250cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
Symmetry
Lamp Type:
WLED [12S4P] , 30K hours , W/O Driver
Signal Interface:
LVDS (2 ch, 8-bit) , 30 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
120
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.500 KG
Overview

Product Introduction

The AUO M215HTN01.1 is a 21.5-inch a-Si TFT-LCD LCM designed for desktop displays and LCD screens. It delivers 1920 × 1080 Full HD resolution, 250 cd/m² brightness, a typical 1000:1 contrast ratio, and a 75Hz refresh rate. The transmissive, normally white TN panel uses a WLED backlight and a two-channel, 8-bit LVDS interface, making it suitable for professional desktop monitor and display-system integrations.

Key Features

  • 5-inch a-Si TFT-LCD LCM with 1920 × 1080 Full HD resolution

  • 250 cd/m² typical brightness and 1000:1 typical transmissive contrast ratio

  • Typical 3.8/1.2 ms rise/fall response time

  • Wide 75Hz refresh rate for standard desktop display applications

  • TN normally white, transmissive display mode

  • Viewing angles of 85/85/80/80 degrees (typical, CR ≥ 10)

  • 7M color depth using 6-bit + Hi-FRC

  • 95% sRGB coverage based on CIE 1931

  • WLED backlight rated for a minimum lifetime of 30,000 hours

  • Two-channel, 8-bit LVDS interface

  • Operating temperature range of 0 to 50 °C

  • Storage temperature range of -20 to 60 °C

  • Outline dimensions of 495.6 × 292.2 mm with a 476.64 × 268.11 mm active area

  • Typical power consumption of 9.5W

Technical Specifications

Panel ModelM215HTN01.1
Panel Typea-Si TFT-LCD, LCM
Display Size21.5
Resolution1920(RGB)×1080, FHD
Pixel Pitch0.08275×0.24825 mm
Operating Temperature0 ~ 50 °C
Storage Temperature-20 ~ 60 °C
Brightness250
Contrast Ratio1000:1 (Typ.) (Transmissive)
Response Time3.8/1.2 (Typ.)(Tr/Td) ms
Viewing Angle85/85/80/80 (Typ.)(CR≥10)
Color Depth16.7M (6-bit + Hi-FRC)
Color Temperature6485K
Display ModeTN, Normally White, Transmissive
Refresh Rate75Hz
sRGB Coverage95% coverage (CIE 1931)
Outline Dimension495.6(W)×292.2(H) mm
Active Area476.64(W)×268.11(H) mm
Weight1.75Kgs (Typ.)
Voltage32.4/34.8/39.6V (Min./Typ./Max.)
Power Consumption8.35/9.5W (Typ.)
Backlight TypeWLED
Backlight Lifetime30K (Min.) hrs
InterfaceLVDS (2 ch, 8-bit)

Applications

  • AUO-compatible desktop monitors

  • LCD desktop display systems

  • Industrial panel-mount display assemblies

  • Commercial information display systems

  • Equipment-control and operator-interface displays

  • Point-of-sale display systems

  • Digital signage and information kiosks

Frequently Asked Questions

Q1: What resolution and display size does the M215HTN01.1 provide?

A: The panel is 21.5 inches and supports 1920 × 1080 Full HD resolution.

Q2: What interface does the AUO M215HTN01.1 use?

A: It uses a two-channel, 8-bit LVDS interface.

Q3: What are the panel's brightness and contrast specifications?

A: The M215HTN01.1 has a specified brightness of 250 cd/m² and a typical transmissive contrast ratio of 1000:1.

Q4: What backlight technology and lifetime are specified?

A: The panel uses a WLED backlight with a minimum rated lifetime of 30,000 hours.

Q5: What is the operating temperature range?

A: The specified operating temperature range is 0 to 50 °C. The storage temperature range is -20 to 60 °C.

Q6: Does the panel support standard desktop display use?

A: Yes. Its 21.5-inch Full HD format, 75Hz refresh rate, LVDS interface, and WLED backlight make it suitable for desktop monitors and LCD display systems.
