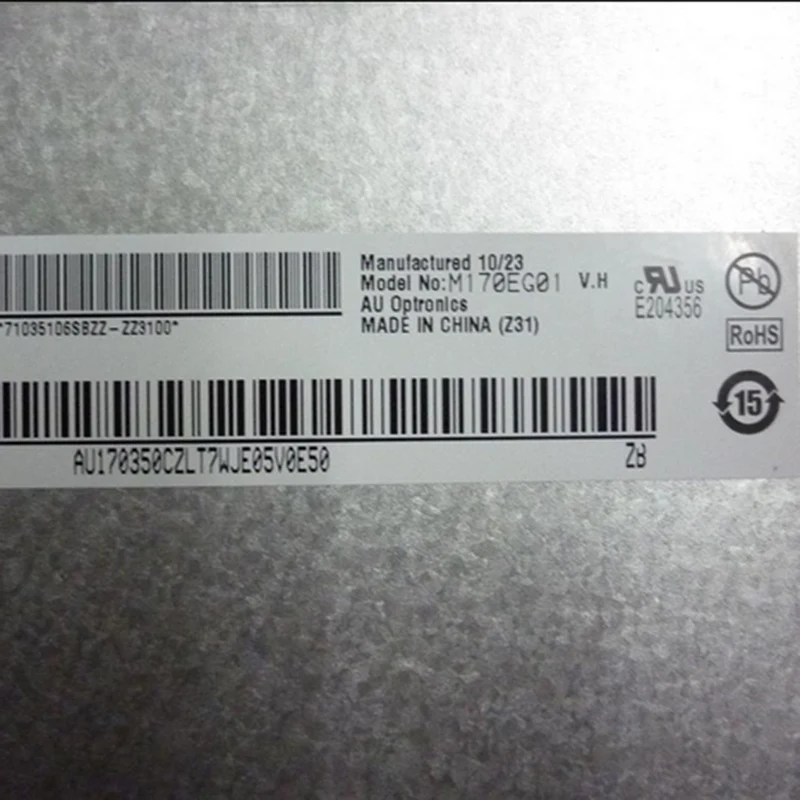

17 inch screen M170EG01 VH lcd module 1280*1024 lcd display panel
The AUO M170EG01 VH is a 17‑inch 5:4 aspect‑ratio a‑Si TFT‑LCD panel with native SXGA 1280(RGB)×1024 resolution, widely used for industrial monitor, surveillance display and embedded system retrofit projects. Adopting Normally‑White TN transmissive technology, matte anti‑glare 3H hard‑coated surface for scratch‑resistance. Signal interface is dual‑channel 20‑bit LVDS, equipped with CCFL backlight unit without built‑in inverter board, external CCFL inverter is required. 250 cd/m² typical brightness, 72% NTSC color gamut, stable performance for industrial display applications. Custom touch overlay bonding service is available upon request.
| Item | Specification |
|---|---|
| Model | M170EG01 VH (AUO Original) |
| Screen Size | 17.0 Inch, 5:4 Aspect Ratio |
| Resolution | 1280(RGB) × 1024 SXGA |
| Panel Technology | a‑Si TFT‑LCD TN, Normally‑White Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.)1688阿... |
| Color Depth | 6‑bit + FRC, 16.7M Colors, 72% NTSC |
| Viewing Angle | 85°/85°/80°/80° (CR≥10) |
| Interface | Dual‑channel LVDS |
| Refresh Rate | 60Hz |
| Backlight | CCFL, without built‑in inverter, external inverter required |
| Active Area | 337.92 × 270.336 mm |
| Outline Dimension | 358.5 × 296.5 × 17.0 mm |
| Surface Treatment | Matte Anti‑glare, Hard coating 3H scratch resistant |
| Operating Temperature | 0℃ ~ +50℃ |
| Storage Temperature | ‑20℃ ~ +60℃ |
| Compliance | RoHS |
| Application | Industrial monitor, Surveillance display, Embedded system, Legacy equipment retrofit |
Matte 3H Hard‑Coated Industrial‑Grade SurfaceAnti‑glare matte surface eliminates mirror reflection, 3H hard coating improves scratch resistance for factory and control‑room usage.
Classic CCFL Backlight StructureCCFL backlight without onboard inverter, needs external CCFL inverter board, drop‑in replacement for many old‑generation industrial monitors.
Dual‑channel LVDS Standard InterfaceWidely compatible with mainstream industrial LVDS driver boards, easy for embedded system integration.
Stable 5:4 SXGA Form FactorStandard 17‑inch 5:4 mechanical outline, perfect for direct screen replacement of aging industrial monitors and surveillance displays.
Genuine AUO Original PanelStrict pre‑shipment quality inspection. Support sample testing and bulk wholesale orders. Custom touch overlay bonding service available.
‑ Industrial monitor display replacement ‑ Surveillance & security monitoring screen ‑ Factory embedded control terminal ‑ Legacy equipment screen retrofit maintenance ‑ Medical auxiliary display equipment
Zylcdshop supplies genuine AUO, Innolux, BOE, NLT industrial‑grade TFT‑LCD panels. We maintain spot inventory for M170EG01 VH. ‑ Genuine original AUO panel, strict quality inspection before shipment ‑ Support sample testing and competitive bulk wholesale pricing ‑ Anti‑static shock‑proof packaging for fragile LCD transportation ‑ Global worldwide fast shipping ‑ Technical support for CCFL inverter & LVDS driver board matching and custom touch bonding solutions
A1: AUO M170EG01 VH adopts dual‑channel LVDS interface, CCFL backlight without built‑in inverter, external CCFL inverter board is required.
A2: It is matte anti‑glare surface with 3H hard‑coated scratch resistant treatment.
A3: Mainly used for industrial monitor, surveillance display and legacy embedded equipment screen retrofit replacement projects.
A4: Yes, we support custom touch overlay bonding service, please contact our engineer for project details.
A5: We have spot stock of AUO M170EG01 VH. Please send inquiry to get best wholesale price and lead‑time
