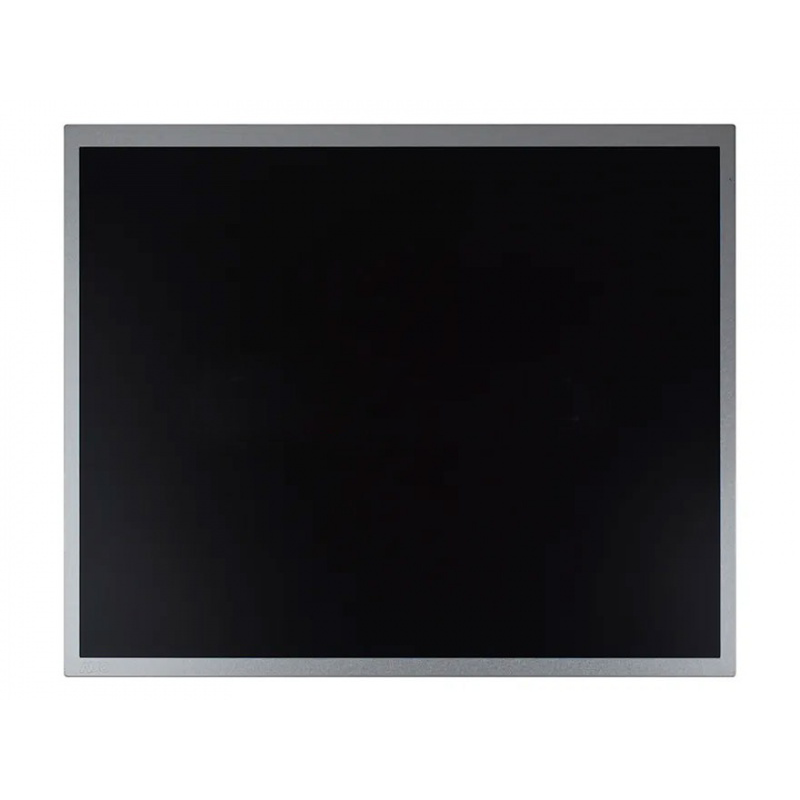

m170e5-l0a CMO 17 inch 1280*1024 lcd display screens
m170e5-l0a CMO 17 inch 1280*1024 lcd display screens
The CMO M170E5-L0A is a high-quality 17.0-inch a-Si TFT-LCD panel designed for reliable industrial and desktop monitor applications. It features a standard SXGA resolution of 1280 × 1024 pixels with a 5:4 aspect ratio, providing sharp and clear imagery for professional environments. Utilizing a TN (Twisted Nematic) display mode, this panel delivers a typical brightness of 400 cd/m² and a high contrast ratio of 500:1, ensuring excellent visibility and deep blacks. The display is equipped with a 2-channel LVDS interface supporting 16.7 million colors (8-bit), which guarantees smooth color transitions and accurate reproduction.
Exceptional Clarity: The native SXGA resolution provides a crisp viewing experience ideal for legacy industrial systems and office workstations.
High Performance Response: Optimized for fluidity, the panel's liquid crystal response time ensures minimal motion blur for dynamic content.
Superior Brightness & Contrast: With a 400-nit luminance and 500:1 contrast, it maintains readability even in well-lit indoor environments.
Robust Connectivity: The is a widely adopted industry standard, allowing for easy integration with various controller boards.
Professional Grade Durability: Designed by Chi Mei Optoelectronics (CMO), this model is recognized for its stable long-term performance and consistent backlight uniformity.
Anti-Glare Coating: Features a specialized surface treatment to reduce reflections and eye strain during extended periods of use.
m170e5-l0a CMO 17 inch lcd display screens Specification:
| Item | Specification |
| Panel Brand | CMO (Chimei Innolux) |
| Model Name | M170E5-L0A |
| Screen Size | 17.0 inch |
| Screen Type | a-Si TFT-LCD, LCM |
| Resolution | 1280 (RGB) × 1024 (SXGA) |
| Aspect Ratio | 5:4 |
| Active Area | 337.92 × 270.336 mm |
| Outline Dimension | 358.5 × 296.5 × 17.5 mm |
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 5ms (Typ.)(Tr+Td) |
| Viewing Angle | 75/75/70/60 (Typ.)(CR≥10) |
| Backlight Type | 4 pcs CCFL , 50K hours , No Driver |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
Industrial Control Systems
Medical Imaging Monitors
ATM and Self-service Kiosks
Security Surveillance Displays
Desktop Office Monitors
FAQ:
Is this M170E5-L0A screen brand new? What is the interface type?
This model typically features a 30-pin LVDS interface with a 1280*1024 resolution. We offer original new or Grade A compatible units. Please verify your controller board compatibility before ordering.
If I place an order today, when will it be shipped?
For in-stock items, we usually ship within 1-3 business days after payment confirmation. For bulk orders, please contact us to confirm the specific lead time.
LCDs are fragile; how do you ensure the screen won't be damaged during transit?
We use custom high-density foam boxes and reinforced outer cartons. Each panel is sealed in an anti-static bag and wrapped in multiple layers of bubble wrap to ensure safety during long-distance shipping.
