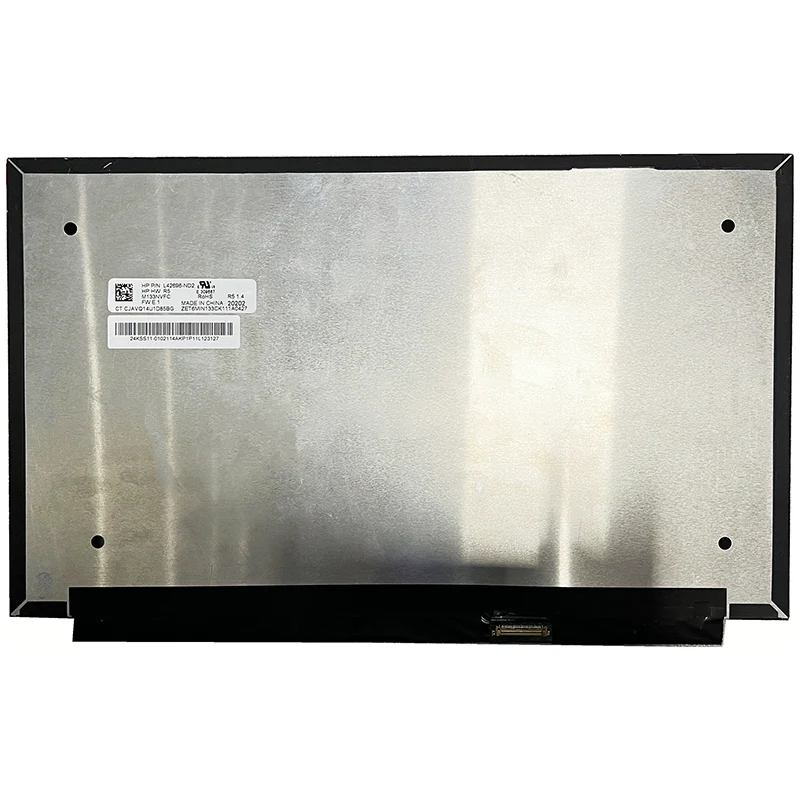

IVO M133NVFC R5 13,3-Zoll-LCD-Modul 1920×1080 Hochhelligkeits-Display
IVO M133NVFC R5 13,3-Zoll-LCD-Modul 1920×1080 Hochhelligkeits-Display
Der Preis: €135.81
€126.76/ Mitglied
In den Warenkorb
M133NVFC R5
M133NVFC R5

IVO M133NVFC R5 13,3-Zoll-LCD-Modul 1920×1080 Hochhelligkeits-Display

Der Preis: €135.81
€126.76/ Mitglied
Lieferung:
Zahlung:
Berechnung der fracht
Erforderlich:*
Produktmodell* Zielpreis Qty *
Nachricht
Ihre Kontaktdaten: Weitere Informationen:
Name: *
Herr. Frau.
1. Angebot mit Versand Fracht?
Email : *
JA NEIN
Telefon: 2. Welchen Carrier perfert ihr??
Unternehmen:
Fedex UPS DHL
TNT andere
Land:*

IVO M133NVFC R5 13,3-Zoll-LCD-Modul 1920×1080 Hochhelligkeits-Display

Produktinformationen Produktspezifikationen
Modell:
M133NVFC R5
Marke:
Anwendung:
Industrie
Größe:
Entschließung:
1920(RGB)×1080, FHD 166PPI
Helligkeit:
1000 cd/m² (Typ.)
Kontrastverhältnis:
2000:1 (Typ.) (TM)
Betrachtungswinkel:
85/85/85/85 (Typ.)(CR≥10)
Lampentyp:
WLED , 15K hours , With LED Driver
Signalschnittstelle:
eDP (2 Lanes) , 30 pins Connector
Panel-Typ:
a-Si TFT-LCD, LCM
Bestellanleitung
Qualität:
test ok before ship it
Größe:
RMA 6 month
Entschließung:
Paid Sample
Lagerbestand:
14
Betrachtungswinkel:
China
Lampentyp:
WorldWide
Signalschnittstelle:
1-3 Days
Gewicht:
2.000 KG
Übersicht

IVO M133NVFC R5 13,3-Zoll-IPS TFT LCD-Display mit hoher Helligkeit

DieIVO M133NVFC R5ist a13,3-Zoll-TFT-LCD-Modul mit hoher Helligkeitvon InfoVision Optoelectronics (IVO), entwickelt fürlaptops, im Freien lesbare displays, industrielle tragbare Geräte und professionelle Anzeigeanwendungen. Es verfügt über eine1920×1080 Full HD Auflösungmit a16:9 Breitbildseitenverhältnis, liefert scharfe Bildqualität und hohe Pixeldichte.

Das display übernimmtIPS-Technologie (In-Plane Switching)mit aNormalerweise schwarze transmissive StrukturAusgezeichnete Betrachtungswinkel, stabile Farbleistung und reduzierte Bildverzerrung. es unterstützt16,7 Millionen Farben (6-bit + Hi-FRC)und erreicht100% sRGB-Farbabdeckung, geeignet für Anwendungen, die eine genaue Farbwiedergabe erfordern.

Der M133NVFC R5 integriert eine30-polige eDP 1.4-Schnittstelle,WLED edge-light Hintergrundbeleuchtung mit integriertem LED-Treiber, und1000 cd/m² Ultrahohe Helligkeit. Sein sonnenlichtlesbares design macht es geeignet für Außen-und Industrieumgebungen, die eine starke Sicht erfordern.

Schlüsselmerkmale

Original IVO TFT LCD Modul

13,3-Zoll-Kompaktdisplay

1920×1080 Full HD Auflösung

16:9 Breitbildformat

IPS Normalerweise schwarze Transmissionstechnik

RGB vertikale Streifenpixelanordnung

16.7M Farbunterstützung

100% sRGB Farbspektrum

30-polige eDP 1.4-Schnittstelle

2-spuriges EDP-Signal

WLED edge-light Hintergrundbeleuchtung

Eingebauter LED-Treiber

1000 cd/m² Ultrahohe Helligkeit

2000:1 Kontrastverhältnis

85/85/85/85° breiter Betrachtungswinkel

Hartbeschichtung 3H Oberflächenbehandlung

Datenschutz/Freigabe Anzeigeoptionen

Ohne integrierten touchscreen

Technische Spezifikationen

SpezifikationDetails
ModellM133NVFC R5
HerstellerIVO/InfoVision Optoelektronik
Anzeigegröße13,3 Zoll
LCD-Typa-Si TFT-LCD-Modul
TechnikIPS
Auflösung1920×1080 Pixel
AnzeigeformatFull HD (FHD)
Seitenverhältnis16:9
AnzeigemodusNormalerweise schwarz transmissiv
PixelanordnungRGB vertikaler Streifen
Aktivbereich293,76×165,24 mm
Pixeldichte166 PPI
Anzeigefarben16,7 Millionen (6-bit + Hi-FRC)
Helligkeit1000 cd/m² (Typ)
Kontrastverhältnis2000:1 (Typ.)
Betrachtungswinkel85/85/85/85° (Typ.)
Farbspektrum100% sRGB
SchnittstelleeDP 1.4
Signaltyp2-spurige eDP
Verbinder30 pins
HintergrundbeleuchtungWLED Kantenleuchte
LED-Treibereingebaut
Aktualisierungsrate60Hz
OberflächenbehandlungHartbeschichtung 3H
Modulabmessungen298,76×186×3,0 mm
GewichtCa. 255g
Touchscreenohne Berührung
Betriebstemperatur0°C bis +50°C
Lagertemperatur-20°C bis +60°C

Typische Anwendungen

IVO M133NVFC R5 eignet sich für:

Laptop-Computer

Industrielle tragbare Computer

Außenanzeigen mit hoher Helligkeit

Embedded computing Systeme

Mobile STEUERUNGSTERMINALE

Professionelle Überwachungsgeräte

Tragbare Industriegeräte

LCD-Ersatzprojekte

Die Kombination vonFull HD-Auflösung, IPS-Ansichtsleistung und 1000 cd/m² HelligkeitMacht es für Anwendungen geeignet, die hervorragende Sicht und Farbgenauigkeit erfordern.

Warum wählen Sie IVO M133NVFC R5?

Außenanzeige mit hoher Helligkeit, lesbar

mit1000 cd/m² Helligkeit, bietet der M133NVFC R5 eine starke Sicht in hellen Umgebungen, wodurch er für Outdoor-Geräte und industrielle tragbare Geräte geeignet ist.

IPS Wide Viewing Technologie

Die IPS-Panelstruktur liefert85-Grad-Blickwinkel in alle RichtungenMachen Sie es für anspruchsvolle professionelle Display-Anwendungen geeignet.

Auflösung.

Welche Schnittstelle verwendet M133NVFC R5?Full HD BildqualitätEs verwendet eine

Die

30-polige eDP 1.4-Schnittstelle mit 2-spuriger EDP-Signalübertragung1920×1080 Auflösung und 166 PPI Pixeldichte.

Bereitstellen Sie scharfe Bilder und detaillierte Grafiken für professionelle Display-Anwendungen.

Ist M133NVFC R5 mit einem touchscreen versehen?Zuverlässige eDP SchnittstelleNein. Der standard M133NVFC R5 wird geliefert

Die

Ohne integrierten touchscreen

30-polige eDP 1.4-Schnittstelle.Bietet Hochgeschwindigkeits-digitale Signalübertragung und Kompatibilität mit modernen Anzeigesystemen.

Welche Hintergrundbeleuchtung verwendet M133NVFC R5?

Schlankes und leichtes Designmit ungefährEs verwendet eine

WLED edge-light Hintergrundbeleuchtung mit integriertem LED-Treiber

3 mm Dicke und 255 g Gewicht., ist das display für dünne und tragbare Geräte konzipiert, wo der Installationsraum begrenzt ist.

Welche Anwendungen verwenden M133NVFC R5?

Häufige FragenEs wird hauptsächlich inWas ist IVO M133NVFC R5?

laptops, Außenanzeigen mit hoher Helligkeit, tragbare Industriegeräte und professionelle Anzeigesysteme

IVO M133NVFC R5 ist ein.13,3-Zoll-IPS TFT LCD-Modul

Ist IVO M133NVFC R5 für industrielle Anwendungen geeignet?

Mit 1920×1080 Full HD Auflösung, EDP-Schnittstelle und hochhelliger WLED-Hintergrundbeleuchtung.Ja. SeinWie hoch ist die Auflösung von M133NVFC R5?

Hohe Helligkeit, IPS-Technologie, breiter Blickwinkel, schlankes design und EDP-Schnittstelle

es verfügt über1920×1080 Pixel (Full HD)Aufrechterhaltung konsistenter Farben und Bildqualität aus verschiedenen Betrachtungspositionen.

Produktvergleich
Modell:
Größe:
Entschließung:
Helligkeit:
Kontrastverhältnis:
Betrachtungswinkel:
Lampentyp:
Signalschnittstelle:
Panel-Typ:
IVO M133NVFC R5 13,3-Zoll-LCD-Modul 1920×1080 Hochhelligkeits-Display

IVO M133NVFC R5 13,3-Zoll-LCD-Modul 1920×1080 Hochhelligkeits-Display

M133NVFC R5

1920(RGB)×1080, FHD 166PPI
1000 cd/m² (Typ.)
2000:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED , 15K hours , With LED Driver
eDP (2 Lanes) , 30 pins Connector
a-Si TFT-LCD, LCM

M133NWFC R2

a-Si TFT-LCD, LCM

m133nvf3 r0

1920(RGB)×1080, FHD 166PPI
300 cd/m² (Typ.)
600 : 1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED , 15K hours , With LED Driver
eDP (4 Lanes) , eDP1.3 , 40 pins Connector
a-Si TFT-LCD, LCM

M133NW4J R3

1920(RGB)×1200, WUXGA 170PPI
300 cd/m² (Typ.)
1200 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 15K hours , With LED Driver
eDP (2 Lanes) , 30 pins Connector
a-Si TFT-LCD, LCM
