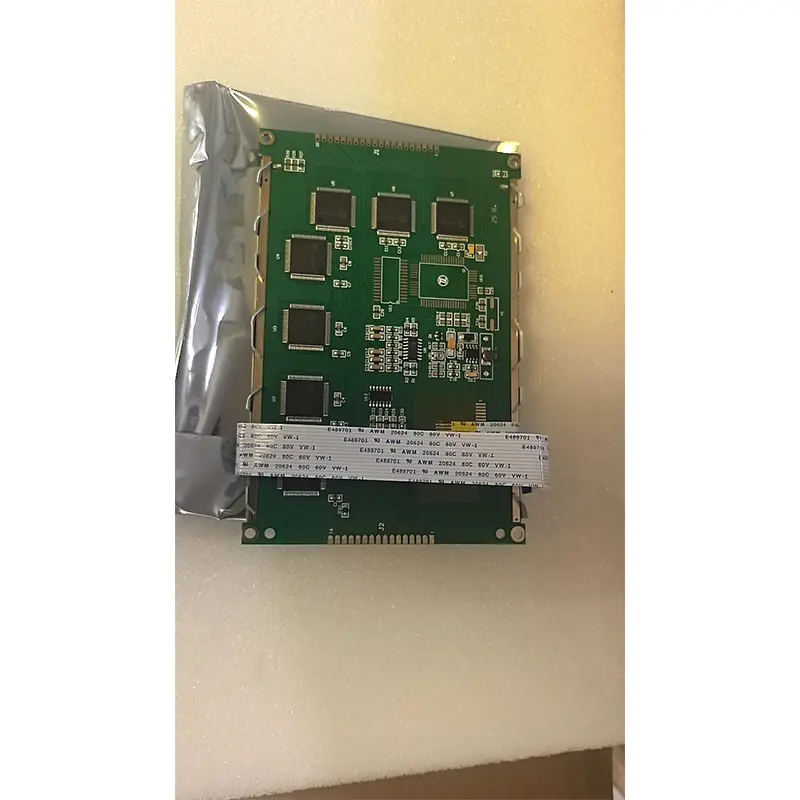

New M032J Compatible LCD Screen Replacement Display Panel

Product Information Product Specifications
Model:
M032J
Application:
Industrial
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
1
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

M032J compatible replacement LCD is a drop-in substitute for the original Nanya M032J series integrated industrial display modules, widely used as spare screens for Haitian, Zhenxiong and other brands of injection molding machine operation panels, textile printing machinery control terminals, small factory PLC monitoring panels.

220 cd/m² standard industrial brightness ensures clear multi-line equipment parameter tables, molding curve waveforms and fault alarm text under factory overhead lighting environments. The built-in multi-IC drive PCB perfectly replicates the original signal communication protocol, eliminating compatibility risks during equipment maintenance.

Full Technical Specification Table

CategoryParameterTypical Specification
Basic InfoFull Model CodeM032J (Compatible Replacement MTG-32240J)

Original ManufacturerNan Ya Plastics (Nanya Industrial Series)

Screen Size5.7 inch, landscape 4:3
Display CoreNative Resolution320(W) × 240(H) color graphic QVGA

Panel Techa-Si TN TFT-LCD, Transmissive Normally White

Pixel ArrangementRGB vertical stripe
Optical PerformanceActive Display Area (AA)115.2(W) × 86.4(H) mm

Pixel Pitch0.36 × 0.36 mm

Typical Brightness220 cd/m² single CCFL backlight

Static Contrast Ratio300:1 @ 25℃ ambient

Color Depth6-bit RGB, 262K display colors

Viewing Angle (CR≥10)L/R:60°, U/D:45°; Optimal viewing: 12 o’clock

Response Time (Tr/Td)18ms / 30ms, total 48ms typical

Native Refresh RateFixed 60Hz industrial graphic timing
Mechanical SpecOverall Outline Dimension140.0(W) × 104.0(H) × 12.8(D) mm integrated PCB aluminum frame

Net Weight~450g complete LCD+driver board assembly

Surface TreatmentStandard glossy polarizer, optional matte AG anti-glare, 2H scratch-resistant hard coat
Electrical InterfaceConnector14Pin 0.5mm pitch horizontal outlet FPC flat ribbon cable

Logic Supply VoltageDC 5.0V (4.7V ~ 5.3V tolerance)
Backlight SystemLight SourceSingle edge single CCFL cold cathode fluorescent tube (1 lamp)

Onboard CircuitBuilt-in complete graphic drive PCB with multi-display controller ICs; NO onboard CCFL boost circuit

CCFL Rated Lifespan40,000 hours to half brightness, replaceable lamp tube
Environmental RatingOperating Temperature0 ℃ ~ +50 ℃ industrial indoor grade

Storage Temperature-20 ℃ ~ +60 ℃

Operating Humidity10% ~ 90% RH non-condensing
Quality & ComplianceQuality GradeCompatible New Grade A: zero bright/dark dot, no line mura, uniform backlight without light leakage

Stock StatusIn-Stock; full pixel scan + temperature cycling aging test before shipment

CertificationRoHS compliant, CCFL contains trace mercury
Touch MatchingIntegrated LCD+PCB only; separate 5.7" 4-wire resistive touch glass for optical bonding

Core Advantages

  1. Fully compatible replacement version, identical mechanical size, pinout and timing to original Nanya M032J series

  2. Complete integrated LCD + dedicated drive PCB, plug-and-play with original industrial equipment mainboard, no extra controller needed

  3. Classic 320×240 QVGA color graphic resolution, perfect match legacy injection molding machine HMI firmware without program modification

  4. Detachable single CCFL backlight tube, low post-maintenance cost when lamp aging

  5. 14Pin standard parallel MCU interface, abundant matching injection molding machine mainboard resources

  6. 40,000-hour long-life CCFL backlight, reduce downtime for 24/7 continuous production equipment

  7. New tested Grade A stock, fast delivery for urgent industrial machinery repair orders

Typical Application Scenarios

  1. Replacement display for Haitian, Zhenxiong, Donghua brand 5.7-inch injection molding machine operation control panels

  2. Textile printing, spinning machinery production line parameter monitoring touchless LCD terminal

  3. Small factory PLC embedded cabinet real-time equipment running status display screen

  4. Vintage packaging, blow molding auxiliary industrial control operation panel spare display

  5. Spare replacement integrated LCD module for Nanya M032J series 5.7-inch single CCFL QVGA industrial TFT LCM

 FAQ

Q1: Does M032J compatible screen include built-in drive PCB?

A1: Yes, the whole assembly is LCD panel + pre-soldered complete drive PCB, directly plug into the original machine mainboard without extra controller board.

Q2: Do I need an external CCFL inverter for this screen?

A2: Yes. There is no onboard single-lamp CCFL high voltage boost circuit on the PCB. Matched single-channel CCFL inverter is mandatory to light the backlight; WLED constant current drivers cannot substitute without full circuit refitting.

Q3: Can MTG-32240J directly replace original M032J REV:A?

A3: Yes, mechanical outline, mounting holes, 14Pin FPC pinout and display timing are fully consistent, direct plug-and-play replacement.

Q4: What equipment is this M032J LCD mainly used for?

A4: Mainly used for all brands of vintage injection molding machine operation HMI panels, also compatible with textile, packaging small industrial control equipment.

Q5: Does the assembly come with touch panel as standard?

A5: Bare LCD + drive PCB only without touch layer. Separate matched 5.7-inch 4-wire resistive touch glass needs optical bonding to form touch industrial HMI assembly.

Q6: Are compatible replacement panels available in stock?

A6: Yes, new tested Grade A compatible M032J LCD assemblies are in warehouse stock. Shipment within 1–3 working days after order confirmation, each unit completes full pixel and backlight uniformity inspection before delivery.
