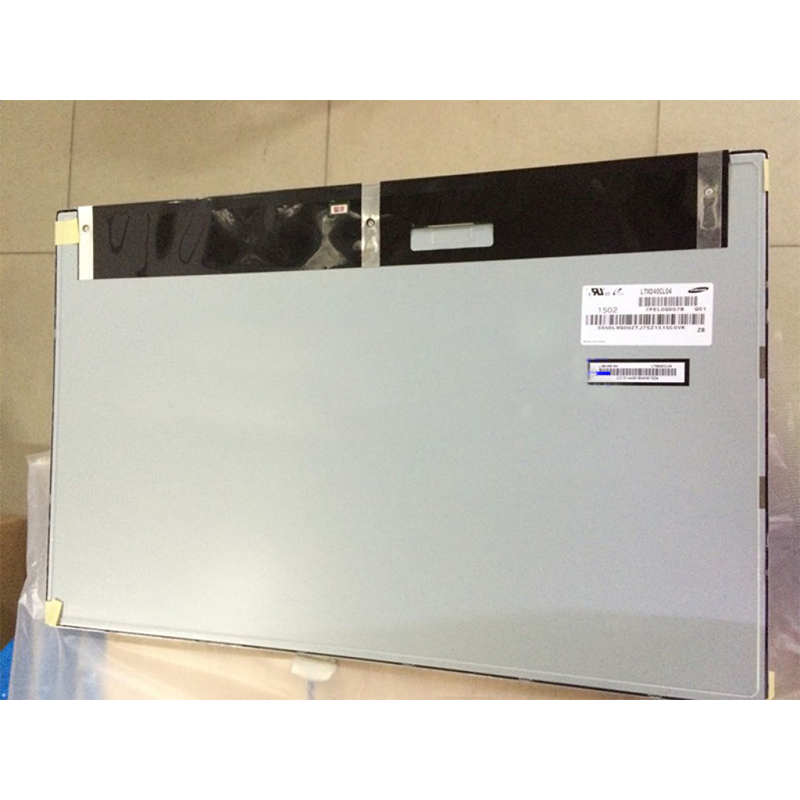

LTM240CL04 Samsung 24inch 1920×1200 LCD DISPLAY
LTM240CL04
24"
1920(RGB)×1200, WUXGA 94PPI
250 (Typ.)(cd/m²)
1000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
13S3P WLED , 40K hours , Without Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
P2130UXF1MA10 21.3" LCD panel for TIANMA
21.3"
1200(RGB)×1600, UXGA 93PPI
900 cd/m² (Typ.)
2000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 41 pins Connector
a-Si TFT-LCD, LCM
P2130UXF1MA00 21.3" LCD panel for TIANMA
21.3"
1200(RGB)×1600, UXGA 93PPI
900 cd/m² (Typ.)
2000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 41 pins Connector
a-Si TFT-LCD, LCM
