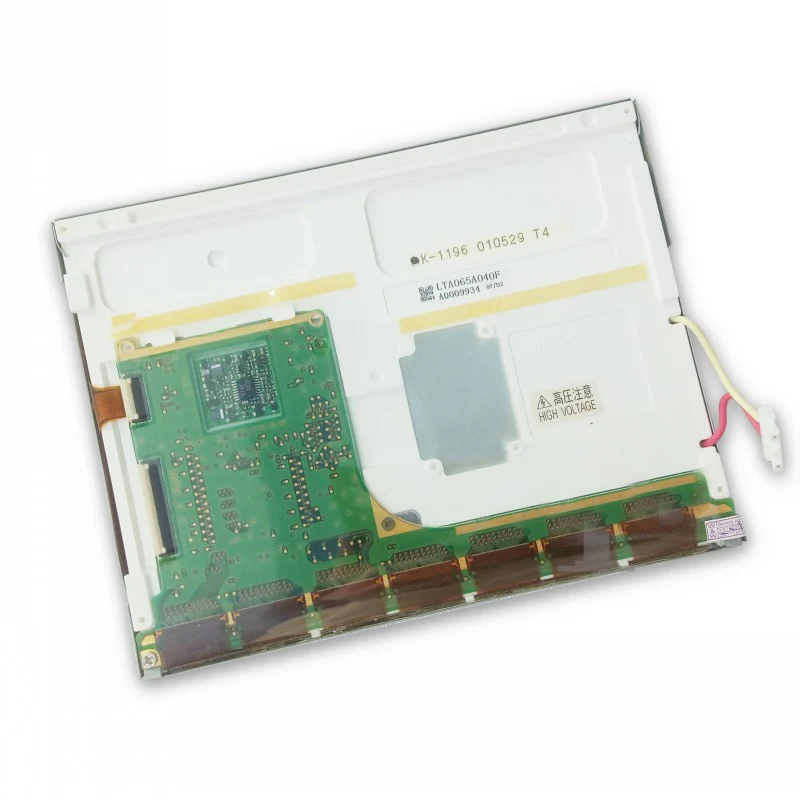

Toshiba LTA065A040F 6.5-Inch 640×480 LCD Panel Industrial Display
Toshiba LTA065A040F 6.5-Inch 640×480 LCD Panel Industrial Display
Price: $85.00
$80.00/ piece
Add to cart
LTA065A040F
LTA065A040F
LTA065A040F
LTA065A040F

Toshiba LTA065A040F 6.5-Inch 640×480 LCD Panel Industrial Display

Price: $85.00
$80.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Toshiba LTA065A040F 6.5-Inch 640×480 LCD Panel Industrial Display

Product Information Product Specifications
Model:
LTA065A040F
Brand:
Toshiba
Application:
Industrial
Size:
6.5"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
85
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

Toshiba Matsushita LTA065A040F 6.5-Inch Industrial TFT LCD Display Module


The Toshiba Matsushita LTA065A040F is a 6.5-inch industrial TFT LCD display module developed by Toshiba Matsushita Display Technology, designed for industrial control systems, factory automation equipment, medical devices, measurement instruments, embedded terminals, and legacy LCD replacement applications.

Featuring 640 × 480 VGA resolution, a-Si TFT active matrix technology, Normally White transmissive TFT structure, and CMOS RGB 6-bit interface, the LTA065A040F delivers stable color reproduction, reliable operation, and long service life for industrial environments.

With its classic 6.5-inch 4:3 display format, compact mechanical design, and industrial-grade performance, this Toshiba LCD module is widely used as a replacement display for older automation equipment and embedded systems.


Key Features

Original Toshiba Matsushita industrial TFT LCD panel

6.5-inch display size

Resolution: 640 × 480 pixels

VGA display format

4:3 aspect ratio

a-Si TFT active matrix technology

TN Normally White transmissive mode

262K display colors

RGB vertical stripe pixel arrangement

CMOS RGB 6-bit interface

40-pin connector

400 cd/m² brightness

250:1 contrast ratio

Wide viewing angle performance


Technical Specifications

SpecificationDetails
ModelLTA065A040F
ManufacturerToshiba Matsushita Display Technology
Display Size6.5 Inch
LCD Typea-Si TFT-LCD
Resolution640 × 480 pixels
Display FormatVGA
Aspect Ratio4:3
Display ModeNormally White Transmissive
Display Colors262K
Pixel ArrangementRGB Vertical Stripe
Active Area131.52 × 98.64 mm
Pixel Pitch0.0685 × 0.2055 mm
Brightness400 cd/m² (Typ.)
Contrast Ratio250:1 (Typ.)
Viewing AngleApprox. 60°+
Response TimeApprox. 10/15 ms
Refresh Rate60Hz
InterfaceCMOS RGB
Interface Type6-bit RGB
Connector40-pin

Typical Applications

Toshiba LTA065A040F is suitable for:

Industrial PC displays

Factory automation systems

PLC control panels

HMI operator interfaces

CNC machine displays

Medical equipment

Test and measurement instruments

Embedded industrial computers

POS terminals

Transportation control systems

Legacy equipment repair projects

Industrial LCD replacement applications


Why Choose Toshiba LTA065A040F?

Original Toshiba Matsushita LCD quality

Classic 6.5-inch VGA industrial display format

Reliable CMOS RGB interface

High brightness 400 cd/m² output

Stable TFT image performance

Compact industrial mechanical design

Suitable for long-life automation equipment

Excellent replacement solution for discontinued LCD modules

Supports industrial maintenance and repair projects

Ideal for OEM and system integrator applications


Quality Assurance

Each Toshiba LTA065A040F LCD module can be tested with:

Power-on display testing

Pixel defect inspection

Brightness uniformity testing

RGB signal verification

CCFL backlight inspection

Connector inspection

Voltage testing

Appearance quality inspection

Anti-static protective packaging

Professional industrial LCD quality control


FAQ

What is Toshiba LTA065A040F?

The Toshiba LTA065A040F is a 6.5-inch industrial TFT LCD panel with VGA resolution designed for embedded and industrial display applications.

What is the resolution of LTA065A040F?

It features 640 × 480 VGA resolution with a 4:3 aspect ratio.

What interface does LTA065A040F use?

The LTA065A040F uses a CMOS RGB 6-bit interface.

What backlight does Toshiba LTA065A040F use?

It uses a CCFL backlight system and requires an external inverter.

Does LTA065A040F have touchscreen?

No. The standard LTA065A040F is a display-only TFT LCD module without touchscreen.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
Toshiba LTA065A040F 6.5-Inch 640×480 LCD Panel Industrial Display

Toshiba LTA065A040F 6.5-Inch 640×480 LCD Panel Industrial Display

LTA065A040F

6.5"
Toshiba LTA065B091D 6.5" Industrial TFT LCD Display Panel

Toshiba LTA065B091D 6.5" Industrial TFT LCD Display Panel

LTA065B091D

800×480 (WVGA)
350 cd/m²
500:1
70/70/70/70
CCFL
LVDS
Color TFT LCD (LCM)
Toshiba LTA065B092 6.5" Industrial TFT LCD Display Panel

Toshiba LTA065B092 6.5" Industrial TFT LCD Display Panel

LTA065B092

6.5"
800×480 (WVGA)
350 cd/m²
500:1
70/70/70/70
CCFL
LVDS
Color TFT LCD (LCM)
Toshiba LTA065B490A 6.5" Industrial TFT LCD Display Panel

Toshiba LTA065B490A 6.5" Industrial TFT LCD Display Panel

LTA065B490A

6.5"
800×480 (WVGA)
350 cd/m²
500:1
70/70/70/70
CCFL
LVDS
Color TFT LCD (LCM)
LTA065A040F is a 6.5" Display screen Product from Toshiba.According to Toshiba's product specification sheet,LTA065A040F display has a resolution of , Contrast Ratio is ,Viewing Angle is ,Lamp Type is ,Signal Interface is ,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LTA065A040F after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
