Produkte

Industrie-LCD-Display

TOSHIBA

Der Preis: €199.19

€194.66/ Mitglied

Lieferung:

Zahlung:

Berechnung der fracht

Erforderlich:*

Produktmodell*	Zielpreis	Qty *

Nachricht

Ihre Kontaktdaten:

Weitere Informationen:

Name: *

Herr.

Frau.

1. Angebot mit Versand Fracht?

Email : *

NEIN

Telefon:

2. Welchen Carrier perfert ihr??

Unternehmen:

	Fedex		UPS		DHL
	TNT		andere

Land:*

Spezifikationen Bestellanleitung Übersicht Fragen und Antworten Bewertungen

Datasheets：

.pdf

Produktinformationen Produktspezifikationen

Modell:

LT104AC54000

Anwendung:

Größe:

Entschließung:

640*480

Helligkeit:

800 cd/m² (Typ.)

Kontrastverhältnis:

400:1 (Typ.) (TM)

Betrachtungswinkel:

70/70/55/65 (Typ.)(CR≥10)

Lampentyp:

3 strings WLED , 70K hours , Without Driver

Signalschnittstelle:

LVDS (1 ch, 6-bit) , 20 pins Connector

Panel-Typ:

LTPS TFT-LCD, LCM

Bestellanleitung

Qualität:

test ok before ship it

Größe:

RMA 6 month

Entschließung:

Paid Sample

Lagerbestand:

120

Betrachtungswinkel:

China

Lampentyp:

WorldWide

Signalschnittstelle:

1-3 Days

Gewicht:

1.000 KG

Übersicht

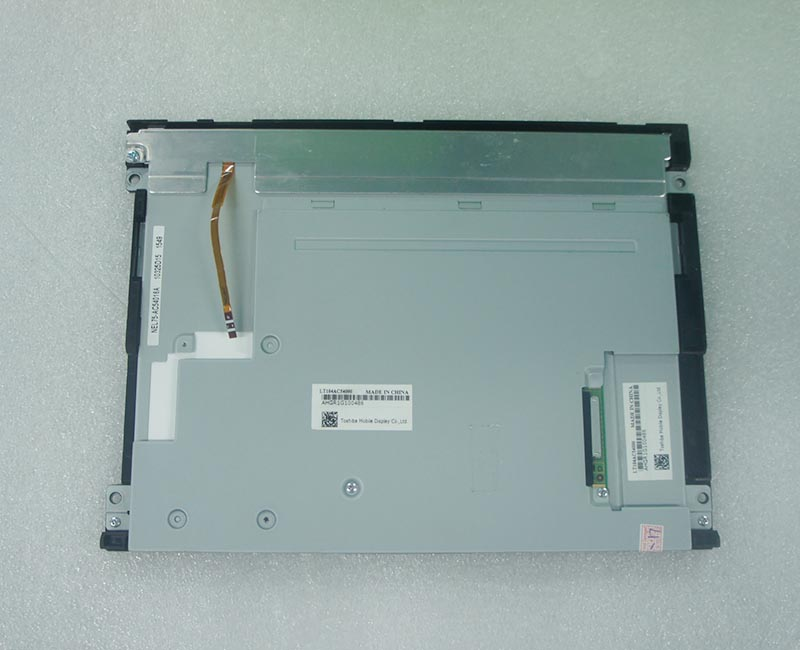

LT104AC54000 is a 10.4" LTPS TFT-LCD, LCM Display screen Product from .According to 's product specification sheet,LT104AC54000 display has a resolution of 640*480, Contrast Ratio is 400:1 (Typ.) (TM),Viewing Angle is 70/70/55/65 (Typ.)(CR≥10),Lamp Type is 3 strings WLED , 70K hours , Without Driver,Signal Interface is LVDS (1 ch, 6-bit) , 20 pins Connector,Brightness is 800 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LT104AC54000 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.

Fragen und Antworten

Eine Frage stellen >

Alle (5) (5) Package (0) Express Delivery (0) (0) (0)

Where can I find the detailed datasheet and application notes for this display?

Since it's an older model, it might be difficult to obtain directly from Toshiba's official website. You can try the following channels: Component Distributor Websites: Search for this part number on websites like Digi-Key, Mouser, or LCSC. They sometimes provide the datasheet. Technical Document Websites: Search directly on search engines like Google for "LT104AC54000 datasheet PDF". Electronics Engineer Communities: Ask for help on professional electronics forums (e.g., EEVblog, EDAboard), as other engineers might have the relevant documentation.

Is this display module discontinued? Are there any recommended replacement models?

es, the LT104AC54000 is a relatively old model and is likely discontinued by Toshiba. When looking for a replacement, you can focus on displays with similar key parameters: Size: 10.1-inch or 10.4-inch Resolution: 640x480 have become more mainstream, but system compatibility needs to be verified. Interface: LVDS is still a common interface for industrial displays. It is recommended to contact professional display distributors or manufacturers (such as BOE, Innolux, AUO, etc.) to find currently produced, pin-to-pin and mechanically compatible replacement models.

In which devices or applications is this display module commonly used?

Due to its 10.4-inch size and SVGA resolution, it is commonly found in industrial equipment and embedded systems, such as: Industrial Human-Machine Interfaces (HMI) and touch screens Medical equipment (e.g., portable monitors) Test and measurement instruments POS machines and self-service kiosks Professional portable display devices

What interface does this display use and how can I connect it to my mainboard?

The LT104AC54000 uses a standard LVDS interface. To connect it to your mainboard, you need to: Confirm that your mainboard or controller supports LVDS output. Make or purchase a matching LVDS cable according to the pinout definition in the display's datasheet. Ensure to provide the required power supply (typically 3.3V or 5V, etc.) for the display, which is usually also provided through the interface cable.

What are the main technical specifications of the LT104AC54000 display module?

The LT104AC54000 is a 10.4-inch TFT LCD display module manufactured by Toshiba. Size: 10.4 inches Resolution:640x 480 Display Type: TFT active matrix LCD with LED backlight Brightness: Approximately 800 cd/m² Contrast Ratio: Approximately 400:1
