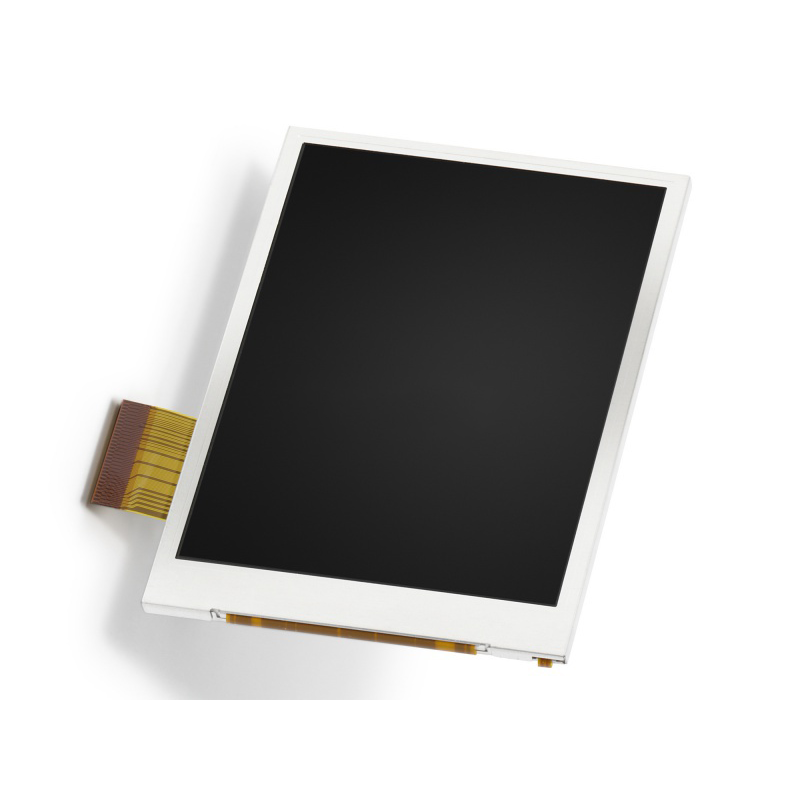

LS037V7DW06 Sharp 3.7inch 480×640 LCD DISPLAY

Parameter description：

1. Brand:Sharp

2. Size:3.7Inches

3. Model:LS037V7DW06

4. Panel type:CG-Silicon, LCM

5. Resolution: 480(RGB)×640, VGA  217PPI

6. AA zone size:56.16(W)×74.88(H) mm

7. Overall dimensions:65(H)×89.2(V) ×3.6(D) mm

8. Brightness:300 cd/m² (Typ.)

9. Viewing angle: 80/80/80/80 (Typ.)(CR≥5)

10. Contrast ratio:900:1 (Typ.) (TM)

11. Display color:262K/16.7M   50% NTSC

12. Optical mode: ASV, Normally Black, Transflective

13. Response speed: 15/20 (Typ.)(Tr/Td)

14. Signal interface: Parallel RGB (1 ch, 8-bit) + SPI , 61 pins FPC

15. Light source type:WLED  [6S1P] , 10K hours , W/O Driver

16. Touch: Without

17. Working environment:Storage Temp.: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
