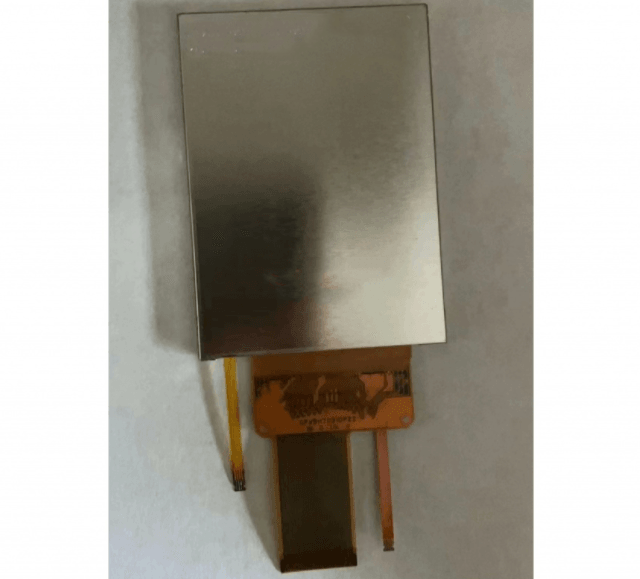

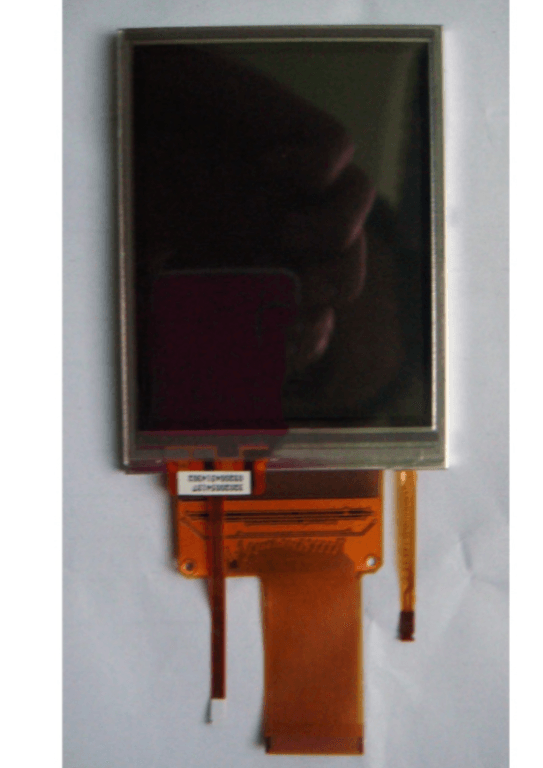

LS030Y3DX01 is a 3" CG-Silicon, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,LS030Y3DX01 display has a resolution of 480(RGB)×800, WVGA 313PPI, Contrast Ratio is 500:1 (Typ.) (TM),Viewing Angle is 80/80/80/80 (Typ.)(CR≥10),Lamp Type is WLED [1S6P] , W/O Driver,Signal Interface is Parallel RGB (1 ch, 8-bit) + SPI , 49 pins FPC,Brightness is 500 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Mobile screen and other products.The weight of LS030Y3DX01 after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
