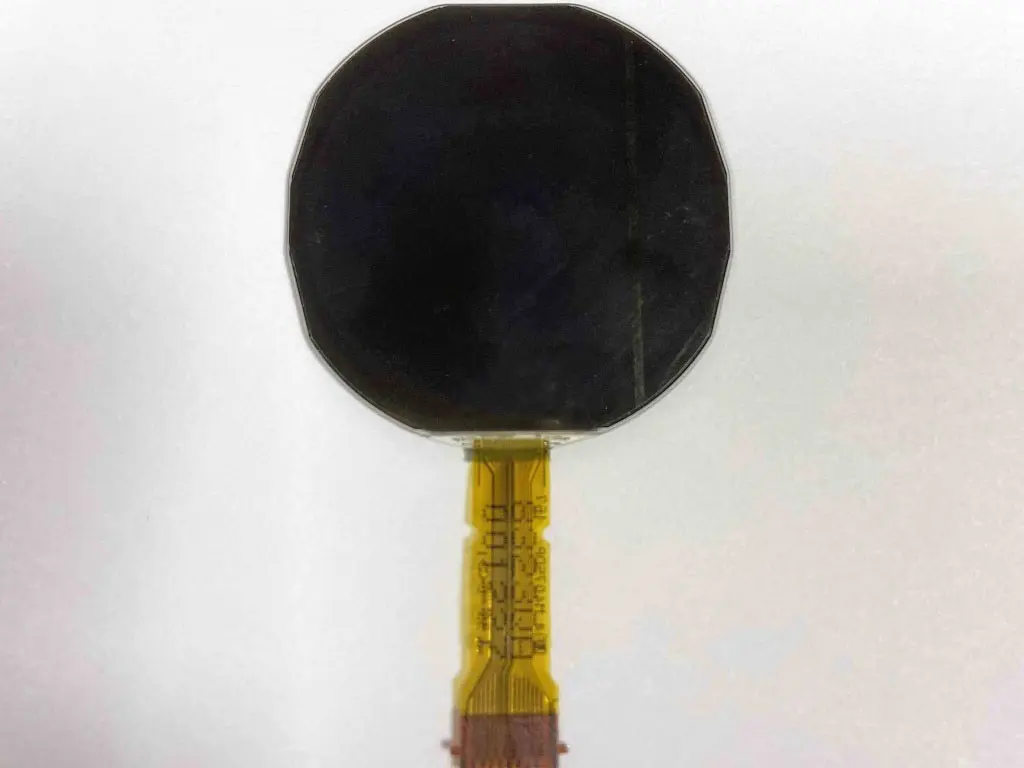

LS012B7DD06A Sharp 1.2 inch 240(RGB)×240 tft screen
LS012B7DD06A Sharp 1.2 inch 240(RGB)×240 tft screen
Sharp LS012B7DD06A is a 1.2-inch round transflective ultra-low power wearable-grade TFT-LCD module launched by Sharp, adopting Sharp's exclusive CG-Silicon continuous grain silicon technology with extremely high electron mobility and ultra-low power consumption. This product adopts a 1:1 perfect round design with native 240(RGB)×240 resolution and 201PPI pixel density. It features transflective display technology, which can clearly display content under sunlight without backlight, and the static power consumption is only 500μW, making it one of the lowest power consumption color round displays on the market.
LS012B7DD06A adopts VA normally black display mode, supporting 64 colors display. The surface is treated with 3H hardness hard coating. The signal interface is a 21-pin single-channel 6-bit parallel data interface with 3.2V/5.0V input voltage. With an overall thickness of only 0.89mm and a weight of only 1.6g, its ultra-thin and lightweight design perfectly adapts to wearable devices with limited space. This model has exactly the same technical parameters as the same series LS012B7DD06, only different in production batches, and can be directly interchanged. Although discontinued, it remains a mainstream replacement model in the fields of smart wearables and industrial micro-displays.
LS012B7DD06A Sharp tft screen Highlights:
Transflective sunlight readable: Adopts transflective display technology, uses ambient light for display, can clearly display content under sunlight without backlight, perfectly suitable for outdoor use scenarios
CG-Silicon ultra-low power consumption: Sharp's exclusive CG-Silicon technology, static power consumption only 500μW, dynamic power consumption 1200μW, greatly extending the battery life of wearable devices
1:1 perfect round design: Perfect round display without cut corners, beautiful visual effect, suitable for smartwatches, bracelets and other round wearable devices
Ultra-thin and lightweight: Only 0.89mm thickness and 1.6g weight, one of the thinnest and lightest color round displays on the market
Industrial-grade wide temperature design: Operating temperature range from -20°C to 70°C, adapting to various extreme environmental temperature changes
LS012B7DD06A Sharp tft screen Specification:
| Parameter | Specification |
|---|---|
| Part Number | LS012B7DD06A (Compatible: LS012B7DD06) |
| Brand | Sharp |
| Screen Size | 1.2 inch (Round) |
| Panel Type | CG-Silicon TFT-LCD, Liquid Crystal Module (LCM) |
| Resolution | 240(RGB)×240 |
| Pixel Density | 201 PPI |
| Pixel Format | RGB Vertical Stripe |
| Pixel Pitch | 0.126×0.126 (H×V) mm |
| Active Area | 30.24(W)×30.24(H) mm (Round) |
| Bezel Opening | 33.04(W)×33.94(H) mm |
| Contrast Ratio | 25:1 (Typical, Reflective) |
| Display Colors | 64 colors |
| Color Gamut | 18% NTSC (CIE1931) |
| Backlight Type | No Backlight (Transflective, Front Light Customizable) |
| Interface Type | Parallel Data (1 ch, 6-bit), 21 pins FPC connector |
| Optical Mode | VA, Normally Black, Transflective |
| Best View Direction | Full View |
| Viewing Angle | 60°/60°/60°/60° (U/D/L/R, CR≥2) |
| Response Time | 20/20 ms (Tr/Td, Typical) |
| Refresh Rate | 30Hz |
| Input Voltage | 3.2V/5.0V (Typical) |
| Static Power Consumption | 500μW (Typical) |
| Maximum Power Consumption | 1200μW (Typical) |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Surface Treatment | 3H Hardness Hard Coating |
| Mechanical Dimensions | 33.04(W)×33.94(H)×0.89(D) mm (Typical) |
| Weight | Approximately 1.6g (Max) |
| Production Status | Discontinued |
| Touch Function | No (Resistive/Capacitive touch customizable) |
LS012B7DD06A Sharp tft screen Applications:
Smart Wearable Devices: Smartwatches, smart bracelets, smart rings, smart necklaces, fitness trackers
Industrial Micro-instruments: Portable testing instruments, industrial sensor displays, small data acquisition terminals
Portable Medical Devices: Blood glucose meters, blood pressure monitors, thermometers, portable medical monitors
Smart Home: Smart remote controls, smart switch displays, small smart home control panels
Other Applications: AR/VR accessories, electronic tags, small advertising machines, toy displays
FAQ:
Q1: Does LS012B7DD06A have a backlight?
A1: No, this screen adopts transflective display technology, uses ambient light for display, and does not require a backlight. We can provide supporting front light solutions to meet the use requirements in low-light environments.
Q2: What is the power consumption of this screen?
A2: The static power consumption is only 500μW, and the dynamic power consumption is 1200μW. It is one of the lowest power consumption color round displays on the market, very suitable for battery-powered wearable devices.
Q3: The product has been discontinued, how do you ensure supply?
A3: We have stable global inventory channels and professional supply chain management, which can provide customers with long-term and stable supply services for discontinued models, as well as compatible alternative model recommendations.
Q4: Can touch function be customized?
A4: Yes, we can provide supporting resistive or capacitive touch screen solutions to meet the interactive needs of different application scenarios.
