Sharp LQ190E1LX77 19 Inch Industrial LCD Panel 1280×1024
Sharp LQ190E1LX77 19 Inch Industrial LCD Panel 1280×1024
Price: $135.00
$131.00/ piece
Add to cart
Original Sharp LQ190E1LX77 19 inch LCD display module front view

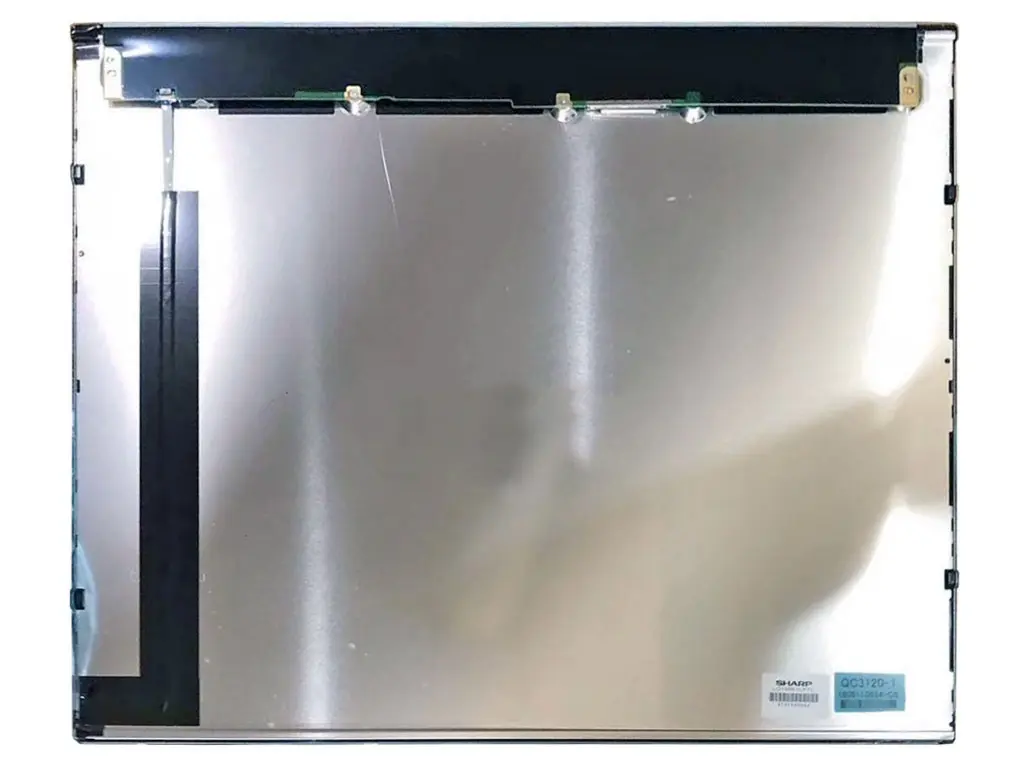

LQ190E1LX77 19 inch LCD back side showing LVDS connector interface
Original Sharp LQ190E1LX77 19 inch LCD display module front view
LQ190E1LX77 19 inch LCD back side showing LVDS connector interface

Sharp LQ190E1LX77 19 Inch Industrial LCD Panel 1280×1024

Price: $135.00
$131.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Sharp LQ190E1LX77 19 Inch Industrial LCD Panel 1280×1024

Product Information Product Specifications
Model:
LQ190E1LX77
Brand:
SHARP
Application:
Industrial
Size:
19"
Resolution:
1280*1024
Contrast Ratio:
1500:1
Viewing Angle:
85/85/85/85
Lamp Type:
WLED
Panel Type:
a-Si TFT-LCD, LCM
Active Area:
376.32×301.056
Outline:
396×323.6 ×12
Storage Temp:
-25 ~ 70 °C
Operating Temp:
-20 ~ 65 °C
Support Color:
16.7M
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
395
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
4.000 KG
Overview

Original Sharp LQ190E1LX77 19" LCD Display Module | 1280x1024 SXGA Industrial Screen

The Sharp LQ190E1LX77 is a premium 19-inch TFT LCD display module engineered for demanding industrial, medical, and commercial applications. Featuring a classic 1280×1024 (SXGA) resolution with a 5:4 aspect ratio, this 19" panel delivers exceptional pixel density, making it ideal for detailed data monitoring and precision control interfaces. Built with Sharp's renowned advanced TFT technology, the LQ190E1LX77 offers ultra-wide viewing angles, high contrast, and superior color uniformity. Designed for long-term reliability, it ensures continuous 24/7 operation in harsh environments. At ZYLCDShop, we supply 100% genuine Sharp panels with strict optical and electrical testing, providing the perfect drop-in replacement or new integration component for your high-end equipment.

Product Features

  • Original Sharp Quality: Genuine LQ190E1LX77 panel offering industry-leading lifespan and color stability

  • SXGA High Resolution: 1280×1024 pixels provide sharp text and detailed graphical interfaces for HMI systems

  • Ultra-Wide Viewing Angle: Advanced liquid crystal alignment ensures clear visibility from all operator positions

  • Industrial-Grade Durability: Designed to withstand continuous 24/7 operation and wide temperature fluctuations

  • Standard LVDS Interface: High-speed, reliable data transmission compatible with standard industrial controller boards

  • High Brightness Backlight: Optimized LED illumination for excellent readability in brightly lit factory floors or control rooms

Technical Specifications

Parameter Specification
Model Number LQ190E1LX77
Manufacturer Sharp (Original)
Screen Size 19.0 Inch
Resolution 1280 × 1024 (SXGA)
Aspect Ratio 5:4
Active Area 376.32 × 301.06 mm (Approx)
Outline Dimensions 404.0 × 330.0 × 21.5 mm (Approx)
Interface Type LVDS (Low-Voltage Differential Signaling)
Brightness 300 - 350 cd/m² (Typ.)
Contrast Ratio 1500:1 (Typ.)
Viewing Angle 85/85/85/85
Operating Temperature 0°C ~ +50°C (Industrial Standard)
Backlight Type WLED (White LED)

*Note: Please contact our engineering team to download the official LQ190E1LX77 PDF datasheet for exact pinout, timing, and mechanical drawings.*

Applications

Thanks to its high resolution and rugged reliability, the Sharp LQ190E1LX77 19-inch LCD is widely deployed in:

  • Industrial Automation: CNC machine control panels, PLC HMI interfaces, and SCADA monitoring systems

  • Medical Equipment: Ultrasound machines, patient vital sign monitors, and dental imaging displays

  • Transportation & Marine: Railway control consoles, ship navigation systems, and traffic management centers

  • Commercial Systems: High-end POS terminals, ATM machines, and professional digital signage

Why Source Sharp 19" Panels from ZYLCDShop?

  • 100% Original Guarantee: We strictly supply authentic Sharp panels. No refurbished, pulled, or "A-grade" generic copies

  • Legacy & Long-Term Supply: We maintain strategic inventory of hard-to-find 19-inch industrial models to support your equipment's entire lifecycle

  • Rigorous QC Testing: Every LQ190E1LX77 undergoes 12-point inspection including backlight aging, dead pixel checks, and LVDS signal integrity tests

  • Expert Engineering Support: Free technical advice on LVDS cable matching and inverter/driver board compatibility

  • Safe Global Logistics: Custom shock-proof and anti-static packaging ensures zero transit damage via DHL/FedEx

Frequently Asked Questions About LQ190E1LX77

Is the LQ190E1LX77 a direct replacement for older Sharp 19" CCFL models?

In many cases, yes. The LQ190E1LX77 often shares the same mechanical outline and LVDS pinout as older Sharp 19-inch CCFL models. Upgrading to this LED-backlit version reduces power consumption and eliminates the need for high-voltage inverter boards. Please verify your original panel's mechanical drawing with our team before ordering.

Does this 19-inch module use an LVDS or eDP interface?

The Sharp LQ190E1LX77 typically utilizes a standard LVDS (Low-Voltage Differential Signaling) interface, which is the industry standard for 19-inch industrial and medical displays. This ensures high bandwidth for the 1280x1024 resolution and compatibility with most industrial PC motherboards.

What is the warranty for bulk industrial orders of this panel?

We provide a standard 6-month quality warranty covering manufacturing defects, backlight failure, and dead pixels. For large OEM projects, we can discuss extended warranty terms and dedicated buffer stock agreements to ensure your production line never stops.

Can I get the datasheet and LVDS cable for the LQ190E1LX77?

Yes, our technical team can provide the official Sharp datasheet upon request. We also supply compatible LVDS cables and matching AD (Analog-to-Digital) driver boards if you need a complete plug-and-play display kit.

Need Datasheet or Pricing for Sharp LQ190E1LX77?

Secure your supply of genuine 19-inch industrial LCD panels. Contact our Sharp display specialists today for stock availability and bulk pricing.

Request Quote & Datasheet

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
Sharp LQ190E1LX77 19 Inch Industrial LCD Panel 1280×1024

Sharp LQ190E1LX77 19 Inch Industrial LCD Panel 1280×1024

LQ190E1LX77

19"
1280*1024
1500:1
85/85/85/85
WLED
a-Si TFT-LCD, LCM
LQ190E1LX76 Sharp 19 inch lcd panel

LQ190E1LX76 Sharp 19 inch lcd panel

LQ190E1LX76

19"
1280*1024
470
1500:1
85/85/85/85
WLED
30 pins
a-Si TFT-LCD, LCM
LQ190E1LX77 is a 19" a-Si TFT-LCD, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,LQ190E1LX77 display has a resolution of 1280*1024, Contrast Ratio is 1500:1,Viewing Angle is 85/85/85/85,Lamp Type is WLED,Signal Interface is ,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LQ190E1LX77 after packaging is 4.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
