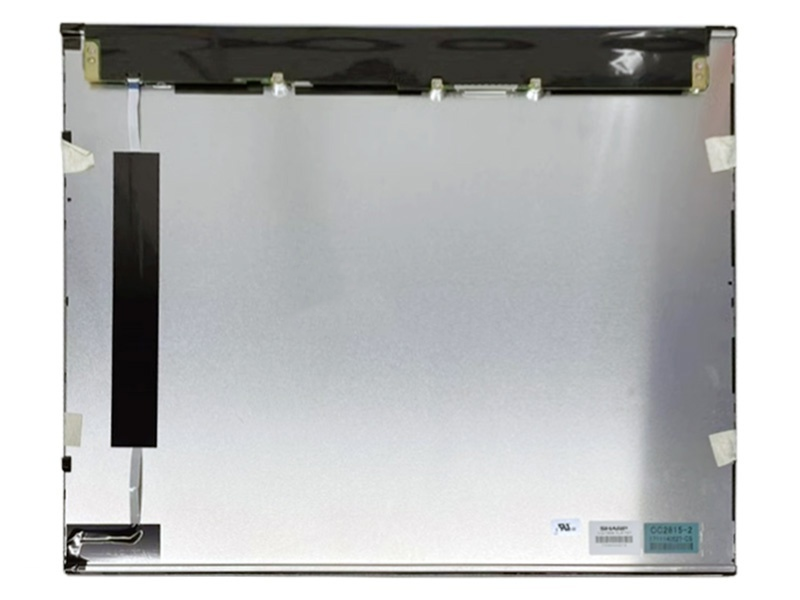

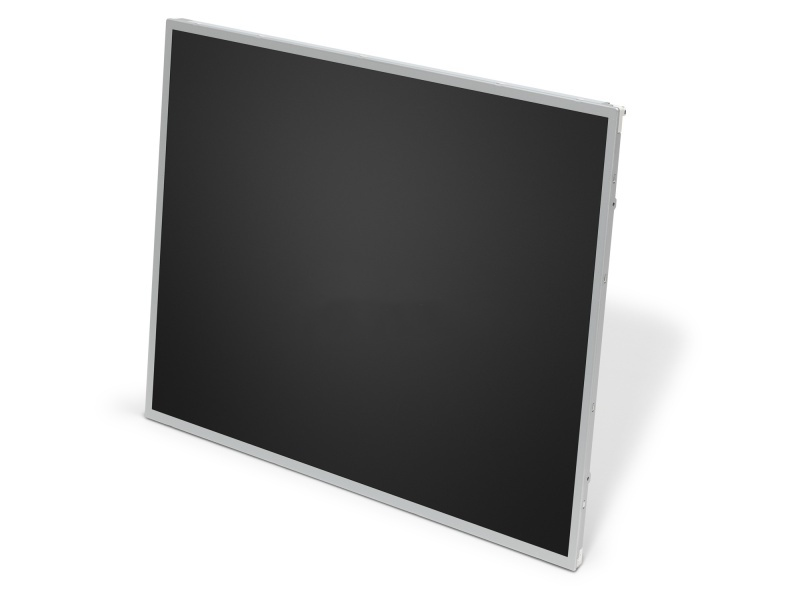

LQ190E1LX75U 19" tft screen for Sharp

LQ190E1LX75U is a 19" a-Si TFT-LCD, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,LQ190E1LX75U display has a resolution of 1280(RGB)×1024, SXGA 86PPI, Contrast Ratio is 1500:1 (Typ.) (TM),Viewing Angle is 85/85/85/85 (Typ.)(CR≥10),Lamp Type is WLED , 70K hours , With LED Driver,Signal Interface is LVDS (2 ch, 8-bit) , 30 pins Connector,Brightness is 350 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LQ190E1LX75U after packaging is 4.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
