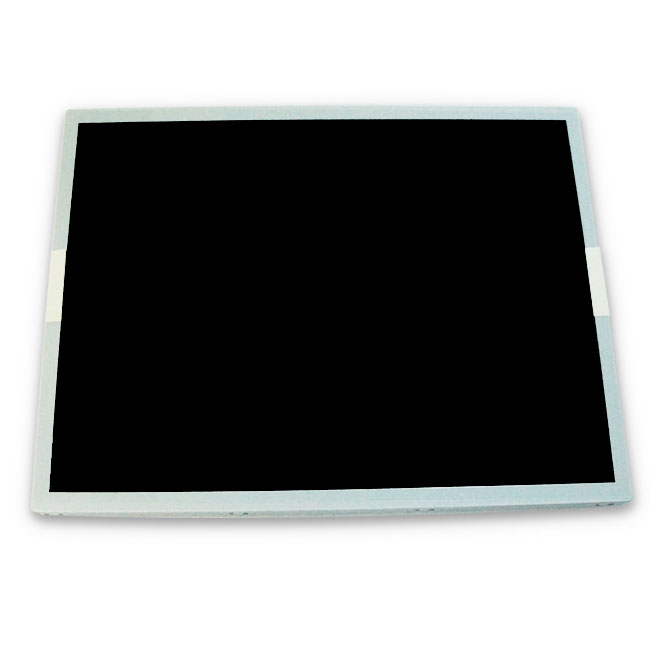

LQ150X1LX96M 15" tft screen for SHARP

LQ150X1LX96M is a 15" a-Si TFT-LCD, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,LQ150X1LX96M display has a resolution of 1024(RGB)×768, XGA 85PPI, Contrast Ratio is 1500:1 (Typ.) (TM),Viewing Angle is 85/85/85/85 (Typ.)(CR≥10),Lamp Type is WLED , 70K hours , With LED Driver,Signal Interface is LVDS (1 ch, 6/8-bit) 20 pins Connector,Brightness is 500 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LQ150X1LX96M after packaging is 2.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
