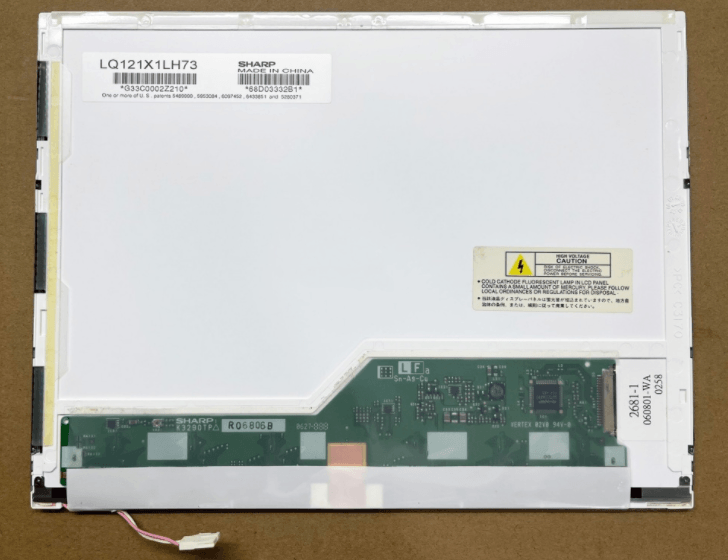

lq121x1lh73 is a 12.1" a-Si TFT-LCD, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,lq121x1lh73 display has a resolution of 1024(RGB)×768, XGA 105PPI, Contrast Ratio is 300:1 (Typ.) (TM),Viewing Angle is 45/45/10/30 (Min.)(CR≥10),Lamp Type is CCFL [1 pcs] , 10K hours , W/O Driver,Signal Interface is LVDS (1 ch, 6-bit) , 20 pins Connector,Brightness is 200 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Tablet and other products.The weight of lq121x1lh73 after packaging is 1.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
