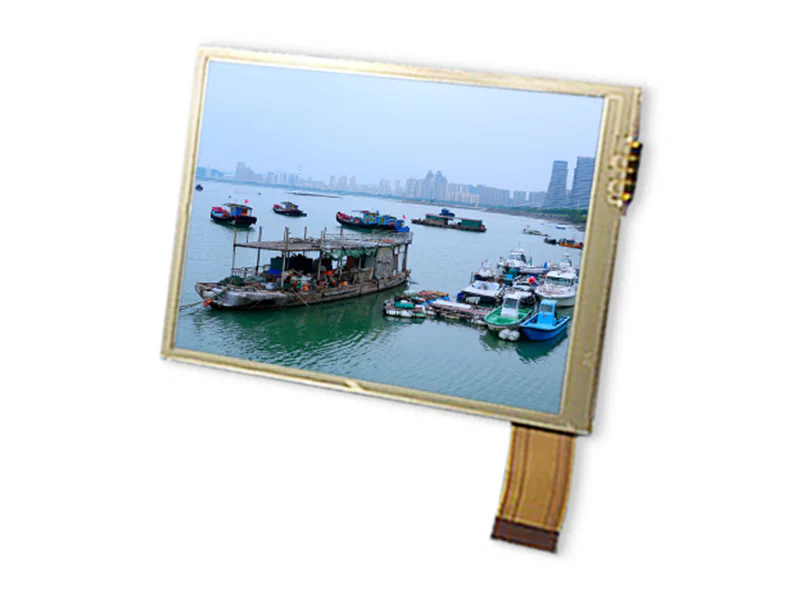

LQ10D347 Sharp 10.4 inch  640*480 display module
LQ10D347 Sharp 10.4 inch 640*480 display module
Price: $120.00
$114.80/ piece
Add to cart
LQ10D347 Sharp
LQ10D347 Sharp
LQ10D347 Sharp
LQ10D347 Sharp

LQ10D347 Sharp 10.4 inch 640*480 display module

Price: $120.00
$114.80/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LQ10D347 Sharp 10.4 inch 640*480 display module

Product Information Product Specifications
Model:
LQ10D347
Brand:
SHARP
Application:
Industrial
Size:
10.4"
Resolution:
640(RGB)×480, VGA 76PPI
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
426
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

LQ10D347 is Sharp classic 10.4-inch VGA industrial TFT module, originally equipped on early-generation CNC machine controllers and automation HMI equipment.

300 cd/m² moderate brightness supports clear reading of machining coordinates, PLC parameter menus, production curves and alarm messages under factory indoor lighting environment. Standard 640×480 VGA resolution is widely supported by legacy industrial control firmware, which can perfectly match original UI layout without picture distortion.

Full Technical Specification Table


CategoryParameterTypical Specification
Basic InfoFull ModelLQ10D347
ManufacturerSharp Corporation (Japan)
Screen Size10.4 inch, landscape 4:3
Native Resolution640(RGB) × 480 VGA, 76 PPI
Panel Technologya-Si TN TFT-LCD, Transmissive Normally White
Pixel ArrangementRGB vertical stripe
Optical PerformanceActive Display Area (AA)211.2(W) × 158.4(H) mm
Typical Brightness300 cd/m²
Contrast Ratio400:1 @ 25℃ ambient temperature
Color Depth6-bit RGB, 262K display colors
Viewing Angle (CR≥10)L/R:70°, U:60°, D:60°; Optimal viewing direction: 6 o’clock
Response Time (Tr+Td)35ms typical value
Refresh Rate60Hz native
Mechanical SpecOverall Outline Dimension244.0(W) × 183.0(H) × 11.5(D) mm metal frame
Net Weight~850g
Surface TreatmentGloss hard coat; matte AG anti-glare polarizer optional
Electrical InterfaceConnector41Pin 0.5mm pitch FPC parallel RGB CMOS interface
Logic Supply VoltageDC 3.3V (3.0V ~ 3.6V tolerance)
Backlight SystemLight SourceSingle edge CCFL cold cathode fluorescent lamp
Onboard CircuitNo built-in CCFL high-voltage boost IC; external single-lamp CCFL inverter required
CCFL Rated Lifespan50,000 hours to half brightness
Environmental RatingOperating Temperature0 ℃ ~ +50 ℃ industrial indoor grade
Storage Temperature-20 ℃ ~ +60 ℃
Operating Humidity10% ~ 90% RH non-condensing
Quality & StockQuality GradeOriginal Grade A: zero bright/dark dot, no horizontal/vertical line defects, uniform backlight without light leakage
Stock StatusIn-Stock. Full pixel scan and continuous aging test before shipment
ComplianceRoHS compliant legacy industrial display, CCFL contains trace mercury
Touch MatchingBare LCD only; separate 10.4" 4-wire resistive touch digitizer available for optical bonding


Core Advantages

  1. Sharp original industrial mature design, stable performance and low failure rate for legacy equipment maintenance replacement

  2. Standard 640×480 VGA resolution, highly compatible with massive vintage CNC and automation control programs

  3. Reinforced metal frame structure, suitable for fixed embedded installation inside industrial control cabinet

  4. Classic 41Pin parallel RGB CMOS interface, abundant matching driver and controller resources

  5. Single CCFL backlight delivers stable long-term static display effect

  6. Ready stock supports fast delivery for equipment maintenance orders

  7. Optional matte anti-glare polarizer to reduce light reflection in workshop environment

Typical Application Scenarios

  1. Replacement display for vintage CNC lathe, milling machine and injection molding machine HMI

  2. Textile, printing and packaging machinery multi-parameter monitoring control panel

  3. Industrial laboratory analytical testing equipment and portable measuring instrument terminal

  4. Early-generation embedded industrial PC and factory automation secondary monitoring screen

  5. Spare replacement panel for Sharp LQ10D series 10.4-inch VGA TFT modules

 FAQ

Q1: Does LQ10D347 need an external CCFL inverter?

A1: Yes. There is no onboard CCFL high voltage boost IC. A matched single-lamp CCFL high voltage inverter is mandatory to light up the backlight; WLED constant current drivers cannot substitute.

Q2: Can this panel work with LVDS driver board directly?

A2: No. The native interface is 41Pin parallel RGB CMOS. A CMOS to LVDS conversion board is required for signal conversion.

Q3: What temperature environment is this panel suitable for?

A3: Operating temperature range 0℃ ~ +50℃, designed for indoor factory workshops and control rooms; not applicable for outdoor low-temperature field operation.

Q4: Does the module come with touch panel as standard?

A4: Bare LCD module only without touch sensor layer. Separate matched 10.4-inch 4-wire resistive touch digitizer needs optical bonding to form touch industrial HMI assembly.

Q5: Are panels available in stock and ready for shipment?

A5: Yes, tested Grade A original modules are in warehouse. Shipment within 1–3 working days after order confirmation. Every unit completes full pixel and backlight inspection before delivery.
If you require, I can provide complete detailed 41Pin full pin mapping document
