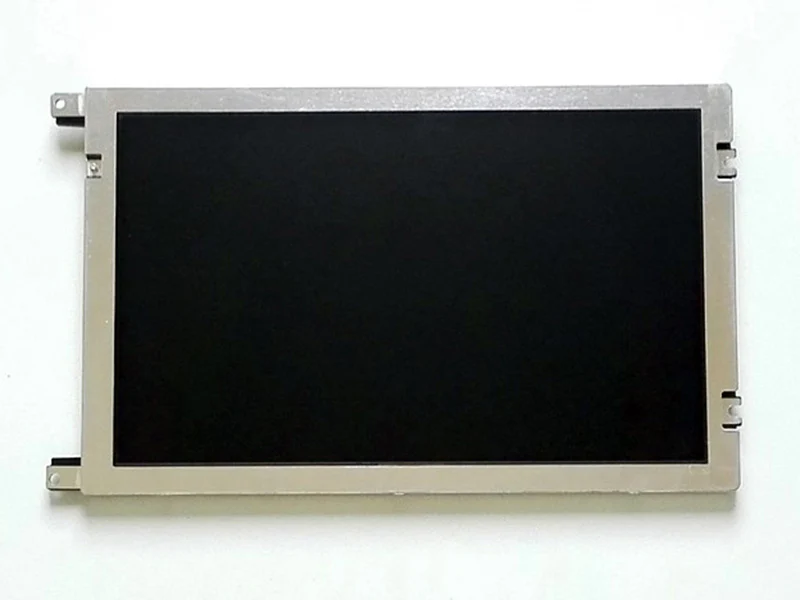

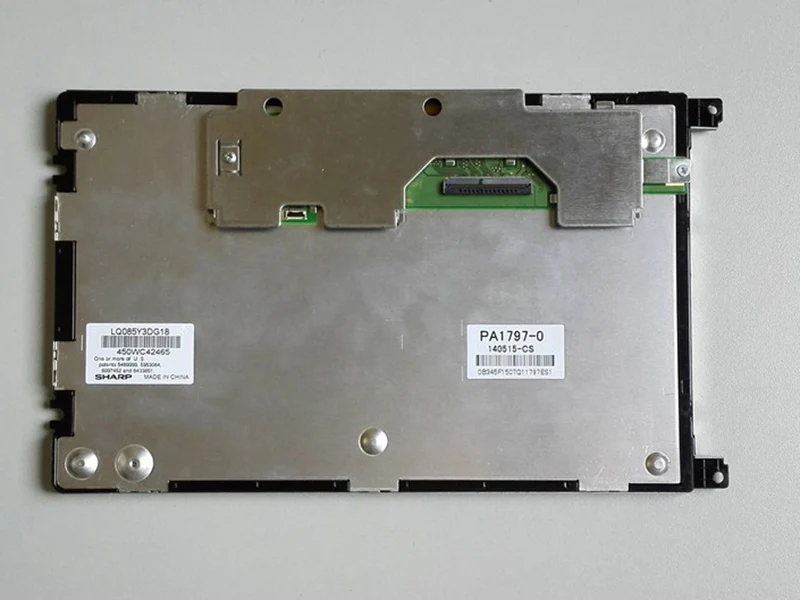

LQ085Y3DG18 8.5 inch screen lcd module 800*480 lcd display panel For Sharp

LQ085Y3DG18 is a 8.5" a-Si TFT-LCD, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,LQ085Y3DG18 display has a resolution of 800×480(RGB), WVGA 109PPI, Contrast Ratio is 450 : 1 (Typ.) (TM),Viewing Angle is 80/80/70/60 (Typ.)(CR≥10),Lamp Type is WLED , 25K hours , With LED Driver,Signal Interface is CMOS (1 ch, 6-bit) 50 pins Connector,Brightness is 250 cd/m2 (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LQ085Y3DG18 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
