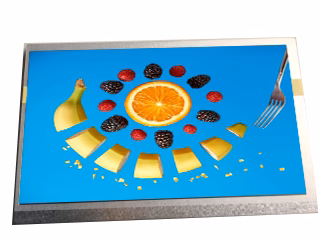

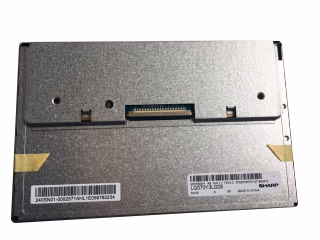

LQ070Y3LG05 Sharp 7 inch 800×480 lcd monitors for industrial
| Parameter | Technical Specification |
|---|---|
| Full Model | LQ070Y3LG05 |
| Manufacturer | Sharp Corporation Japan |
| Diagonal Size | 7.0 inches (177.8mm diagonal) |
| Native Resolution | 800(H) × 480(V) WVGA, 15:9, 134 PPI |
| LCD Technology | a-Si TN TFT-LCD, Transmissive, Normally White |
| Pixel Arrangement | RGB Vertical Stripe |
| Color Performance | 8-bit RGB, 16.7M true colors |
| Signal Interface | Single-channel 8-bit LVDS, 30Pin FPC connector, 3.3V logic voltage |
| Backlight System | Edge-lit WLED array, onboard integrated LED driver IC, PWM dimming pin reserved |
| Rated Backlight Lifespan | 20,000 hours typical |
| Typical Brightness | 380 cd/m² industrial standard high brightness |
| Typical Contrast Ratio | 500:1 |
| Viewing Angle (CR≥10, L/R/U/D) | 70° / 70° / 50° / 70°, Optimal viewing: 6 o’clock front lower |
| Total Response Time (Tr+Td) | 16 ms typical |
| Standard Refresh Rate | 60 Hz |
| Pixel Pitch | 0.192(H) × 0.1805(V) mm |
| Active Display Area (AA) | 153.60 mm (W) × 86.64 mm (H) |
| Overall Outline Dimension | 165.0 mm (W) × 104.0 mm (H) × 8.21 mm thickness |
| Net Weight | Max 195 g lightweight compact module |
| Surface Treatment | Matte AG anti-glare polarizer, scratch-resistant coating |
| Operating Temperature Range | -10 ℃ ~ +70 ℃ wide industrial grade |
| Storage Temperature Range | -30 ℃ ~ +80 ℃ |
| Touch Panel | Bare LCD without integrated touch; resistive/capacitive touch film optional optical bonding |
| Compliance Standard | RoHS Lead-Free Certified, mercury-free WLED backlight |
| Product Status | Mass production active industrial panel, A-grade original new stock stable supply |
-10℃ ~ +70℃ wide temperature tolerance: Adapt to cold workshop, vehicle-mounted and fluctuating industrial cabinet environments
380 cd/m² high brightness: Clear visibility under bright factory indoor ambient light
Integrated WLED drive circuit: No separate external LED driver board required, lower assembly cost and smaller overall space
Ultra-slim 8.21mm thickness & lightweight 195g, fits narrow embedded control cavity of compact equipment
Single-channel 8-bit LVDS interface, strong anti-EMI performance for industrial electromagnetic complex environment
8-bit full-color 16.7M color depth, rich color rendering for alarm classification and equipment schematic display
Mercury-free WLED backlight, eco-friendly with low standby power consumption
Compact factory automation HMI, small PLC production line monitoring control terminals
Portable industrial measuring, field maintenance diagnostic handheld testing instruments
Construction & agricultural machinery vehicle-mounted industrial control display screens
Light medical portable auxiliary monitoring and analytical instrument display equipment
Mini indoor self-service kiosks, logistics portable data recording & barcode scanning terminals
Custom complete touch industrial monitor after touch film optical bonding
Replacement spare screen for Sharp LQ070Y3 series 7" WVGA LVDS industrial TFT modules
