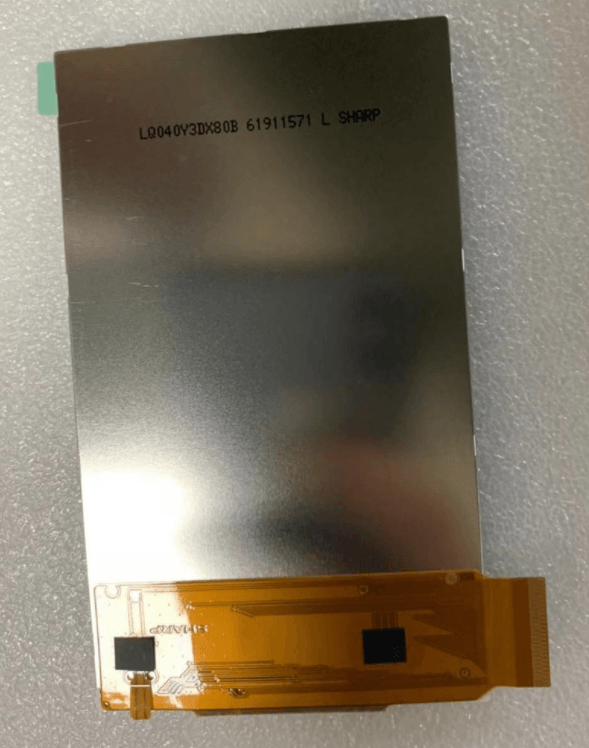

LQ040Y3DX80B    Sharp 4  inch lcd panel
LQ040Y3DX80B Sharp 4 inch lcd panel
Price: $60.00
$56.00/ piece
Add to cart
LQ040Y3DX80B    Sharp 4  inch lcd panel
LQ040Y3DX80B    Sharp 4  inch lcd panel
LQ040Y3DX80B    Sharp 4  inch lcd panel
LQ040Y3DX80B    Sharp 4  inch lcd panel

LQ040Y3DX80B Sharp 4 inch lcd panel

Price: $60.00
$56.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LQ040Y3DX80B Sharp 4 inch lcd panel

Product Information Product Specifications
Model:
LQ040Y3DX80B
Application:
Industrial
Size:
4"
Resolution:
480(RGB)×800, WVGA 235PPI
Brightness:
600 cd/m² (Typ.)
Contrast Ratio:
650:1 (Typ.) (TM)
Viewing Angle:
85/85/85/85 (Typ.)(CR≥10)
Lamp Type:
WLED , W/O Driver
Signal Interface:
Parallel RGB (1 ch, 8-bit) + SPI , 51 pins FPC
Panel Type:
CG-Silicon, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

Product Introduction

The Sharp LQ040Y3DX80B is a 4-inch a-Si TFT-LCD LCM designed for handheld and PDA applications. It features a 480 × 800 WVGA resolution, 16.7M color depth, 600-nit brightness, and a normally black transmissive display mode. The panel operates from -20°C to 70°C and uses a WLED backlight with parallel RGB and SPI interfaces for integration into compact embedded devices.

Key Features

  • 4-inch a-Si TFT-LCD LCM with 480 × 800 WVGA resolution

  • Pixel pitch of 0.036 × 0.108 mm (H × V)

  • 600-nit brightness for clear display performance

  • 650:1 typical contrast ratio in transmissive mode

  • Wide 85/85/85/85 viewing angles at CR ≥ 10

  • 7M color depth with 8-bit color representation

  • Normally black, transmissive display mode

  • 60Hz refresh rate and 35 ms typical response time

  • WLED backlight with maximum power consumption of 720mW

  • Parallel RGB 1-channel 8-bit interface combined with SPI

  • Operating temperature range of -20°C to 70°C

  • Storage temperature range of -30°C to 80°C

  • Compact outline dimensions of 57.14 × 96.85 mm and 20.0g typical weight

Technical Specifications

Panel ModelLQ040Y3DX80B
Panel Typea-Si TFT-LCD, LCM
Display Size4
Resolution480(RGB)×800, WVGA
Pixel Pitch0.036×0.108 mm (H×V)
Application FieldHandheld & PDA
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
Brightness600
Contrast Ratio650:1 (Typ.) (Transmissive)
Response Time35 (Typ.)(Tr+Td) ms
Viewing Angle85/85/85/85 (Typ.)(CR≥10)
Color Depth16.7M (8-bit)
Color Temperature7351K
Display ModeNew Mode2, Normally Black, Transmissive
Refresh Rate60Hz
Outline Dimension57.14×96.85 mm (H×V)
Active Area51.84×86.4 mm (H×V)
Weight20.0g (Typ.)
Voltage20.8/25.6V (Min./Max.)
Power Consumption720mW (Max.)
Backlight TypeWLED
InterfaceParallel RGB (1 ch, 8-bit) + SPI Logic Voltage 0≤VIL≤0.3IOVCC; 0.7IOVCC≤VIH≤IOVCC

Applications

  • Handheld devices

  • PDA systems

  • Compact industrial handheld equipment

  • Portable data collection terminals

  • Embedded mobile information displays

Frequently Asked Questions

Q1: What display technology and resolution does the Sharp LQ040Y3DX80B provide?

A: The panel uses a-Si TFT-LCD LCM technology with a 4-inch display area and 480 × 800 WVGA resolution.

Q2: What are the brightness and contrast specifications?

A: The LQ040Y3DX80B has a brightness of 600 and a typical transmissive contrast ratio of 650:1.

Q3: Which interfaces are supported?

A: The panel supports a parallel RGB interface with one channel and 8-bit color, along with an SPI interface.

Q4: What are the operating and storage temperature ranges?

A: The operating temperature range is -20°C to 70°C, while the storage temperature range is -30°C to 80°C.

Q5: What backlight and power specifications are provided?

A: The display uses a WLED backlight and has a maximum power consumption of 720mW.

Q6: What are the panel's physical dimensions and weight?

A: The outline dimensions are 57.14 × 96.85 mm (H × V), the active area is 51.84 × 86.4 mm (H × V), and the typical weight is 20.0g.

Q7: Is the LQ040Y3DX80B suitable for handheld and PDA applications?

A: Yes. The Sharp LQ040Y3DX80B is specifically listed for handheld and PDA application fields.

LQ040Y3DX80B is a 4" CG-Silicon, LCM Display screen Product from .According to 's product specification sheet,LQ040Y3DX80B display has a resolution of 480(RGB)×800, WVGA 235PPI, Contrast Ratio is 650:1 (Typ.) (TM),Viewing Angle is 85/85/85/85 (Typ.)(CR≥10),Lamp Type is WLED , W/O Driver,Signal Interface is Parallel RGB (1 ch, 8-bit) + SPI , 51 pins FPC,Brightness is 600 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LQ040Y3DX80B after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
