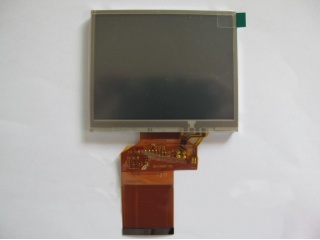

LQ038Q7DB03R 3.8" display modules for Sharp

LQ038Q7DB03R is a 3.8" a-Si TFT-LCD, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,LQ038Q7DB03R display has a resolution of 240(RGB)×320, QVGA 105PPI, Contrast Ratio is 75:1 (Typ.) (TM) 8:1 (Typ.) (RF),Viewing Angle is 40/40/40/40 (Typ.)(CR≥2),Lamp Type is WLED [9S1P] , 10K hours , W/O Driver,Signal Interface is Parallel RGB (1 ch, 6-bit) , 61 pins FPC,Brightness is 90 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LQ038Q7DB03R after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
