LQ035Q1DH02 3.5 inch 320*240 lcd module For Sharp

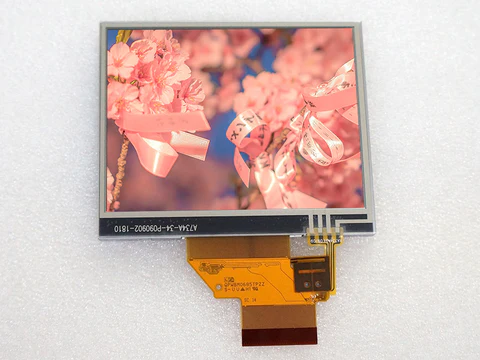

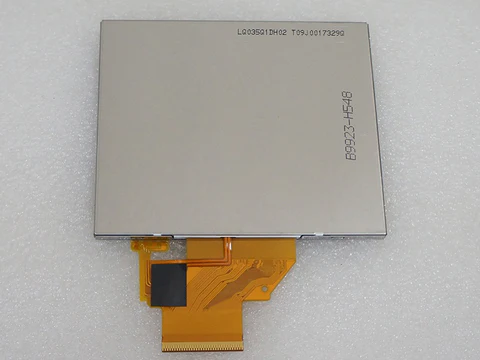

LQ035Q1DH02 is a 3.5" a-Si TFT-LCD, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,LQ035Q1DH02 display has a resolution of 320(RGB)×240, QVGA 115PPI, Contrast Ratio is 300 : 1 (Typ.) (TM),Viewing Angle is 45/45/20/55 (Typ.)(CR≥10),Lamp Type is WLED [7S1P] , W/O Driver,Signal Interface is Parallel RGB (1 ch, 6-bit) + SPI , 67 pins FPC,Brightness is 400 cd/m2 (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LQ035Q1DH02 after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
