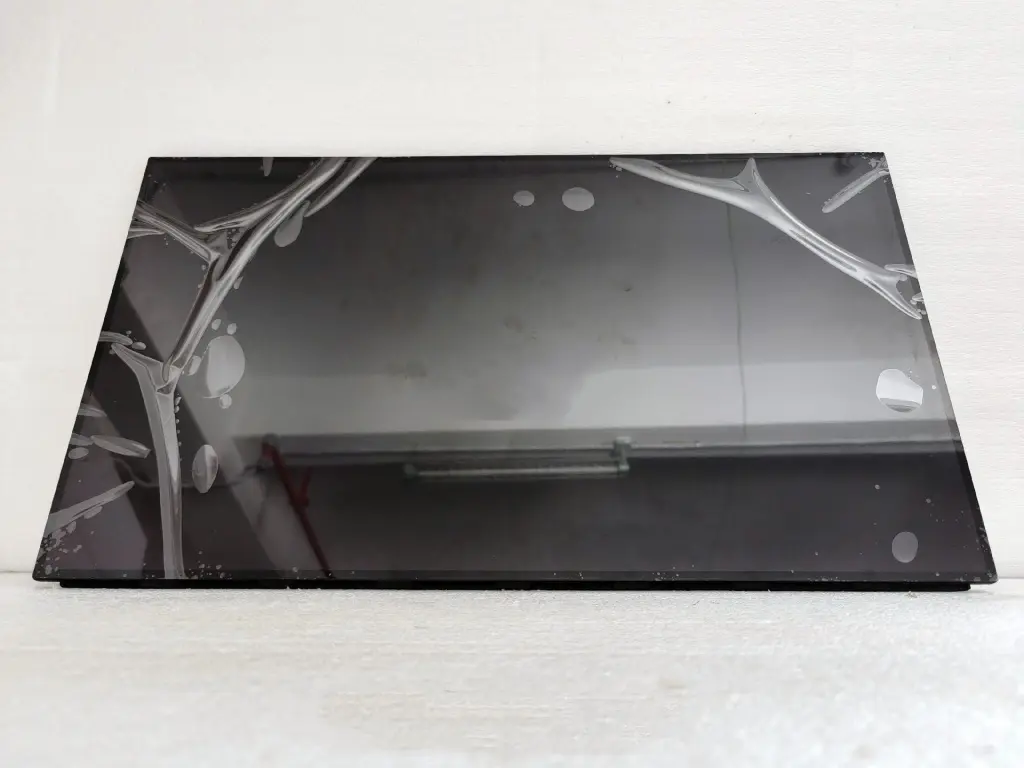

LM270WQ5-SSB3  LG Display  27 inch  lcd display screens
LM270WQ5-SSB3 LG Display 27 inch lcd display screens
Price: $215.00
$210.00/ piece
Add to cart
LM270WQ5-SSB3  LG Display
LM270WQ5-SSB3  LG Display
LM270WQ5-SSB3  LG Display
LM270WQ5-SSB3  LG Display

LM270WQ5-SSB3 LG Display 27 inch lcd display screens

Price: $215.00
$210.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LM270WQ5-SSB3 LG Display 27 inch lcd display screens

Product Information Product Specifications
Model:
LM270WQ5-SSB3
Brand:
LG
Application:
Industrial
Size:
27"
Resolution:
2560*1440
Brightness:
350
Contrast Ratio:
1000:1
Viewing Angle:
89/89/89/89
Lamp Type:
WLED ,
Signal Interface:
92 pins
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60
Active Area:
596.736×335.664
Outline:
608.6×348.3×15.3
Storage Temp:
-20 ~ 60 °C
Operating Temp:
0 ~ 50 °C
Support Color:
16.7M 100% sRGB
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
125
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
6.500 KG
Overview
LM270WQ5-SSB3 is a 27-inch AH-IPS a-Si TFT-LCD module developed by LG Display. This widescreen panel features native QHD resolution 2560(RGB)×1440 with standard 16:9 landscape aspect ratio, adopting transmissive normally black display mode, side-edge WLED backlight and 92-pin 4-channel 8-bit LVDS interface.
This panel is widely applied in professional desktop monitors, graphic design displays, all-in-one PCs and high-end commercial display equipment. It delivers symmetrical ultra-wide viewing angles, stable color performance and anti-glare matte surface. All technical parameters are extracted from official LG Display datasheet for monitor refurbishment, screen replacement and hardware integration verification.

Core Technical Specifications


Parameter ItemSpecification
Model NumberLM270WQ5-SSB3
ManufacturerLG Display
Diagonal Size27.0 Inch
Display Technologya-Si TFT-LCD, AH-IPS, Transmissive, Normally Black
Native Resolution2560(RGB) × 1440 (QHD), 108 PPI
Aspect Ratio16:9 (Landscape)
Pixel ArrangementRGB Vertical Stripe
Active Area596.736 mm (W) × 335.664 mm (H)
Outline Dimension608.8 × 355.4 × 16.6 mm (W×H×D)
Typical Brightness350 cd/m²
Contrast Ratio1000:1 (Typ.)
Viewing Angle (CR≥10)89°/89°/89°/89° (L/R/U/D), Symmetric Full View
Response Time14 ms (Typ. G to G)
Color Depth8-bit, 16.7M Colors; Color Gamut ~72% NTSC
BacklightEdge-lit WLED, No built-in LED driver, Lifetime: 30,000 Hours
Signal Interface92-Pin 4 Channel 8-bit LVDS
Supply VoltageVDD = 10.0 V (Typ.)
Refresh Rate60 Hz
Surface TreatmentAnti-Glare Matte (Haze 25%), 3H Hard Coating
Operating Temperature0°C ~ +50°C
Storage Temperature-20°C ~ +60°C
Touch FunctionBare panel without touch; capacitive touch overlay optional
Approximate Net Weight~2.1 kg
Production StatusMass Production / Available aftermarket replacement stock

Key Advantages

  1. LG AH-IPS Wide View Technology: Near 178° horizontal & vertical viewing angle, minimal color shift when viewed from any direction, ideal for graphic design and multi-person viewing.

  2. 350 cd/m² Standard Brightness + Matte Surface: Effectively suppress indoor ambient light reflection, provides comfortable visual experience for long-time office and image editing work.

  3. 4-Channel LVDS Interface: Stable signal transmission, compatible with many mainstream professional monitor driver boards and all-in-one mainboards.

  4. Long Service Life WLED Backlight: Rated 30,000-hour lifespan, supports adjustable brightness via external constant-current LED driver.

  5. Consistent Color Uniformity: Strict optical sorting, suitable for professional image processing, commercial display and office monitoring scenarios.

  6. Standard Mechanical Layout: Mature OEM panel for many well-known brand 27-inch QHD monitors, convenient for screen replacement maintenance.

Application Scenarios

27-inch QHD Professional Monitor Screen Replacement

Graphic Design & Photo Editing Display Terminals

Desktop All-In-One PC Displays

Indoor Commercial Digital Signage & Kiosks

Office Multi-screen Monitoring System

Medical Auxiliary Display Equipment

Embedded Simulation & Testing Display Modules

Frequently Asked Questions (FAQ)

Q1: Is LM270WQ5-SSB3 genuine original LG Display LCD panel?
A1: Yes. LM270WQ5-SSB3 is official AH-IPS TFT-LCD module manufactured by LG Display. We supply Grade A tested panels complying with official datasheet specifications.
Q2: What interface does this panel adopt? Can eDP driver boards drive it?
A2: It uses 92-pin 4-channel 8-bit LVDS interface. It cannot be driven directly by eDP controller boards; a matched LVDS driver board is required.
Q3: Can LM270WQ5-SSB3 interchange with LM270WQ5-SSA1 / SSB1 / SSC1?
A3: Same size and resolution, but differences exist in FPC pin definition, timing parameters and backlight circuit. Direct replacement without pin-to-pin and timing verification is not recommended.
Q4: Does this module integrate built-in WLED driver circuit?
A4: No built-in LED driver. An external constant-current LED driver circuit is required for power supply and brightness adjustment.
Q5: Does this LCD panel come with touch screen?
A5: Standard bare LCD module has no built-in touch. Projected capacitive touch overlay can be bonded according to project requirements.
Q6: Is it suitable for 7×24 hours continuous operation?
A6: Designed for indoor continuous usage within 0°C ~ +50°C. For long-term 7×24-hour operation, proper ventilation and heat dissipation design are recommended.
Q7: Matte or glossy surface?
A7: Standard version is anti-glare matte surface with 3H hard coating. Glossy variant is unavailable for this model.
