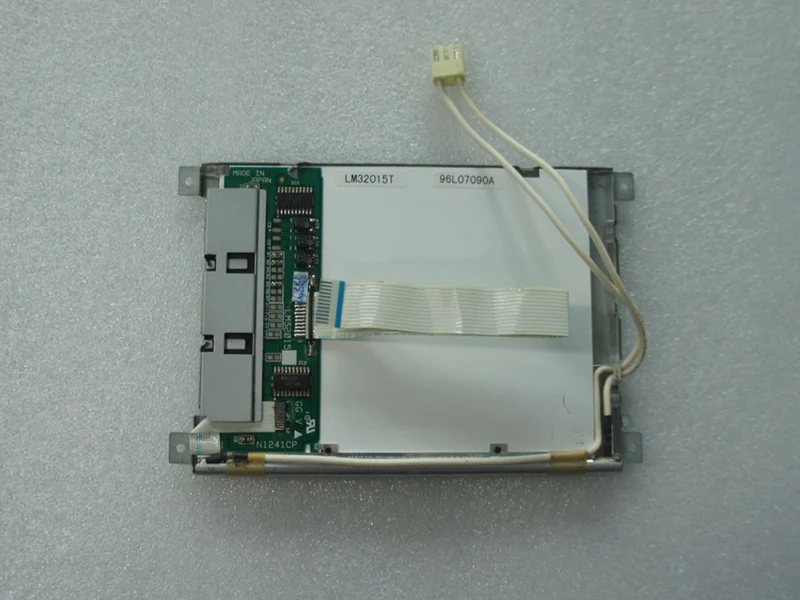

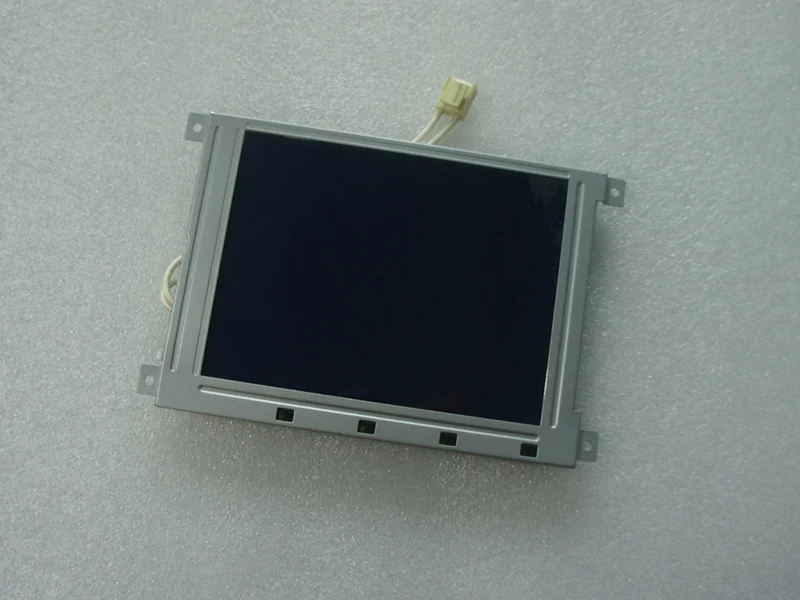

LM32015T Sharp 5.7inch 320×240 STN-LCD Display Screen
Product Overview
Full Model: LM32015T
Manufacturer: Sharp (Japan classic industrial STN LCD series)
Size: 5.7-inch landscape monochrome graphic LCD module
Resolution: 320(H) × 240(V) QVGA, 4:3 aspect ratio
Panel Technology: STN-LCD, Negative Blue Mode (black text on blue background)
Backlight: Built-in CCFL cold cathode fluorescent lamp
Signal Interface: 4-bit parallel CMOS FPC interface
Stock Status: Brand new original Grade A modules, full dot & contrast aging test before shipment; bare LCD only (touch sold separately)
Compatible Replacement Model: LM32019T (same mechanical outline & pin definition, minor brightness difference)
Full Technical Specification Table
| Category | Standard Parameter |
|---|---|
| Basic Display Info | Diagonal: 5.7 inchResolution: 320×240 monochrome graphicPixel Pitch: 0.360 × 0.360 mmActive View Area: 115.17 mm (W) × 86.37 mm (H)Display Mode: STN Negative Blue (dark blue background, white/black graphics) |
| Mechanical Dimensions | Overall Outline: Metal mounting frame with 4-corner fixed holesNet Weight: ~420g complete moduleSurface Polarizer: Hard coating 3H scratch resistance |
| Optical Performance | Typical Brightness: 100 cd/m²Static Contrast Ratio: 6:1Viewing Angle (CR≥10): L/R 40°, U 25°, D 40°Response Time: 250ms typical (STN characteristic slow response) |
| Electrical Interface | Connector: Side-mounted multi-pin FPC 4-bit parallel data busLogic Operating Voltage: DC 5V standard industrial CMOSBacklight Input: AC high voltage CCFL inverter inputTotal Typical Power Consumption: 920mW (lit mode) |
| Backlight System | Light Source: Single CCFL tube side backlightLamp Lifespan: ≥30,000 hours to half brightnessDimming Control: Adjust via inverter analog voltage |
| Environmental Rating | Operating Temperature: -10 ℃ ~ +60 ℃ industrial standardStorage Temperature: -20 ℃ ~ +70 ℃Humidity: 10% ~ 90% RH non-condensing |
| Compliance Certifications | RoHS, CE industrial automation equipment standard |
Maintenance spare parts for Sharp 5.7-inch STN monochrome industrial LCD series
